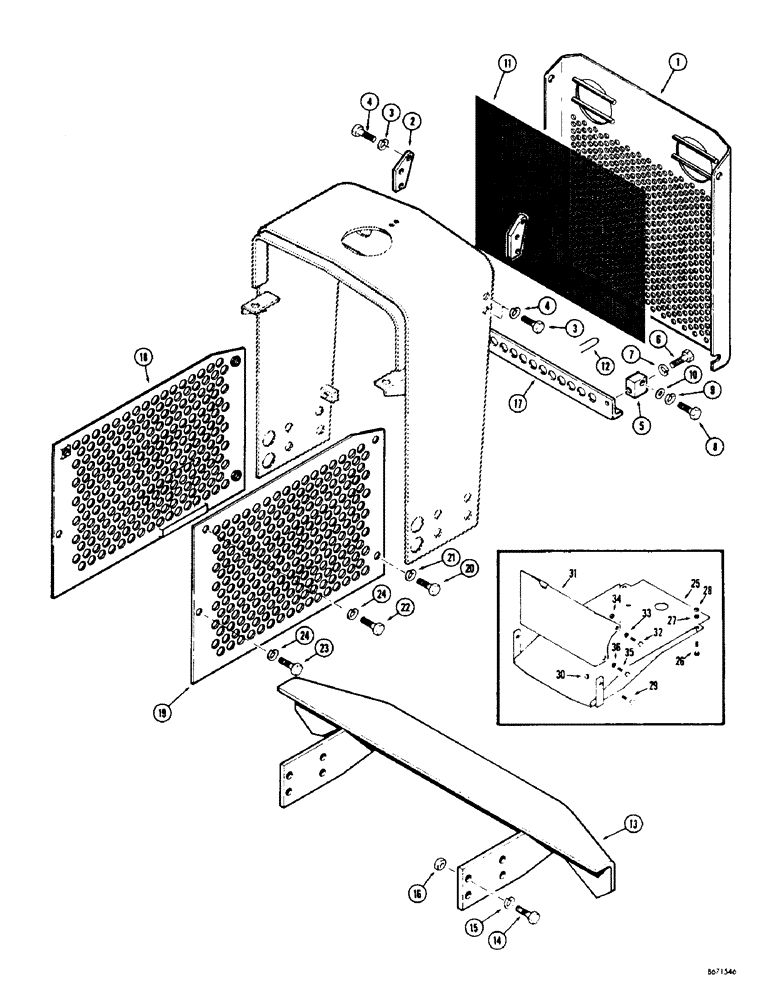

Запчасти Case 310G (138) - FORESTRY ATTACHMENTS (05) - UPPERSTRUCTURE CHASSIS

1

D33495

GRILLE - radiator (Use on drawbar and dozer models except power angle-tilt dozer)

1шт.

2

D33548

BRACKET - grille

2шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

D33492

BLOCK - mounting, L.H.

1шт.

D33493

BLOCK - mounting, R.H.

1шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

195-33

WASHER,1/2"

- flat () 1/2"

2шт.

11

D33494

SCREEN - grille

1шт.

12

R14078

ELECTRICAL WIRE

WIRE - screen mounting (No. 20 x 18-1/4" long)

6шт.

13

D32133

BUMPER - use on drawbar models only

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

8шт.

15

92-8

LOCK WASHER,1/2"

8шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

17

D31502

CROSSBAR - radiator guard

1шт.

18

D30483

GUARD - brush, side (L.H.) Use on drawbar models only

1шт.

19

D30480

GUARD - brush, side (R.H.) Use on drawbar models only

1шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

D21130

GUARD - transmission (Use on all models except power angle-tilt dozer or backhoe models)

1шт.

26

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2-1/2"

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

29

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

30

25-1012

NUT,3/4"-10, G5

2шт.

31

D21408

GUARD - transmission, rear (Use on drawbar and dozer models without backhoe)

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

35

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
