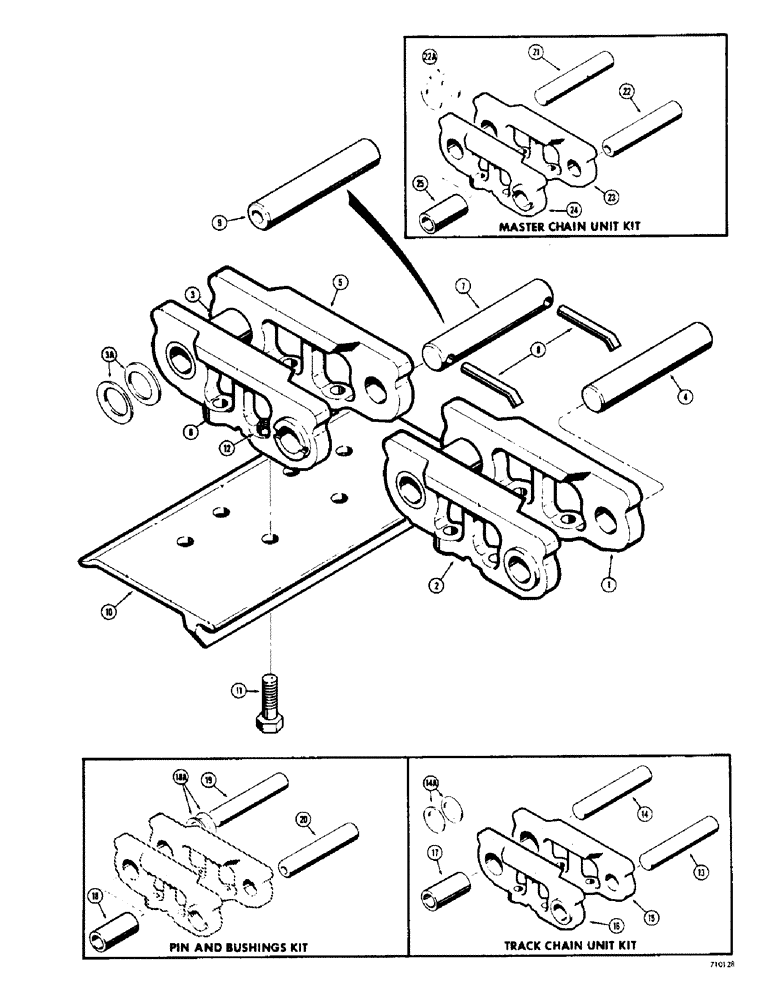

Запчасти Case 310G (124) - TRACK CHAIN (04) - UNDERCARRIAGE

5482

CHAIN ASSEMBLY - 16 unit, non- sealed track (One per side) Use D48671 chain

2шт.

D48671

CHAIN (AG)

CHAIN ASSEMBLY - 16 unit, sealed track

2шт.

D11810

CHAIN ASSEMBLY - 17 unit, non-sealed track (One per side) Use D48670 chain

2шт.

D48670

TRACK CHAIN

CHAIN ASSEMBLY - 17 unit, sealed track

2шт.

1

30638

X

LINK - track chain (R.H.) When stock is exhausted, use D43909 link for service

16шт.

1

D43909

DRAG LINK

LINK - track chain (R.H.)

17шт.

2

R41049

DRAG LINK

LINK - track chain (L.H.) When stock is exhausted, use D43908 link for service

16шт.

2

D43908

LINK

- track chain (L.H)

17шт.

3

NLS

NO LONGER SERVICED

- non-sealed track (Use D48669) bushing and 4 - D48668 seals)

17шт.

3

D48669

BUSHING

- sealed track

17шт.

3a

D48668

SEALING WASHER

SEAL - washer, sealed track

68шт.

4

32831

PIN

- track, standard

16шт.

5

R41050

LINK

- master, R.H. (When stock is exhausted, use D43909 link for service)

1шт.

6

33286

LINK

- master, L.H. (When stock is exhausted, use D43908 link for service)

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - master (Use D41582 pin or D21012 pin kit)

1шт.

8

CASCASCASCASCAS32995

PIN - lock, master (Used with D33285 and D33286 master links only) When stock is exhausted, use D41582 pin for service

2шт.

9

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - master, lock (Press type)

1шт.

10

REF

INSTRUCTION

SHOE - track (See figures 128 and 130 for shoes)

66шт.

11

D41490

BOLT

- special

264шт.

12

D29712

SPECIAL NUT

- special

264шт.

5481

CHAIN ASSEMBLY - 15 unit, non-sealed track (One per side) Use D48672 chain, used on 36" guage models only

2шт.

D48672

CHAIN (AG)

CHAIN ASSEMBLY - 15 unit, sealed track, used on 36" guage models only

2шт.

5482

CHAIN ASSEMBLY - 16 unit, non-sealed track (One per side) Use D48671 chain, used on 36" guage models only

2шт.

D48671

CHAIN (AG)

CHAIN ASSEMBLY - 16 unit, sealed track, used on 36" guage models only

2шт.

1

30638

X

LINK - track chain (R.H.) When stock is exhausted, use D43909 link for service, used on 36" guage models only

15шт.

1

D43909

DRAG LINK

LINK - track chain (R.H.), used on 36" guage models only

16шт.

2

R41049

DRAG LINK

LINK - track chain (L.H.) When stock is exhausted, use D43908 link for service, used on 36" guage models only

15шт.

2

D43908

LINK

- track chain (L.H.), used on 36" guage models only

16шт.

3

32830

BUSHING

- non-sealed track (Use D48669 bushing and 4 - D48668 seals), used on 36" guage models only

16шт.

3

D48669

BUSHING

- non-sealed track, used on 36" guage models only

16шт.

3a

D48668

SEALING WASHER

SEAL - washer, sealed track, used on 36" guage models only

64шт.

4

32831

PIN

- track, standard, used on 36" guage models only

15шт.

5

R41050

LINK

- master, R.H. (When stock is exhausted, use D43909 link for service), used on 36" guage models only

1шт.

6

33286

LINK

- master, L.H. (When stock is exhausted, use D43908 link for service), used on 36" guage models only

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - master (Use D41582 pin or D21012 pin kit), used on 36" guage models only

1шт.

8

CASCASCASCASCAS32995

PIN - lock, master (Use with D33285 and D33286 master links only) When stock is exhausted, use D41582 pin for service, used on 36" guage models only

2шт.

9

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - master, lock (Press type), used on 36" guage models only

1шт.

10

REF

INSTRUCTION

SHOE - track (See figures 128 and 130 for shoe), used on 36" guage models only

62шт.

11

D41490

BOLT

- special, used on 36" guage models only

248шт.

12

D29712

SPECIAL NUT

- special, used on 36" guage models only

248шт.

D21014

KIT

- chain unit, non-sealed track (Use D48935 kit)

62шт.

D48935

DRAG LINK

KIT - chain unit, sealed track

62шт.

13

32831

PIN

- track, standard, chain unit kit

1шт.

14

32836

PIN

- track, service (.003" oversize), chain unit kit

1шт.

14a

D48668

SEALING WASHER

SEAL - washer, sealed track, chain unit kit

8шт.

34571

KIT

UNIT - chain, non-sealed track (Use D49179 unit and 8 - D48668 seals)

1шт.

D49179

LINK

UNIT - chain, sealed track, chain unit kit

1шт.

15

D43909

DRAG LINK

LINK - track chain (R.H.), unit kit

1шт.

16

D43908

LINK

- track chain (L.H.), unit kit

1шт.

17

32830

BUSHING

- non-sealed track only, chain unit kit

1шт.

17

D48669

BUSHING

- sealed track only, chain unit kit

1шт.

D11884

KIT

- pin and bushing, non-sealed track (All models except 36" gauge) Use D38934 kit

1шт.

D48934

PIN

KIT - pin and bushing, sealed track (Use on all models)

1шт.

18

32830

BUSHING

- non-sealed track chain, pin kit

66шт.

18

D48669

BUSHING

- sealed track chain, pin kit

66шт.

18a

D48668

SEALING WASHER

SEAL - washer, sealed track chain, pin & bushing kit

264шт.

19

32836

PIN

- track, service (.003" oversize), Pin & bushing kit

62шт.

20

C43537

PIN - track, master (.003" oversize), pin & bushing kit

4шт.

D11883

KIT - pin and bushing, 36" gauge (Use D48934 kit)

1шт.

18

NLS

NO LONGER SERVICED

- track, chain, pin kit

62шт.

19

32836

PIN

- track, service (.003" oversize), bushing kit

58шт.

20

C43537

PIN - track master (.003" oversize), bushing kit

4шт.

D21013

KIT

- master track, non-sealed track (Use D48932 kit), chain unit kit

4шт.

D48932

LINK

KIT - master track, sealed track, chain unit

4шт.

21

32836

PIN

- track, service (.003" oversize), master chain unit kit

1шт.

22

D41582

AXLE PIN,25.2mm OD x 132.56mm L

PIN - track, master, chain unit kit

1шт.

22a

D48668

SEALING WASHER

SEAL - washer, sealed track, master chain unit kit

8шт.

34571

KIT

UNIT - master non-sealed track (Use D49179 unit and 8 - D48668 seales), chain unit kit

1шт.

D49179

LINK

UNIT - master, sealed track, chain unit kit

1шт.

23

D43909

DRAG LINK

LINK - track chain (R.H.), master unit kit

1шт.

24

D43908

LINK

- track chain (L.H.), master unit kit

1шт.

25

32830

BUSHING

- non-sealed track, master chain unit kit

1шт.

D21012

PIN

KIT - master, pin

4шт.

7

NSS

NOT SOLD SEPARAT

PIN - master kit

1шт.

8

CASCASCASCASCAS32995

PIN - lock, master kit

1шт.
