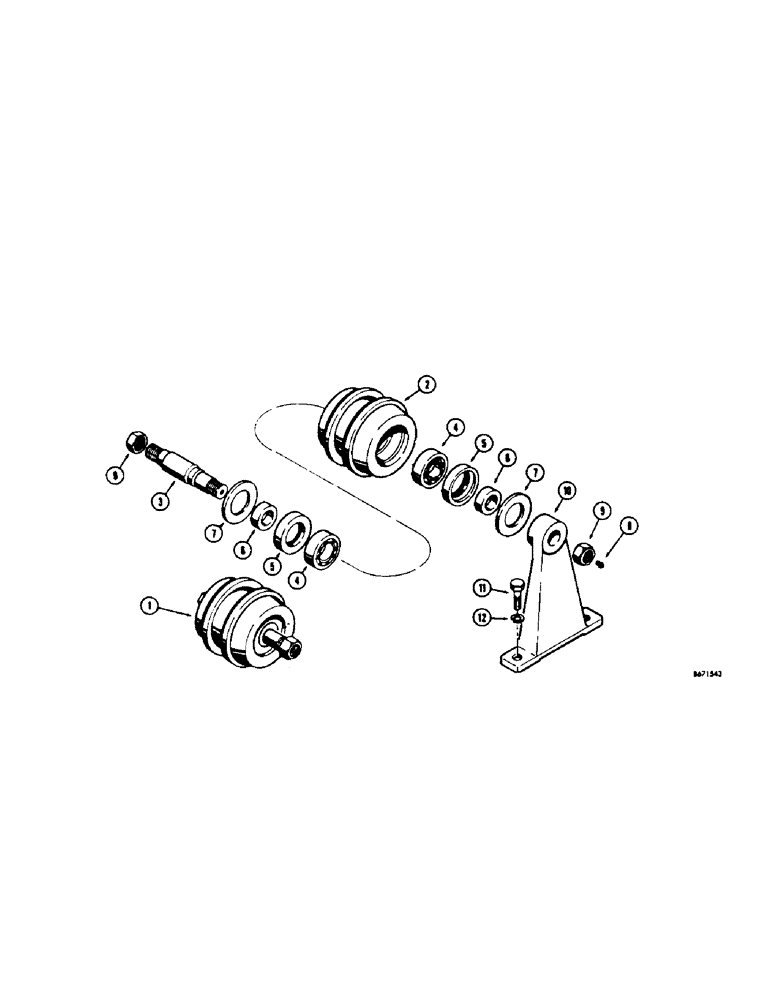

Запчасти Case 310G (122[2]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

1

D11664

CARRIER

ROLLER - track carrier, complete

2шт.

2

31163

ROLLER

HUB - track carrier roller

1шт.

D11585

ROLLER

KIT - service, track carrier roller

1шт.

3

30707

SHAFT

- track carrier roller

1шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

2шт.

5

D29138

OIL SEAL

SEAL - oil, 4 lip

2шт.

6

D29133

SPACER

- bearing

2шт.

7

D29134

SHIELD

- bearing

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

2шт.

10

30718

BRACKET

- support, track carrier roller

2шт.

11

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
