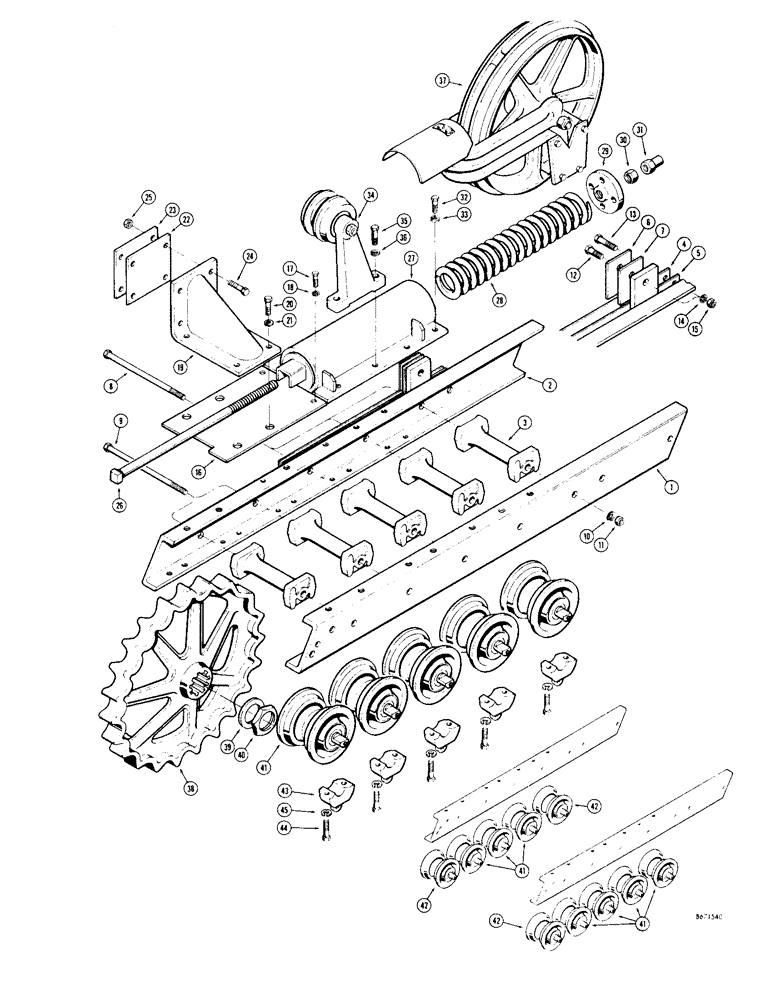

Запчасти Case 310G (116) - TRACK FRAME AND RECOIL SYSTEM (04) - UNDERCARRIAGE

1

D29051

CHANNEL - track, R.H. outer

1шт.

D29052

CHANNEL - track, L.H. outer

1шт.

2

D29049

CHANNEL - track, R.H. inner

1шт.

D29050

CHANNEL - track, L.H. inner

1шт.

3

NLS

NO LONGER SERVICED

SPACER - track channel

10шт.

4

D30050

SHIM,.0747" Thk

Track channel to side plate .0747" Thk

1шт.

5

D30051

SHIM,.1875" Thk

Track channel to side plate .1875" Thk

1шт.

6

D30052

SHIM,.0747" Thk

Track channel to side plate .0747" Thk

1шт.

7

D30053

SHIM,.1875" Thk

Track channel to side plate .1875" Thk

1шт.

8

14-12200

BOLT,Hex, 3/4" - 16 x 12-1/2", Gr 5

HHCS - 3/4" - 16 NF x 12-1/2"

6шт.

9

D23459

HHCS - special

4шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

10шт.

11

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF)

10шт.

12

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

13

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

16

D29062

PAN - mud, track frame

2шт.

17

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

D29059

BRACKET - mounting, track frame

2шт.

20

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4"

8шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

22

D29759

SHIM,.0747" Thk

Mounting bracket .0747" Thk

1шт.

23

D29758

SHIM,.1875" Thk

Mounting bracket .1875" Thk

1шт.

24

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3"

8шт.

25

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" -16 NF)

8шт.

26

D20845

ADJUSTMENT SCREW

- track adjusting

2шт.

27

D29057

HOUSING - recoil spring

2шт.

28

D39498

SPRING

- recoil

2шт.

29

D20844

NUT

PLATE - tension adjusting

2шт.

30

25-1416

NUT,Jam, 1"-8, G5

- hex., lock (1" - 8 NC)

2шт.

31

D20843

NUT,1" - 8

- track adjusting

2шт.

32

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

34

REF

INSTRUCTION

TRACK CARRIER ROLLER GROUP - complete (Parts list figure 122)

2шт.

35

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

37

REF

INSTRUCTION

FRONT IDLER WHEEL GROUP - complete (Parts list figure 120)

2шт.

38

D46989

SPROCKET ASSY.

SPROCKET - drive (Standard)

2шт.

38

D46990

SPROCKET - drive, snow (Optional)

2шт.

39

D29125

WASHER,57.94mm ID x 114.3mm OD x 1.59mm Thk

- keeper, special

2шт.

40

D29126

LOCK NUT

- hex., lock

2шт.

41

D31698

ROLLER

TRACK ROLLER ASSEMBLY - complete (10 used on drawbar and dozer models, 8 used on loader models, and 6 used on backhoe models) Parts list figure 122

10шт.

42

D33213

ROLLER

TRACK ROLLER ASSEMBLY - complete (2 used on loader models and 4 used on backhoe models) Parts list figure 122

2-4шт.

43

51200225

CAP

- track roller shaft retainer

20шт.

44

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2"

40шт.

45

92-8

LOCK WASHER,1/2"

40шт.
