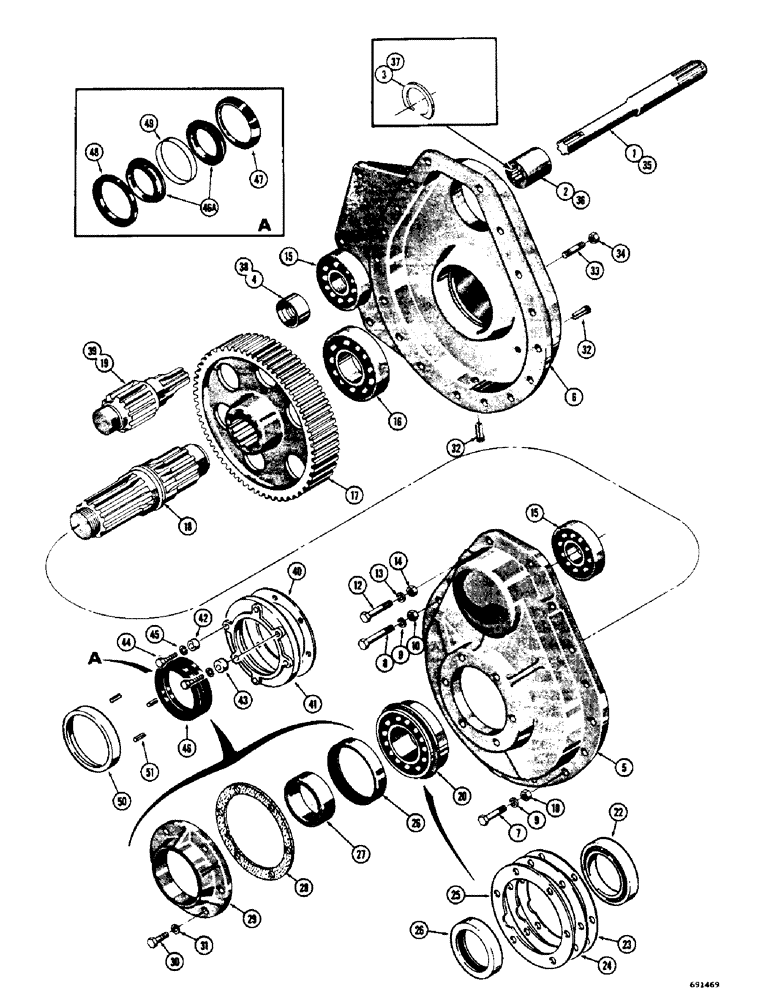

Запчасти Case 310G (108) - FINAL DRIVE AND AXLE SHAFT (03) - TRANSMISSION

1

32635

SHAFT - axle (36" gauge only) For service use D15274 kit

2шт.

1

11830-420

SHAFT - axle (42" gauge only) See D15289 kit

2шт.

1

D31519

SHAFT

- axle (48" gauge only)

2шт.

1

D50193

SHAFT - axle (60" gauge only)

2шт.

1

D50194

SHAFT - axle (72" gauge only)

2шт.

2

32634

COUPLING

- final drive (36" gauge only) For service use D15274 kit

2шт.

2

D32721

COUPLING

- final drive (48" gauge only)

2шт.

2

51200026

COUPLING

- final drive (42", 60" and 72" gauge only)

2шт.

3

D32722

RING, SNAP

RING - retaining

2шт.

4

D32723

SPACER

- final drive

2шт.

5

D24658

HOUSING

- final drive, outer

2шт.

6

D29737

HOUSING - final drive, inner (L.H.)

1шт.

D29736

HOUSING - final drive, inner (R.H.)

1шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (42" and 48" gauge)

18шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (36" gauge)

14шт.

7a

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

(36" gauge) Not shown Hex, 7/16"-14 x 1 3/4", G5

4шт.

8

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

HHCS - 7/16" - 14 NC x 2"

10шт.

9

92-7

LOCK WASHER,7/16"

28шт.

10

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

28шт.

11

RESERVED

1шт.

12

D24688

BOLT

BOLT - special

6шт.

13

92-8

LOCK WASHER,1/2"

6шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

15

40002

BALL BEARING

- ball, final drive pinion

4шт.

16

40003

BEARING

- ball, final drive shaft (Inner)

2шт.

17

CAS11833

GEAR WHEEL

GEAR - final drive

2шт.

18

CAS11853

SHAFT

- final drive

2шт.

19

D31514

SHAFT

- pinion, final drive (48" gauge)

2шт.

19

51200027

SHAFT

- pinion, final drive (36", 42", 60" and 72" gauge) For 36" gauge service with D15274 kit

2шт.

20

40039

HINGE

BEARING - ball, final drive shaft (Outer) For service use D14979 kit

2шт.

D14979

BEARING

KIT - bearing

2шт.

22

D46981

BALL BEARING

BEARING - ball, final drive shaft (Outer)

1шт.

23

D46983

SHIM,.005" Thk

1шт.

24

D46984

SHIM

- .010"

1шт.

25

D46985

SHIM,.020" Thk

1шт.

D46986

SHIM,.002" Thk

If used .002" Thk

1шт.

26

D29517

SEAL

- oil, final drive shaft

2шт.

27

51200024

SPACER

- final drive shaft

2шт.

28

CAS11828

GASKET

- seal retainer

2шт.

29

11827

RETAINER

- seal, final drive shaft

2шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

31

92-6

LOCK WASHER,3/8"

12шт.

32

D21396

PLUG, DRAIN

PLUG - magnetic, hex. socket head (1/2" NPT)

4шт.

33

R29874

STUD

- mounting, final drive

16шт.

34

231-46110

LOCK NUT,5/8"-18, GB

NUT - lock (5/8" - 18 NF)

16шт.

D15274

KIT

- shaft (36" gauge only) 10 spline

1шт.

D15289

SHAFT

KIT - shaft (42" gauge only) service option

1шт.

35

D48104

SHAFT

- axle, final drive (36" gauge only)

1шт.

35

D48274

SHAFT - axle, final drive (42" gauge only)

1шт.

36

D48103

COUPLING

- final drive, 36" gauge only

1шт.

37

D32722

RING, SNAP

RING - retaining

1шт.

38

D32723

SPACER

- final drive

1шт.

39

D31514

SHAFT

- pinion, final drive

1шт.

D14190

SEAL

KIT - face seal, service option (10 spline)

1шт.

40

CAS11828

GASKET

- seal retainer

1шт.

41

D43356

RETAINER

- seal

1шт.

42

D43408

SPACER

- guard

5шт.

43

D43608

SPACER

- guard

1шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

45

92-6

LOCK WASHER,3/8"

6шт.

46

D43411

SEAL

- face

1шт.

46a

D43411

SEAL

BODY - seal

1шт.

D44075

SEAL

KIT - seal

1шт.

47

NSS

NOT SOLD SEPARAT

SEAL - rubber, inner

1шт.

48

NSS

NOT SOLD SEPARAT

SEAL - rubber, outer

1шт.

49

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

50

D43410

RETAINER

- seal, outer

1шт.

51

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

3шт.
