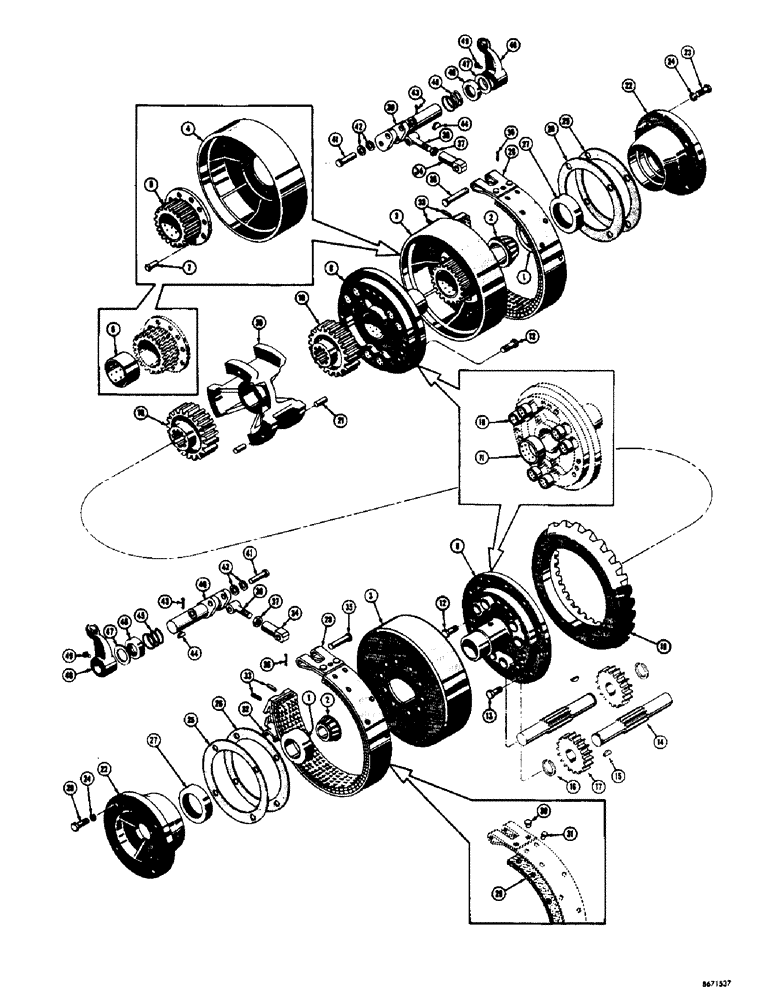

Запчасти Case 310G (106) - DIFFERENTIAL (03) - TRANSMISSION

D38527

TRANSMISSION

AND DIFFERENTIAL - complete (Transmission assembly listed on figures 102 and 104)

1шт.

D20533

DIFFERENTIAL AND DRUM ASSEMBLY - complete

1шт.

1

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing

2шт.

2

40465

ROLLER BEARING,1.75" ID x 1"

CONE - bearing

2шт.

3

D20425

PINION

DRUM, GEAR AND BUSHING ASSEMBLY - brake

2шт.

4

NLS

NO LONGER SERVICED

DRUM - brake

1шт.

5

D20426

GEAR

AND BUSHING ASSEMBLY - brake drum

1шт.

6

11288

BEARING

BUSHING - gear

1шт.

7

14934

RIVET

- brake drum

10шт.

8

NLS

NO LONGER SERVICED

HOUSING - differential, R.H. (Includes ref. no. 10 and no. 11)

1шт.

9

11410

HOUSING - differential, L.H.

1шт.

10

CASCAS11414

BUSHING - pinion shaft

6шт.

11

11415

BEARING

BUSHING - sun gear

1шт.

12

CAS11424

SCREW

BOLT - special

12шт.

R10831

ELECTRICAL WIRE

LOCKWIRE - center member bolt (Not illustrated)

6шт.

13

NLS

NO LONGER SERVICED

BOLT - special (Ring gear)

12шт.

14

D20422

SHAFT

- pinion

6шт.

15

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

6шт.

16

11455

RING, SNAP

RING - retaining, planetary gear

6шт.

17

D20421

PLANETARY GEAR

GEAR - planetary

6шт.

18

R25584

GEAR WHEEL

GEAR - ring

1шт.

19

D20423

PINION

GEAR - sun

2шт.

20

D30698

HOUSING

- differential center member

1шт.

21

CASCAS11426

PIN - dowel

6шт.

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION - not illustrated (See page 98)

1шт.

22

11425

CARRIER

- bearing, differential

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

24

92-8

LOCK WASHER,1/2"

8шт.

25

CAS11427

SHIM

- bearing carrier (.004" thick)

1шт.

26

11426

SHIM

- bearing carrier (.010" thick)

1шт.

27

D49930

OIL SEAL

SEAL - oil, differential

2шт.

D44419

BAND

KIT - brake band

1шт.

28

NSS

NOT SOLD SEPARAT

BAND ANCHOR AND LINING ASSEMBLY - brake

2шт.

D28974

BAND

KIT - brake lining

1шт.

29

NSS

NOT SOLD SEPARAT

LINING - brake band

2шт.

30

D23567

RIVET - brake band

2шт.

31

D26492

RIVET

- brake band lining

38шт.

32

D28973

SPACER

STRUT - brake

2шт.

33

138-41

LOCK PIN,3/32" x 3/4", Slotted

Pin, , brake strut 3/32" x 3/4", Slotted

4шт.

34

D23382

CLEVIS COUPLING

CLEVIS

2шт.

35

D23384

PIN

- clevis

2шт.

36

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

37

D23383

NUT

- hex., clevis adjusting arm

2шт.

38

D23381

ARM

- clevis adjusting

2шт.

39

D23768

CAM

- brake, L.H.

1шт.

40

D23767

CAM

- brake, R.H.

1шт.

41

D23384

PIN

- clevis

2шт.

42

D23404

WASHER

- clevis pin

6шт.

43

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

44

126-19

WOODRUFF KEY,#11, 3/16" x 7/8"

KEY - no. 11 Woodruff

2шт.

45

11439

SPRING

- brake cam

2шт.

46

A31178

OIL SEAL

SEAL - oil, brake cam

2шт.

47

11440

WASHER

- brake cam

2шт.

48

D23011

LEVER

- outside brake

2шт.

49

D23016

SCREW

- set, brake lever retaining

2шт.

R10831

ELECTRICAL WIRE

LOCKWIRE - brake lever set screw (Not illustrated)

2шт.
