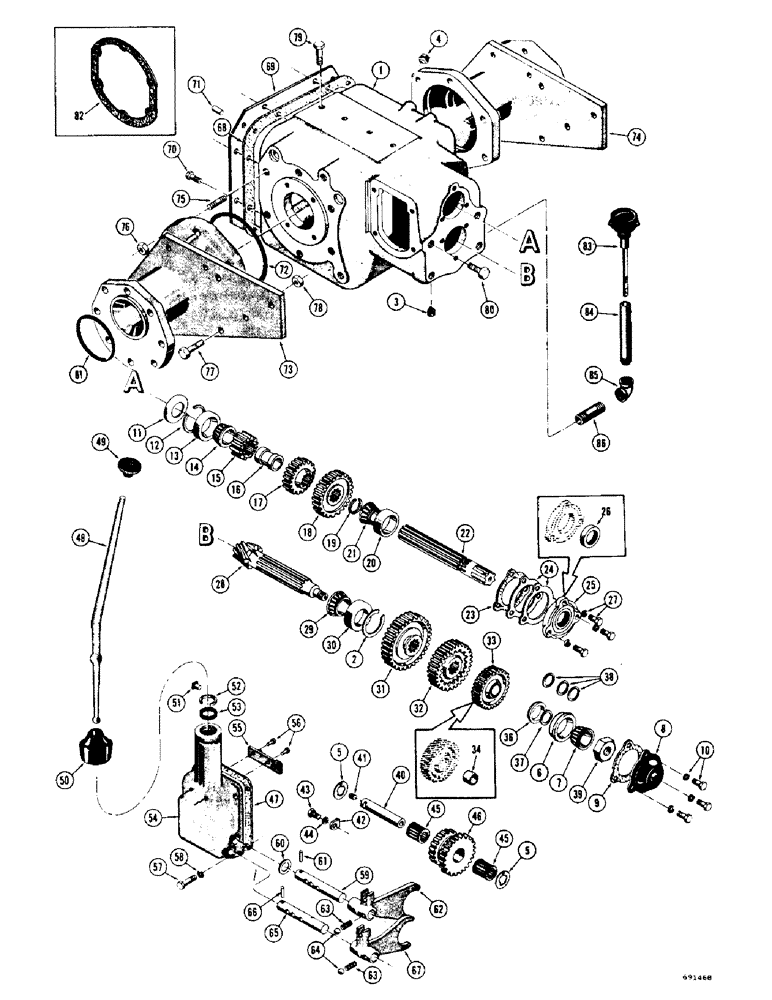

Запчасти Case 310G (104) - D38527 TRANSMISSION, DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION

44

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

45

11450

TAPERED BEARING

BEARING - needle, reverse idler

2шт.

46

NLS

NO LONGER SERVICED

GEAR - reverse idler

1шт.

47

11391

GASKET

- control cover

1шт.

D33506

SHIFTING UNIT

GEAR SHIFT CONTROL ASSEMBLY

1шт.

48

D33480

LEVER

- gear shift

1шт.

49

A26727

BALL

KNOB - gear shift lever

1шт.

50

A57876

COVER

- dust, gear shift lever

1шт.

51

A30294

PIN

- stake, gear shift lever

1шт.

52

11454

RING, SNAP

- retaining, gear shift lever

1шт.

53

CAS11393

WASHER

- pivot, gear shift lever

1шт.

NLS

NO LONGER SERVICED

COVER AND GUIDE ASSEMBLY - control

1шт.

54

NSS

NOT SOLD SEPARAT

COVER - control

1шт.

55

11389

PLATE

- guide, control

1шт.

56

45-414

RIVET,But Hd, 1/4" x 7/8"

- guide plate

2шт.

57

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

58

92-6

LOCK WASHER,3/8"

4шт.

59

11396

ROD

- shift, first and reverse

1шт.

60

D28299

WASHER

- spacer, first and reverse shift fork

1шт.

61

11398

PIN

- lock, shift rod

1шт.

62

11400

FORK TEDDER

FORK - shift, first and reverse

1шт.

63

11403

SPRING

- mesh lock, shift fork

2шт.

64

211-11

BALL,3/8" Dia

- mesh lock, shift fork

2шт.

65

11397

ROD

- shift, second and third

1шт.

66

11399

PIN

- lock, second and third shift rod

1шт.

67

NLS

NO LONGER SERVICED

FORK - shift, second and third

1шт.

68

11429

GASKET

- transmission cover plate

1шт.

69

D21185

PLATE

- cover, transmission

1шт.

70

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

(Apply Loctite to these bolts) See below Hex, 7/16"-14 x 1 1/4", G5, Full Thd

11шт.

71

49882

PIN

- dowel

4шт.

72

A28239

O-RING,0.139" Thk x 5.984" ID, -258, Cl 5, 75 Duro

SEAL - "O" ring, final drive spacer (48" gauge only)

2шт.

73

D43850

SPACER - final drive, R.H. (42" gauge)

1шт.

D29728

SPACER - final drive, R.H. (48" gauge)

1шт.

D29792

X

SPACER - final drive, R.H. (60" gauge)

1шт.

D29794

X

SPACER - final drive, R.H. (72" gauge)

1шт.

74

D43849

SPACER - final drive, L.H. (42" gauge)

1шт.

D29729

SPACER - final drive, L.H. (48" gauge)

1шт.

D29793

SPACER

- final drive, L.H. (60" gauge)

1шт.

D29795

X

SPACER - final drive, L.H. (72" gauge)

1шт.

75

46505

STUD

- final drive spacer

12шт.

76

131-675

LOCK NUT,9/16"-18, GB

NUT - lock (9/16" x 18 NF)

12шт.

77

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

78

35-1012

NUT - hex. (3/4" - 10 NC)

8шт.

79

13-916

BOLT,Hex, 9/16" - 12 x 1", Gr 5

HHCS - 9/16" - 12 NC x 1"

4шт.

80

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

81

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, spacer to final drive housing

2шт.

82

D29309

GASKET

- final drive spacer (60" and 72" gauge only)

2шт.

D38931

FILLER

TRANSMISSION DIPSTICK AND FILLER TUBE KIT

1шт.

83

D38929

DIPSTICK

1шт.

84

D38928

TUBE

- filler

1шт.

85

221-385

ELBOW

- 90 degree, female

1шт.

86

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe

1шт.

B17068

ADHESIVE

LOCTITE - 2 CC tube (Not illustrated)

1шт.
