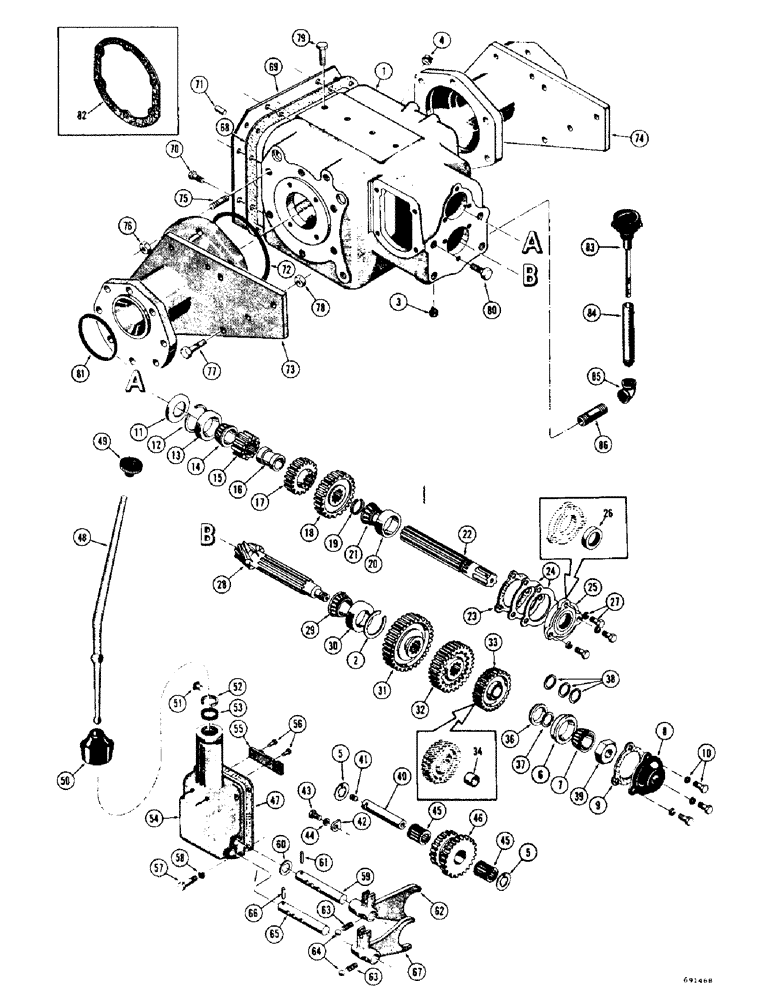

Запчасти Case 310G (102) - D38527 TRANSMISSION, DIFFERENTIAL AND FINAL DRIVE SPACERS (03) - TRANSMISSION

D38527

TRANSMISSION

AND DIFFERENTIAL - complete (Differential assembly listed on figure 106)

1шт.

NLS

NO LONGER SERVICED

TRANSMISSION CASE ASSEMBLY

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - transmission

1шт.

2

11451

RING, SNAP

RING - retaining, countershaft rear bearing

1шт.

3

D23217

X

PLUG - drain, magnetic

2шт.

4

221-16

PLUG,Sq Hd, 1"-11 1/2 NPTF

- filler

1шт.

5

D29626

WASHER

- thrust, reverse idler

2шт.

6

D37370

BEARING CUP,2.6542" OD x 0.625"

CUP - bearing, countershaft

1шт.

7

W9651S

CUP ASSY.

CONE - bearing, countershaft

1шт.

8

D37368

CYLINDER END CAP

CAP - bearing, front (Countershaft)

1шт.

9

D37369

GASKET

- bearing, front (Countershaft)

1шт.

10

23016

CAP

HHCS AND LOCKWASHER

3шт.

11

11371

CUP ASSY.

CUP - oil, mainshaft rear bearing

1шт.

12

11453

TAPERED BEARING

RING - retaining, mainshaft rear bearing

1шт.

13

O4056TS

CUP

- bearing

1шт.

14

A31074

CONE

- bearing

1шт.

15

11363

BALL BEARING

GEAR - mainshaft, low and reverse

1шт.

16

35130

SPACER

- mainshaft gear

1шт.

17

11365

GEAR

- mainshaft, second speed

1шт.

18

11366

GEAR

- mainshaft, constant mesh

1шт.

19

A29978

RING, SNAP

RING - retaining, mainshaft front bearing

1шт.

20

O4056TS

CUP

- bearing

1шт.

21

A31074

CONE

- bearing

1шт.

22

D33873

MAIN SHAFT

MAINSHAFT

1шт.

23

51200023

GASKET

- mainshaft front bearing cap

1шт.

24

11368

SHIM

- mainshaft front bearing cap (.005" thick)

1шт.

11367

SHIM

- mainshaft front bearing cap (.010" thick)

1шт.

D20541

SHIM,.020" Thk

Main shaft front bearing cap .020" Thk

1шт.

D33872

CAP ASSY.

FRONT BEARING CAP ASSMEBLY - mainshaft

1шт.

25

NSS

NOT SOLD SEPARAT

CAP - mainshaft front bearing

1шт.

26

11370

OIL RESERVOIR

SEAL - oil, bearing cap

1шт.

27

23016

CAP

HHCS AND LOCKWASHER

3шт.

28

R25584

GEAR WHEEL

COUNTERSHAFT AND BEVEL PINION - included with differential and drum assembly

1шт.

29

40384

ROLLER BEARING

CONE - bearing

1шт.

30

40385

BEARING,3.375" OD x 0.9375"

CUP - bearing

1шт.

31

11373

BALL BEARING

- countershaft, first and reverse

1шт.

32

11374

GEAR

- sliding, countershaft (Second and third) When stock is exhausted use D37372

1шт.

32

11374GV

DISC

- sliding, countershaft (Second and third) When stock is exhausted use D37372

1шт.

11375

GEAR

AND BUSHING ASSEMBLY - countershaft, third

1шт.

33

NSS

NOT SOLD SEPARAT

GEAR - third

1шт.

34

11376

BUSHING

- third gear

1шт.

35

RESERVED

1шт.

36

11378

BELLEVILLE WASHER

- retaining, countershaft third gear

1шт.

37

D27621

SPACER

WASHER - spacer (.0469" thick)

1шт.

38

D27618

SHIM,.004" Thk

Steel .004" Thk

1шт.

D27619

SHIM,.007" Thk

Steel .007" Thk

1шт.

D27620

SHIM,.010" Thk

Steel .010" Thk

1шт.

39

11380

NUT

- adjusting, countershaft front bearing

1шт.

34592

SHAFT

REVERSE IDLER SHAFT ASSEMBLY

1шт.

40

NSS

NOT SOLD SEPARAT

SHAFT - reverse idler

1шт.

41

34594

X

PLUG - pipe, slotted

1шт.

42

11385

LOCK ASSY

LOCK - reverse idler shaft

1шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.
