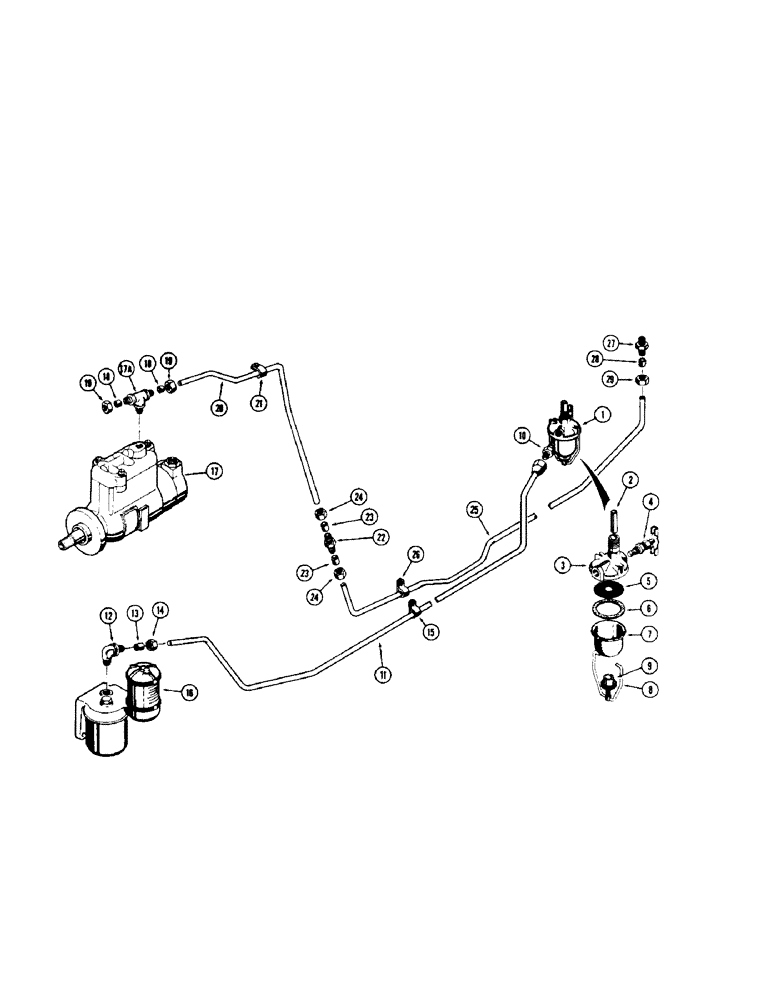

Запчасти Case 310G (052[1]) - FUEL LINES, FUEL PUMP AND STRAINER - DIESEL (02) - FUEL SYSTEM

1

33487

STRAINER ELEMENT

STRAINER - fuel

1шт.

2

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

3

41932

COVER

- strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

41933

BOWL

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - cup, bail

1шт.

10

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - tube, straight

1шт.

11

D31555

TUBE - fuel line, Serial Range: tank-filter

1шт.

12

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- flex tube, 90 degrees

1шт.

13

222-103

SLEEVE,5/16" Tube

- flex tube (5/16")

1шт.

14

222-113

TUBE NUT,9/16"-24

NUT - flex tube (5/16")

1шт.

15

49832

CLAMP

- tube, fuel line

1шт.

16

REF

INSTRUCTION

FILTER ASSEMBLY - complete (Parts list figure 28)

1шт.

17

REF

INSTRUCTION

PUMP - fuel injection (Parts list figure 28)

1шт.

17a

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- male

1шт.

18

222-102

SLEEVE,1/4" Tube

2шт.

19

87017024

TUBE NUT,1/2"-24

NUT - flex tube

2шт.

20

D42102

TUBE - return, fuel (Front section)

1шт.

21

49851

SHIELD

- tube

1шт.

22

222-3

FITTING,1/2"-24 Flex Tube

UNION - flex tube (1/4" tube)

1шт.

23

222-102

SLEEVE,1/4" Tube

2шт.

24

87017024

TUBE NUT,1/2"-24

NUT - flex tube

2шт.

25

D42103

TUBE - return, fuel (Rear section)

1шт.

26

51200321

CLAMP

- tube

1шт.

27

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - flex tube (1/4" tube)

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - flex tube

1шт.
