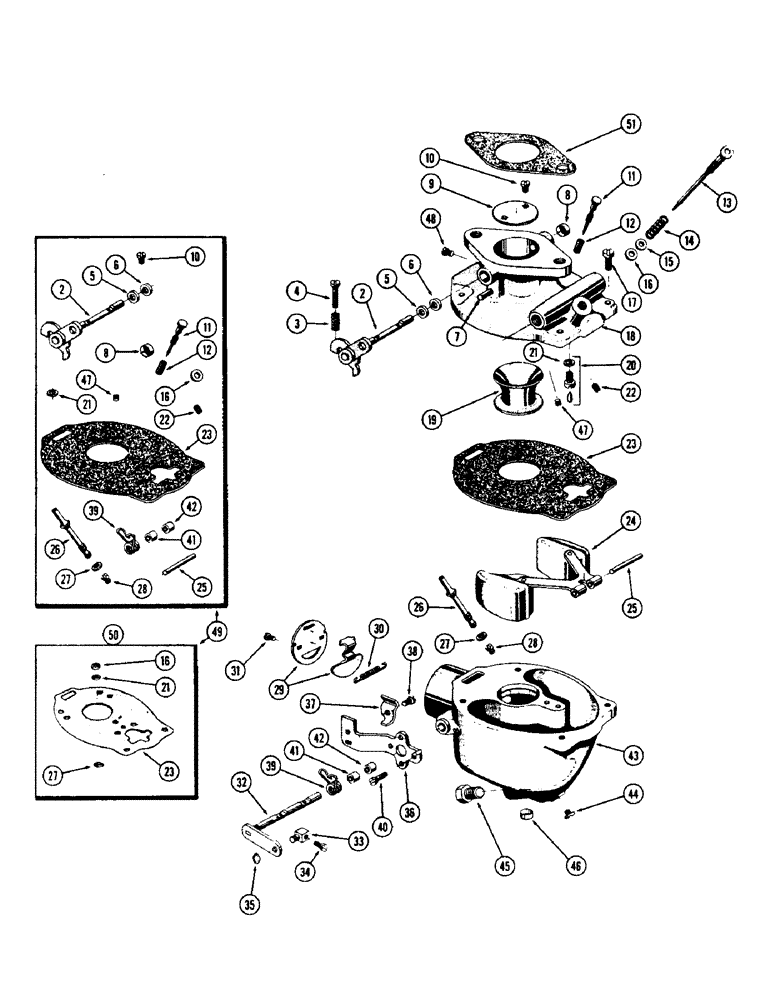

Запчасти Case 310G (046) - CARBURETOR, (148B) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

G45779

CARBURETOR (Marvel-Schebler #TSX-804) (Not illust.)

1шт.

2

B51655

THROTTLE

SHAFT - throttle

1шт.

3

B51742

SPRING

- throttle stop screw

1шт.

4

B51680

SCREW - throttle stop

1шт.

5

B51853

RETAINER

- throttle shaft packing

1шт.

6

B51805

PACKING

- throttle shaft

1шт.

7

B51862

PIN - throttle stop

1шт.

8

B51852

CUP

- throttle shaft

1шт.

9

B51669

PLATE - throttle

1шт.

10

B51685

SCREW

- throttle plate

2шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

12

B51744

SPRING

- idle needle

1шт.

13

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed adjusting

1шт.

14

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

15

B51870

WASHER

- plain, high speed needle

1шт.

16

B51723

GASKET

- high speed needle

1шт.

17

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

18

B59378

BODY - throttle

1шт.

19

B51815

VENTURI

1шт.

20

A30244

SHUT-OFF VALVE

FLOAT VALVE ASSY - (Matched parts)

1шт.

21

B51703

GASKET

- float valve seat

1шт.

22

B51828

JET

- idle

1шт.

23

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

24

B51772

FLOAT

ASSY.

1шт.

25

B51779

SHAFT

- float lever

1шт.

26

B51826

NOZZLE INJECTION

NOZZLE - main

1шт.

27

B51720

GASKET

- main nozzle

1шт.

28

B51839

JET

- power

1шт.

29

B51763

VALVE

FLY ASSY - choker

1шт.

30

B51735

SPRING

- choker fly

1шт.

31

B51685

SCREW

- choker fly

2шт.

32

B51751

SHAFT

- choke

1шт.

33

B51764

PIVOT

SWIVEL - choke

1шт.

34

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

35

B51877

SPLIT PIN

PIN - choke swivel

1шт.

36

B53956

BRACKET - choke

1шт.

37

B51765

CLIP

- choke bracket

1шт.

38

B51687

SCREW -, Serial Range: clip-bracket

1шт.

39

B51741

SPRING - choke return

1шт.

40

B51686

SCREW - choke bracket

1шт.

41

B51854

RETAINER

- choke shaft packing

1шт.

42

B51803

PACKING

- choke shaft

1шт.

43

NSS

NOT SOLD SEPARAT

BOWL - (Order G45779)

1шт.

44

B51700

SCREW

- nozzle hole plug

1шт.

45

B51887

PLUG

- bowl drain

1шт.

46

B51883

STRAINER - fuel

1шт.

47

B51831

JET - economizer

1шт.

48

B51874

PLUG - idle drilling

1шт.

49

B51937

KIT

- carburetor repair

1шт.

50

A30241

GASKET KIT

KIT - gasket

1шт.

51

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.
