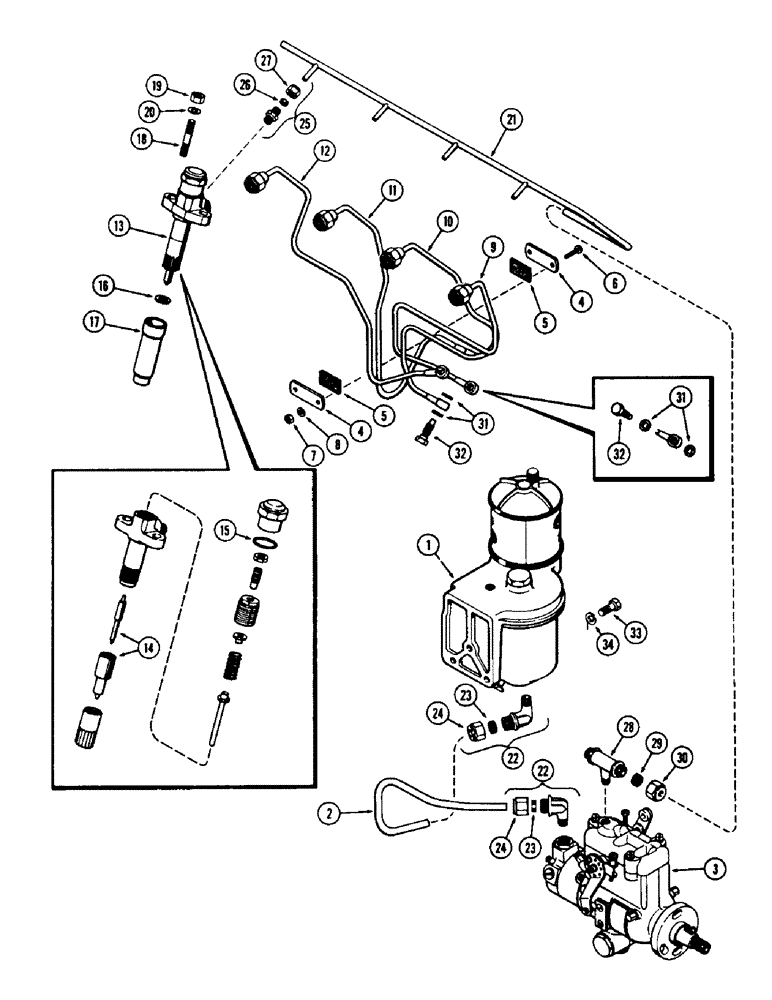

Запчасти Case 310G (026) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE, USED PRIOR TO ENG. SN 2627377 (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A35753
FILTER ASSY. (For repairs see figure 28)
1шт.
2
A36566
TUBE
LINE - fuel, Serial Range: filter-pump
1шт.
3
A35779
PUMP, FUEL INJECTION
PUMP - injection (For repairs see figure 28)
1шт.
4
A27978
CLAMP
- injection tube
2шт.
5
A27980
CUSHION
-, Serial Range: tube-clamp
2шт.
6
173-102
SCREW,Sl Rnd Hd, #10 - 24 x 1"
- #10-24 x 1" rd. hd.
2шт.
7
129-7
NUT,Hex, #10 - 24
- hex. #10-24
2шт.
8
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
9
A35058
TUBE
- pump to #1 injector
1шт.
10
A35059
TUBE
- pump to #2 injector
1шт.
11
A35060
TUBE
- pump to #3 injector
1шт.
12
A35061
TUBE
- pump to #4 injector
1шт.
13
A49056
NOZZLE CAP
INJECTOR ASSY. - fuel
4шт.
14
A35085
NOZZLE CAP
NOZZLE - injector
1шт.
15
G46885
GASKET
- injector cap
1шт.
16
G49068
GASKET
- seat, Serial Range: injector-liner
1шт.
17
G11724
LINER
-, Serial Range: injector-head
4шт.
18
A29431
STUD
-, Serial Range: injector-head
8шт.
19
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
8шт.
20
92-6
LOCK WASHER,3/8"
8шт.
21
A36514
TUBE ASSY.
TUBE - manifold, injector leak-off
1шт.
23
222-104
SLEEVE,3/8" Tube
- 3/8" Tube
1шт.
24
222-114
NUT,5/8"-24
NUT - 3/8" tube
1шт.
25
222-21
FITTING,7/16"-24 x 1/8" NPTF
Leak-off 7/16"-24 x 1/8" NPTF
4шт.
26
222-101
SLEEVE,3/16" Tube
- 3/16" Tube
1шт.
27
222-111
TUBE NUT,7/16" - 24
NUT - 3/16" tube
1шт.
28
222-73
TEE,5/16" Flex Tube Run x 1/8" NPTF Br
- 5/16 x 5/16 x 1/8" P.T.
1шт.
29
222-103
SLEEVE,5/16" Tube
2шт.
30
222-113
TUBE NUT,9/16"-24
NUT - 5/16" tube
2шт.
31
G49407
WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk
WASHER - screw connector
2шт.
32
73613
SCREW
- connector, injection tube
4шт.
33
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
3шт.
34
92-5
LOCK WASHER,5/16"
3шт.
Выбрано товаров: 34
