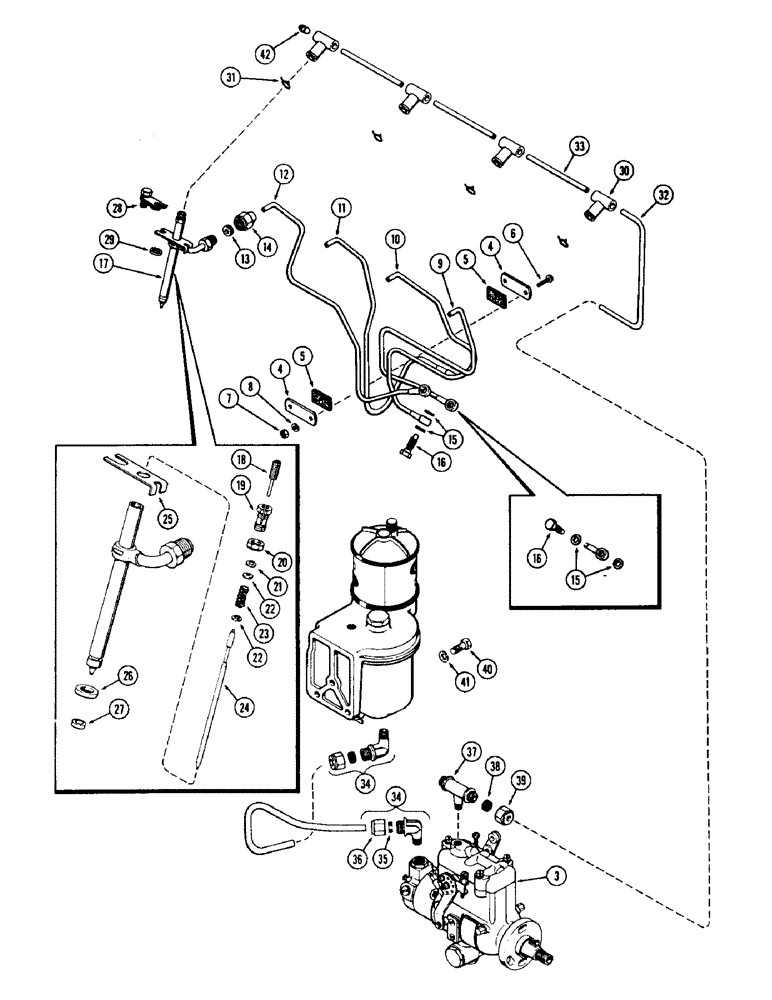

Запчасти Case 310G (024) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE, 1ST USED ENG. SN. 26227377 (02) - FUEL SYSTEM

1

A35735

FILTER

ASSY. - (For repairs see figure 28)

1шт.

2

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

3

A35779

PUMP, FUEL INJECTION

PUMP - injection (For repairs see figure 28)

1шт.

4

A27978

CLAMP

- injection tube

2шт.

4a

A58709

BRACKET

1шт.

Clamps used on later models.

1шт.

5

A27980

CUSHION

-, Serial Range: tube-clamp

2шт.

6

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

7

129-7

NUT,Hex, #10 - 24

- hex #10-24

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

A41391

TUBE

ASSY. - inj. pump to #1 cyl. (Incl. items 13, 14, & 15)

1шт.

10

A41392

TUBE

ASSY. - inj. pump to #2 cyl. (Incl. items 13, 14, & 15)

1шт.

11

A41393

TUBE

ASSY. - inj. pump to #3 cyl. (Incl. items 13, 14, & 15)

1шт.

12

A41394

TUBE

ASSY. - inj. pump to #4 cyl. (Incl. items 13, 14, & 15)

1шт.

Not illustrated properly. The part pictured is A35061, see 310G Crawler page 40 for illustration of all tubes if customer requires tubes that look like picture.

1шт.

13

A37850

PIPE FITTING

SLEEVE - tube

1шт.

14

A37851

NUT

- tube

1шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

16

73613

SCREW

- connector, injection tube

4шт.

17

A37836

NOZZLE

ASSY. - fuel injector (See note)

1шт.

A140829R

REMAN-INJECT NOZZLE

310G (S/N 3032301 TO 3039619) 1ST USED ENG. SN. 26227377, Reman For New P/N A37836

1шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

19

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

20

A41404

NUT

- lock

1шт.

21

A41407

WASHER

BALL - washer

1шт.

22

A41401

SEAT

- spring

2шт.

23

A41406

SPRING - pressure adjusting

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

25

A41405

PLATE

- nozzle locating

1шт.

26

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

27

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

28

A37837

CLAMP

ASSY. - injector nozzle

4шт.

29

A37839

SPACER

- nozzle clamp

4шт.

30

A37838

BOOT

- nozzle leak-off

4шт.

31

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - boot

4шт.

32

A38158

TUBE

- leak-off, injection, Serial Range: pump-boot

1шт.

33

A37840

TUBE

- leak-off boot

3шт.

34

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- tube to filter & pump, 3/8 x 1/4"

2шт.

35

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

36

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

37

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

- 5/16 x 5/16 x 1/8" P.T.

1шт.

38

222-103

SLEEVE,5/16" Tube

2шт.

39

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

2шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

41

92-5

LOCK WASHER,5/16"

3шт.

42

A38159

PLUG

- leak-off boot

1шт.

FOOTNOTE

1шт.

Ref #4A - A58709 Clamps used on later units 06/11/96

1шт.

FOOTNOTE

1шт.

Ref 12 A41394 not illustrated properly the part pictured is a35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture DB 12/1/99

1шт.
