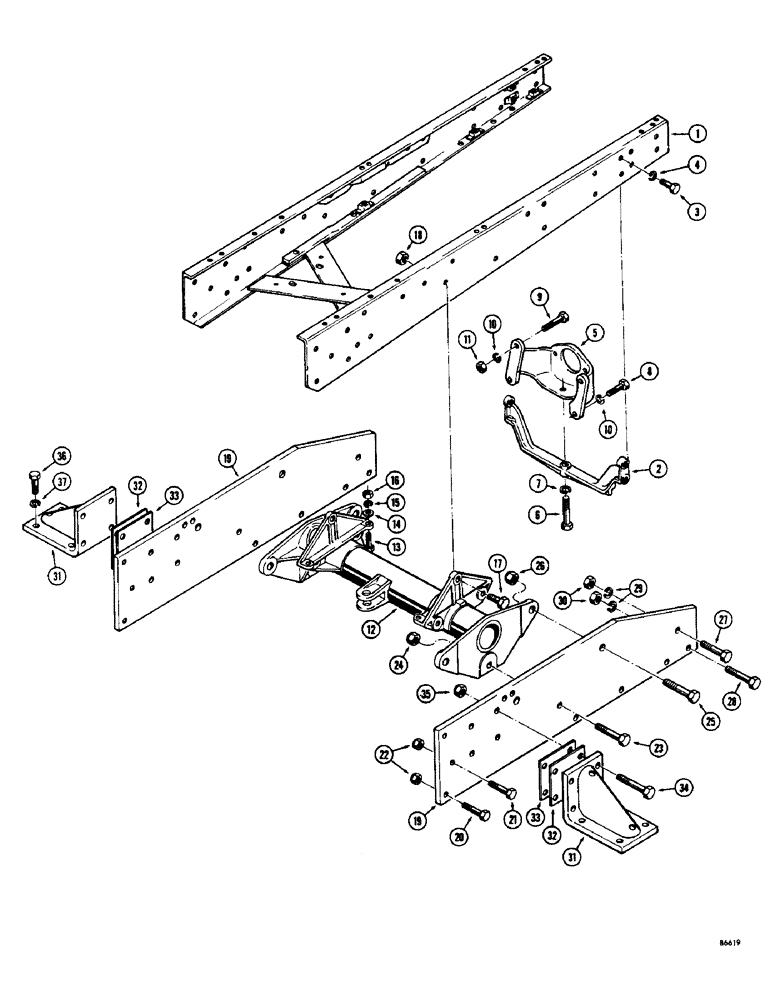

Запчасти Case 310G (058) - ENGINE FRAME, TORQUE TUBE, ENGINE SUPPORTS AND SIDE PLATES (01) - ENGINE

1

D29943

FRAME - engine (Use on all models without backhoe) See D29944

1шт.

D29944

FRAME - engine (Use on backhoe models only) See D29943

1шт.

2

D28503

MOUNTING PARTS

SUPPORT - engine, front (When stock is exhausted, order D42175 support for service)

1шт.

D42175

MOUNTING PARTS

SUPPORT - engine, front

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

D36857

BRACKET

MOUNT - engine, front

1шт.

6

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

1шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

9

G49039

BOLT

- ground body (5/8" - 18 NF x 2-1/2")

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

12

D34273

TUBE

- torque, standard (48" gauge)

1шт.

D34272

TUBE - torque, 42" gauge (Optional for loader models only)

1шт.

D34274

TUBE

- torque, 60" gauge (Optional for drawbar models only)

1шт.

D34275

TUBE - torque, 72" gauge (Optional for drawbar models only)

1шт.

13

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

14

33496

BRAKE LINING

SHIM - torque tube to engine frame

1шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

17

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

18

25-1012

NUT,3/4"-10, G5

2шт.

19

D29735

PLATE - side

2шт.

20

D29721

BOLT

- special, side plate to inner final drive housing (3/4" - 16 NF x 2-1/2")

4шт.

21

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NF x 2-1/2" (Side plate to inner final drive housing)

2шт.

22

230-46112

LOCK NUT,3/4"-16, GA

NUT - lock, hex. (3/4" - 16 NF)

6шт.

23

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4" - 16 NF x 2-3/4" (Side plate to torque tube)

2шт.

24

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4" - 16 NF)

2шт.

25

33047

BOLT,Hex, 1" - 14 x 3 3/32"

- special, side plate to torque tube

4шт.

26

232-46116

LOCK NUT,1"-14, GC

NUT - lock (1" - 14 NF)

4шт.

27

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

(Side plate to track channel) Hex, 3/4"-10 x 2 1/2", G5

2шт.

28

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Side plate to track channel) Hex, 3/4"-10 x 3", G5

2шт.

29

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

30

25-1012

NUT,3/4"-10, G5

4шт.

31

D29059

BRACKET - mounting, track frame

2шт.

32

D29758

SHIM,.1875" Thk

Mounting bracket .1875" Thk

1шт.

33

D29759

SHIM,.0747" Thk

Mounting bracket .0747" Thk

1шт.

34

14-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

HHCS - 3/4" - 16 NF x 3" (Mounting bracket to side plate)

8шт.

35

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex (3/4" - 16 NF)

8шт.

36

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4" - 16 NF x 1-3/4" (Mounting bracket to track frame)

8шт.

37

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.
