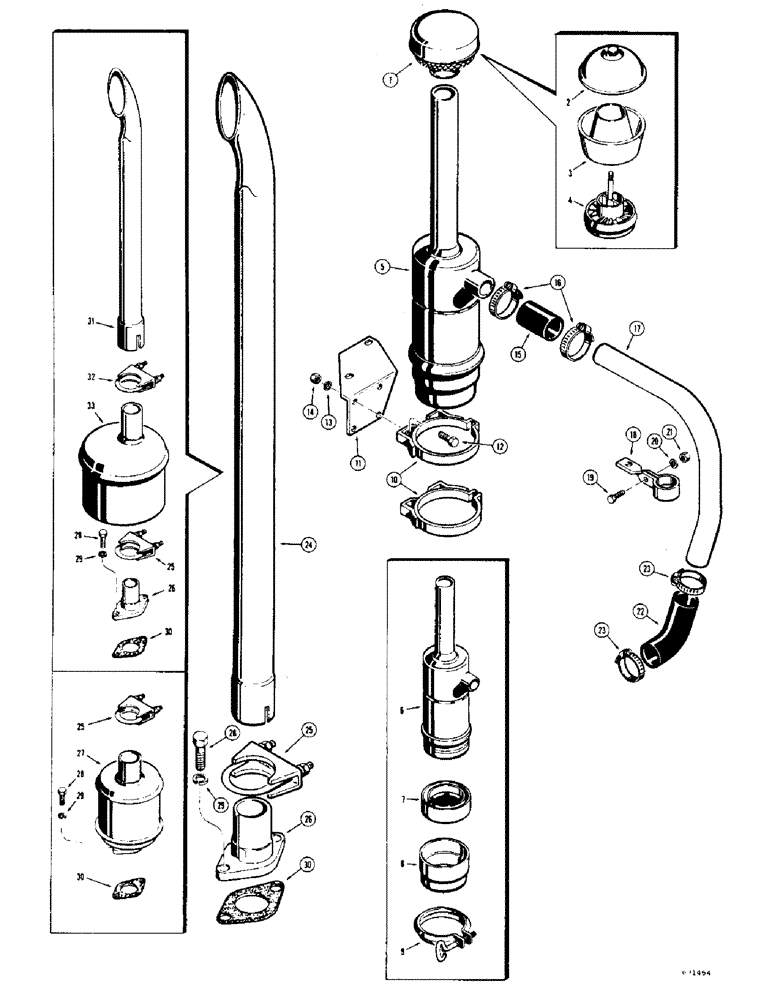

Запчасти Case 310G (054) - AIR CLEANER AND EXHAUST SYSTEM - GAS (01) - ENGINE

1

A30532

CAP

- inlet, air cleaner (Standard)

1шт.

D20605

PRECLEANER

PRE-CLEANER - inlet, air cleaner (Optional)

1шт.

2

D30676

COVER

- pre-cleaner

1шт.

3

D30675

BODY

- pre-cleaner

1шт.

4

D30678

SLEEVE

- pre-cleaner

1шт.

5

D24939

CLEANER

AIR CLEANER - complete

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

D26377

X

CUP - oil, inner

1шт.

8

D26371

CUP - oil, outer

1шт.

9

D26370

CLAMP

- retaining, oil cup

1шт.

10

D27245

COLLAR CLAMP

BAND - air cleaner mounting

2шт.

11

D36079

BRACKET - air cleaner mounting

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

R14169

HOSE

- air cleaner to intake manifold

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

D27136

TUBE - air cleaner to intake manifold

1шт.

18

38289

CLAMP - air cleaner tube

1шт.

19

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

1шт.

22

D27155

ELBOW

- air, Serial Range: cleaner-manifold

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

24

D33503

PIPE

- exhaust, ceramic coated (Use with D22864 outlet or D35106 muffler only)

1шт.

25

74768

X,2-1/2" ID

CLAMP - exhaust pipe (When stock is exhausted, use A13240 clamp)

1шт.

A13240

CLAMP,2-5/8" ID

- exhaust pipe

1шт.

26

D22864

OUTLET

- exhaust

1шт.

27

D35106

MUFFLER

- exhaust, under hood (Optional)

1шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

G46853

MANIFOLD GASKET

- exhaust outlet

1шт.

31

D33535

PIPE

- exhaust, ceramic coated (Optional) Use with D36506 muffler only

1шт.

32

D38328

X

CLAMP - exhaust pipe

1шт.

33

D36506

MUFFLER

- exhaust, spark arresting (Optional) Use with D33535 exhausted pipe only (When stock is exhausted, use D45256 muffler)

1шт.

33

D45256

MUFFLER,W/ Spark Arrester

- exhaust, spark arresting

1шт.
