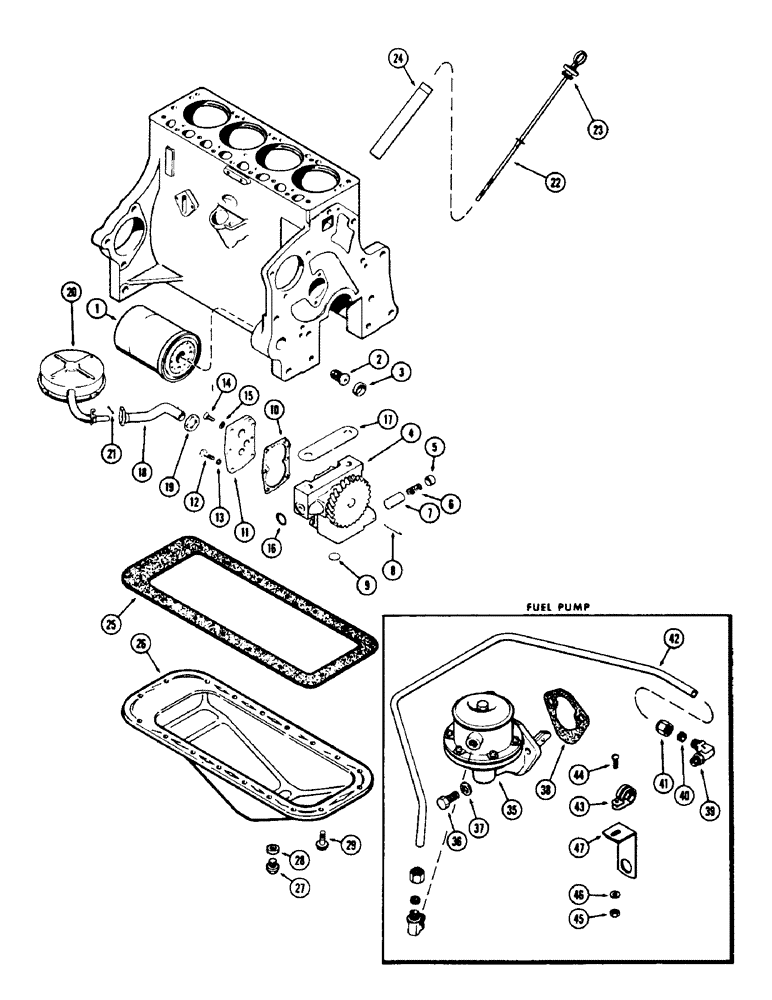

Запчасти Case 310G (040) - OIL PUMP - OIL FILTER - OIL PAN, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - oil, engine

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

3

A37207

X

PLUG - adapter opening

1шт.

4

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY. - complete

1шт.

5

A29260

RETAINER

- relief spring

1шт.

6

G48513

VALVE SPRING

SPRING - relief

1шт.

7

A155144

VALVE, PRESSURE RELI

- relief

1шт.

8

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, 1/8" x 1 1/8", Slotted

1шт.

9

41-102

PLUG,Exp, 1/2"

- pump body

2шт.

10

G46852

GASKET

- pump cover

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

12

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" flat hd.

2шт.

15

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

16

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

17

G11337

SHIM,.002" Thk

Pump to block .002" Thk

1шт.

17

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

A30126

FLOAT ASSY. - (Includes screen)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

A37148

DIPSTICK

- oil level

1шт.

23

F63075

"O" RING - dipstick, 3/4 x 1 x 1/8"

2шт.

24

A37149

TUBE

- dipstick & oil filler

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40710 from figure 42)

1шт.

26

A36785

ENGINE OIL PAN

OIL PAN ASSY

1шт.

27

A14280

PLUG

- drain

1шт.

28

A27927

OIL PAN GASKET SET

- drain plug

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

16шт.

35

G45778

PUMP

- fuel

1шт.

36

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Fuel pump Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

37

92-5

LOCK WASHER,5/16"

fuel pump 5/16"

2шт.

38

G46902

GASKET

- fuel, Serial Range: pump-block

1шт.

39

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line, pump

2шт.

40

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

SLEEVE (For 5/16" O.D. tube), fuel pump

1шт.

41

222-653

SLEEVE,5/16" Tube, Comp

NUT - (For 5/16" O.D. tube), fuel pump

1шт.

42

G46289

LINE

- fuel, Serial Range: pump-carburetor

1шт.

43

G11359

CLAMP - fuel line, pump

1шт.

44

169-76

SCREW - #8-32 x 7/16" rd. hd., fuel pump

1шт.

45

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- #8-32 (Keps), fuel pump

1шт.

46

195-10

WASHER,#8

- 3/16 x 7/15 x 1/16", fuel pump

1шт.

47

G11358

BRACKET - fuel line clamp, pump

1шт.
