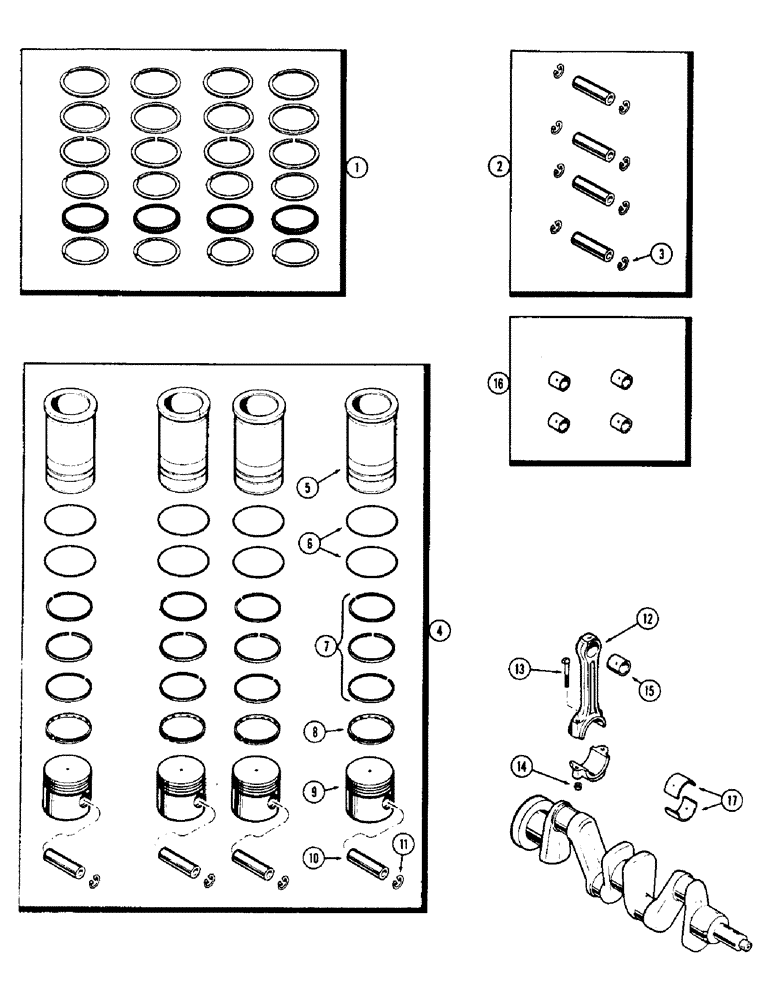

Запчасти Case 310G (038) - PISTON ASSY. & CONNECTING RODS, (148B) SPARK IGNITION ENG. (01) - ENGINE

1

G11116

PISTON RING SET

RINGS - piston, 2 in 1 chrome set

1шт.

2

G11925

PISTON PIN

PIN KIT - piston (Included 8 rings)

1шт.

3

A30023

RETAINER

RING - retaining

8шт.

4

G11007

SLEEVE ASSY

PISTON & SLEEVE - matched set of 4

1шт.

5

G1061

SLEEVE

- cylinder

4шт.

6

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

7

G4810

RING, PISTON

RING - compression (See ref. 1)

12шт.

8

G4811

RING, PISTON

RING - oil control (See ref. 1)

4шт.

9

G1060

PISTON

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 2)

1шт.

11

A30023

RETAINER

RING - retaining (See ref. 2)

8шт.

12

G11592

EXCHANGE CONROD

ROD - connecting

4шт.

13

G11701

BOLT

- cap

2шт.

14

G49060

NUT

- cap bolt

2шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - (Order ref. 16)

1шт.

16

G11955

KIT

BUSHING KIT - conn. rod (Set of 4)

1шт.

17

A36500

SEAL

LINERS - brg. conn. rod (Std)

4шт.

17

A36501

BEARING LINER

LINERS - brg. conn. rod (-.002")

4шт.

17

A36502

LINING

LINERS - brg. conn. rod (-.010")

4шт.

17

A36503

BEARING LINER

LINERS - brg. conn. rod (-.020")

4шт.

17

A36504

KIT

LINERS - brg. conn. rod (-.030")

4шт.
