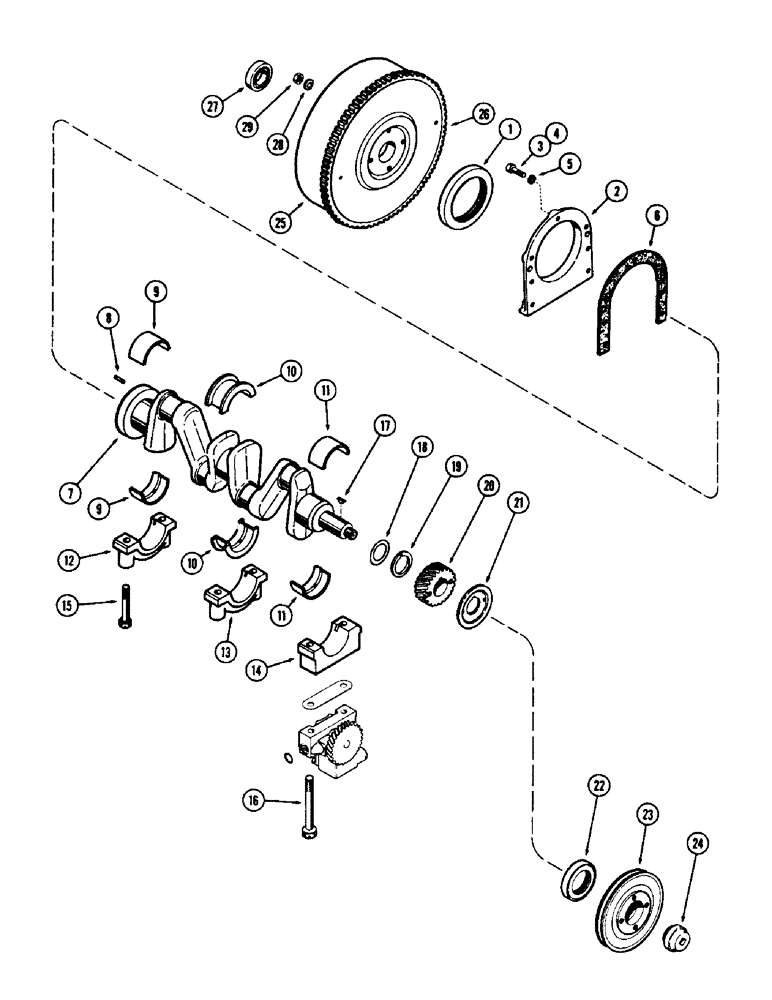

Запчасти Case 310G (036) - CRANKSHAFT AND FLYWHEEL, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A36610

OIL SEAL

- oil, rear, crankshaft

1шт.

2

G2017

RETAINER

- rear oil seal

1шт.

3

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

4

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

6

G46802

GASKET

- rear oil seal retainer

1шт.

7

A37210

CRANKSHAFT

- w/13 int. spline teeth

1шт.

8

A29434

STUD

- flywheel, 7/16" N.C. x 1-3/4"

4шт.

9

G37051

KIT

LINERS - rear brg. (Std.)

1шт.

9

G37052

KIT

LINERS - rear brg. (-.002")

1шт.

9

G37053

KIT

LINERS - rear brg. (-.020")

1шт.

9

G37054

KIT

LINERS - rear brg. (-.040")

1шт.

10

G37047

KIT

LINERS - center brg. (Std.)

1шт.

10

G37048

KIT

LINERS - center brg. (-.002")

1шт.

10

G37049

KIT

LINERS - center brg. (-.020")

1шт.

10

G27050

LINERS - center brg. (-.040")

1шт.

11

G37043

KIT

LINERS - front brg. (Std.)

1шт.

11

G37044

KIT

LINERS - front brg (-.002")

1шт.

11

G37045

KIT

LINERS - front brg. (-.020")

1шт.

11

G37046

KIT

LINERS - front brg. (-.040")

1шт.

12

G2037

CAP

- rear bearing

1шт.

13

G2036

CAP

- center bearing

1шт.

14

G2035

CAP

- front bearing

1шт.

15

G49037

BOLT

- center & rear cap, 1/2 x 3" spec.

4шт.

16

G49059

BOLT

- oil pump & brg. cap, 1/2 x 4-3/4" spec.

2шт.

17

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear

2шт.

18

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

19

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

20

A29263

GEAR

- crankshaft

1шт.

21

A29259

SLINGER

- oil

1шт.

22

A36609

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

23

G22342

PULLEY - fan & generator drive

1шт.

24

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

25

G37091

FLYWHEEL ASSY

1шт.

26

G11710

GEAR

- ring, flywheel starter

1шт.

27

A30128

BEARING ASSY

BEARING - pilot

1шт.

28

92-7

LOCK WASHER,7/16"

4шт.

29

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.
