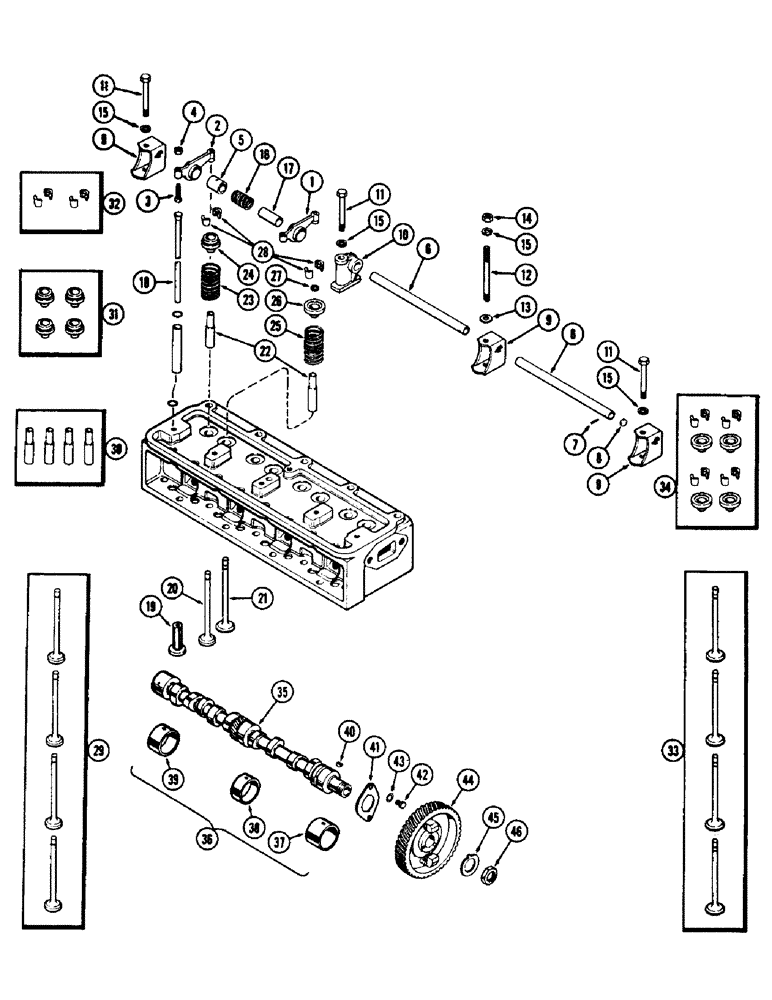

Запчасти Case 310G (034) - VALVE MECHANISM AND CAMSHAFT, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G45234

ARM

ASSY. - rocker, R.H. (Incl. ref 3, 4, and 5)

4шт.

2

G45235

ARM

ASSY. - rocker, L.H. (Incl. ref. 3, 4 and 5)

4шт.

3

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW - adjusting

1шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- jam 5/16" N.F. hex

1шт.

5

A31055

BUSHING

- rocker arm

1шт.

6

A37197

SHAFT

- rocker arm

2шт.

7

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Rocker shaft 1/8" x 3/4", Slotted

2шт.

8

A26796

PLUG

- shaft, rocker arm

2шт.

9

G46250

BRACKET

- rocker arm shaft

4шт.

10

G2107

BRACKET

- counter, rocker arm shaft

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- bracket, 3/8 x 2-3/4" N.C. hex

3шт.

12

G49505

STUD

- bracket & cover, 3/8" N.C. x 4-5/8", w/2" thrd.

2шт.

13

A29277

WASHER

- plain, bracket nut

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

15

92-6

LOCK WASHER,3/8"

5шт.

16

A30007

SPRING

- rocker arm shaft

4шт.

17

A30008

SPACER

- rocker arm shaft

2шт.

18

G11086

ROD

PUSH ROD

8шт.

19

A30006

TAPPET

LIFTER - push rod

8шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 29)

4шт.

21

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 33)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 30)

8шт.

23

G10004

SPRING

- exhaust valve

4шт.

24

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 31)

4шт.

25

A30025

SPRING

- intake valve

4шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 34)

4шт.

27

G46851

SEAL

- intake valve stem

4шт.

28

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 32)

16шт.

29

G11915

VALVE, ENG EXHAUST,

VALVE - exhaust (Set of 4)

1шт.

30

A30270

GUIDE

S - valve stem (Set of 4)

2шт.

31

G11928

CAP

ROTO-CAP - exhaust valve (Set of 4)

1шт.

32

G11929

LOCK

S - valve spring (Set of 4)

4шт.

33

G11914

VALVE

- intake (Set of 4)

1шт.

34

G11927

RETAINER

S - intake valve spring (Set of 4 w/locks)

1шт.

35

G2055

CAMSHAFT

1шт.

36

A41225

KIT

BUSHING SET - camshaft

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1.310" wide)

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, center (.710" wide)

1шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1.187" wide)

1шт.

40

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

41

A29290

PLATE

- thrust, camshaft

1шт.

42

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

43

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

44

G37066

GEAR

- camshaft

1шт.

45

A29438

LOCK NUT

WASHER - lock, camshaft nut

1шт.

46

A30063

NUT

- camshaft

1шт.
