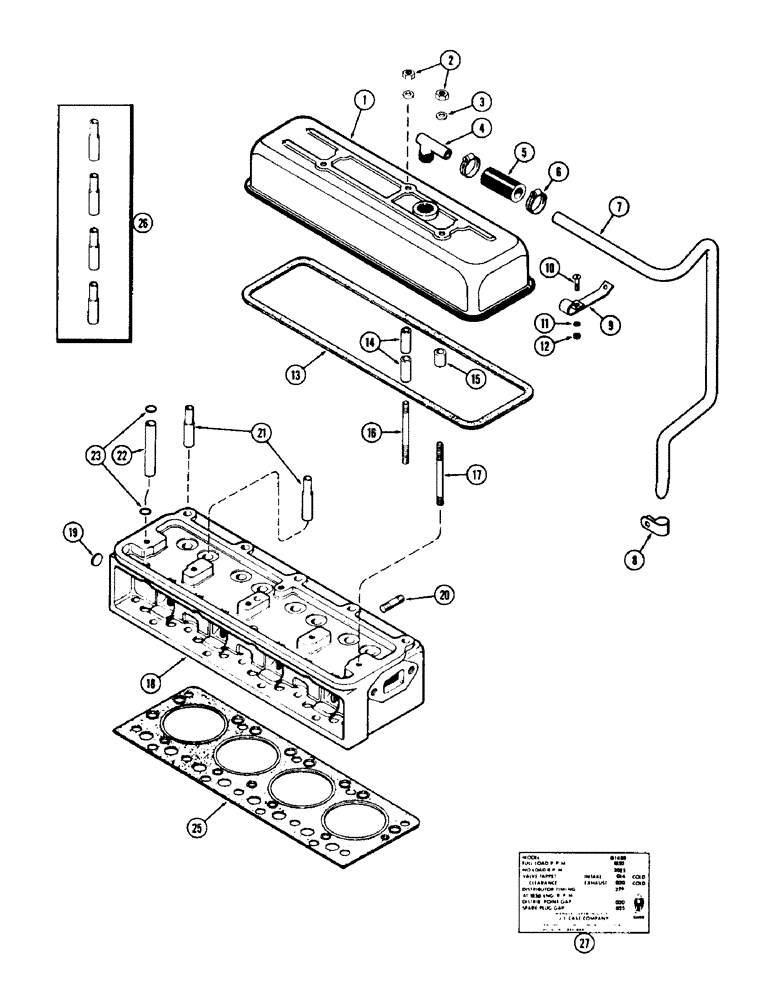

Запчасти Case 310G (032) - CYLINDER HEAD ASSEMBLY, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

A37212

COVER

- valve and head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

3

A29277

WASHER

- plain, cover nut

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

7

A37979

X

TUBE - breather

1шт.

8

D35026

CLAMP -, Serial Range: tube-block

1шт.

9

A38134

SPRING

CLIP - cyl. hd. breather tube

1шт.

10

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rhd. mach.

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

A30009

GASKET

-, Serial Range: cover-head

1шт.

14

A29999

SPACER

- cover, 19/32" high

2шт.

15

A30065

SPACER

- cover, 17/32" high

2шт.

16

G49505

STUD

- cover, 3/8" N.C. x 4-5/8", w/2" thrd.

2шт.

17

G49504

STUD

- cover, 3/8" N.C. x 4-5/8", w/1" thrd.

1шт.

18

G11909

HEAD ASSY. - cylinder

1шт.

19

A30079

X

PLUG - rear, 1-1/8" dia.

1шт.

20

A29431

STUD

- manifold

7шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 26)

8шт.

22

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal

16шт.

25

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

26

A30270

GUIDE

SET - valve stem (Set of 4)

2шт.

27

321-889

DECAL - engine date

1шт.
