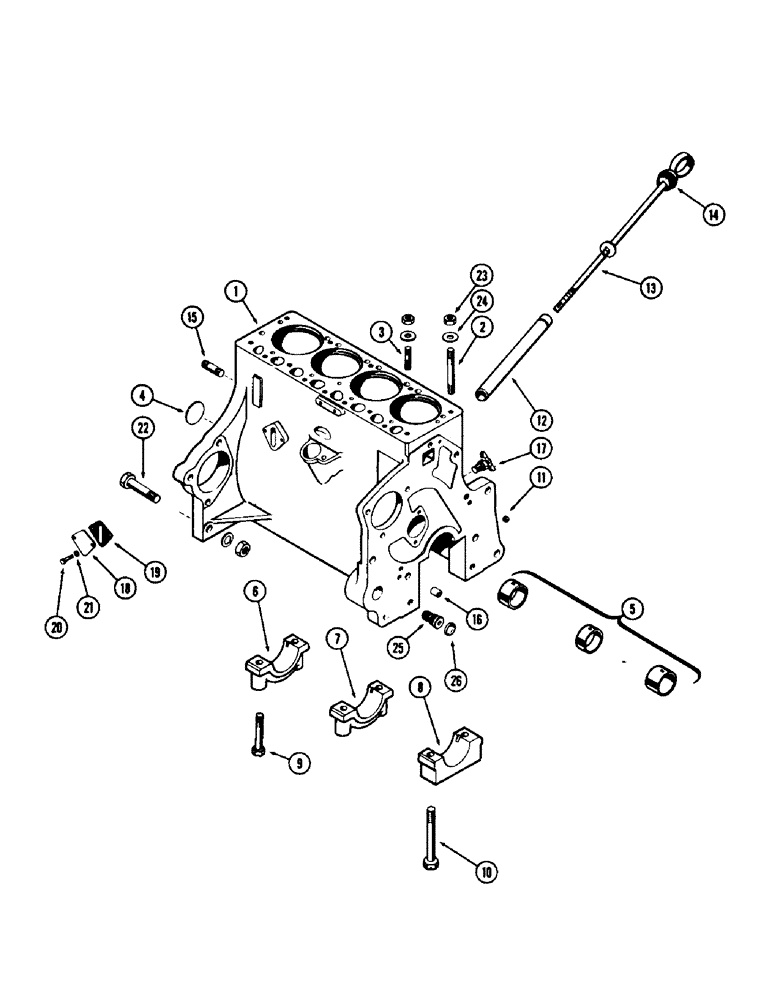

Запчасти Case 310G (030) - CYLINDER BLOCK ASSEMBLY, (148B) SPARK IGNITION ENGINE (01) - ENGINE

A37829

BLOCK ASSY. - short (Not illust.) (Incl. stripped block, crankshaft & main brgs., camshaft, piston assy., conn. rods and oil pump)

1шт.

1

A37828

SKELETON ENGINE

BLOCK ASSY. - stripped

1шт.

2

A29436

STUD

- head, 1/2" N.F. x 5-13/16"

5шт.

3

A30057

STUD

- head, 1/2" N.F. x 2"

9шт.

4

A39241

PLUG,Exp, 2.12" dia

- rear, 2-1/8" dia.

1шт.

5

A41255

BUSHING

SET - camshaft (See figure 34)

1шт.

6

G2037

CAP

- rear bearing, crankshaft

1шт.

7

G2036

CAP

- center bearing, crankshaft

1шт.

8

G2035

CAP

- front bearing, crankshaft

1шт.

9

G49037

BOLT

- bearing cap, 1/2 x 3" spec.

4шт.

10

G49059

BOLT

- bearing cap, 1/2 x 4-3/4" spec.

2шт.

11

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

12

A37149

TUBE

SUPPORT - dipstick

1шт.

13

A37148

DIPSTICK

- oil level

1шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick, 3/4 x 1 x 1/8"

2шт.

15

A29333

STUD

- engine, 5/8" N.F. x 3"

2шт.

16

A29442

RING

- dowel

2шт.

17

217-103

COCK, DRAIN

DRAIN COCK - cylinder block

1шт.

18

G11702

COVER

- fuel pump opening

1шт.

19

G46902

GASKET

- cover

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

A30099

X

BOLT - block

2шт.

23

A30021

NUT

- head stud

14шт.

24

G49404

WASHER

- head stud

14шт.

25

A153552

ADAPTER

- oil filter to cyl. block

1шт.

26

A37207

X

PLUG - oil filter flange cup

1шт.
