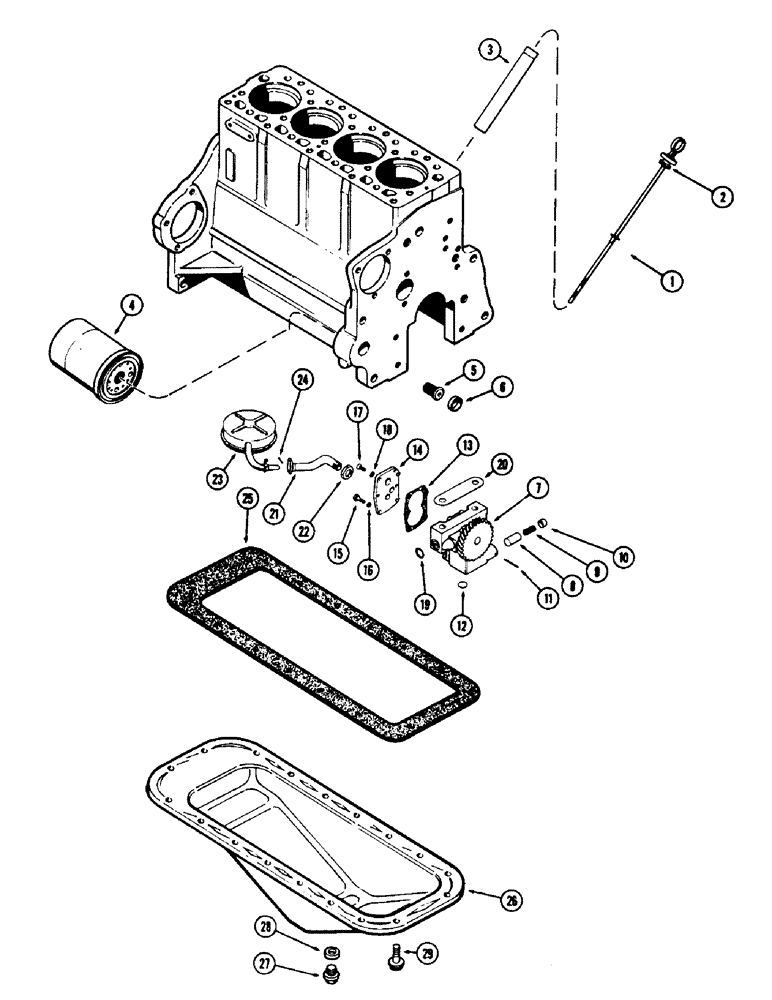

Запчасти Case 310G (018) - OIL PUMP - OIL FILTER - OIL PAN, (188) DIESEL ENGINE (01) - ENGINE

1

A37148

DIPSTICK

- engine oil level

1шт.

2

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

3

A37149

TUBE

- oil filter & dipstick

1шт.

4

A37189

FILTER, ELEMENT

FILTER - engine oil

1шт.

5

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

6

A37207

X

PLUG - adapter opening

1шт.

7

G37070

X

OIL PUMP - complete

1шт.

8

A155144

VALVE, PRESSURE RELI

- relief

1шт.

9

G48500

SPRING

- relief valve

1шт.

10

A29260

RETAINER

- relief spring

1шт.

11

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN - roll, 1/8 x 1/4"

1шт.

12

41-102

PLUG,Exp, 1/2"

- pump body

1шт.

13

G46852

GASKET

- pump cover

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach, 1/4 x 5/8" flat hd.

2шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

20

G11337

SHIM,.002" Thk

Pump to block .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

21

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

22

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

23

A30126

FLOAT ASSY - (Includes screen)

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A40712 from figure 20)

1шт.

26

A36782

PAN

OIL PAN ASSY

1шт.

27

A14280

PLUG

- drain

1шт.

28

A27927

OIL PAN GASKET SET

- drain plug

1шт.

29

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

18шт.
