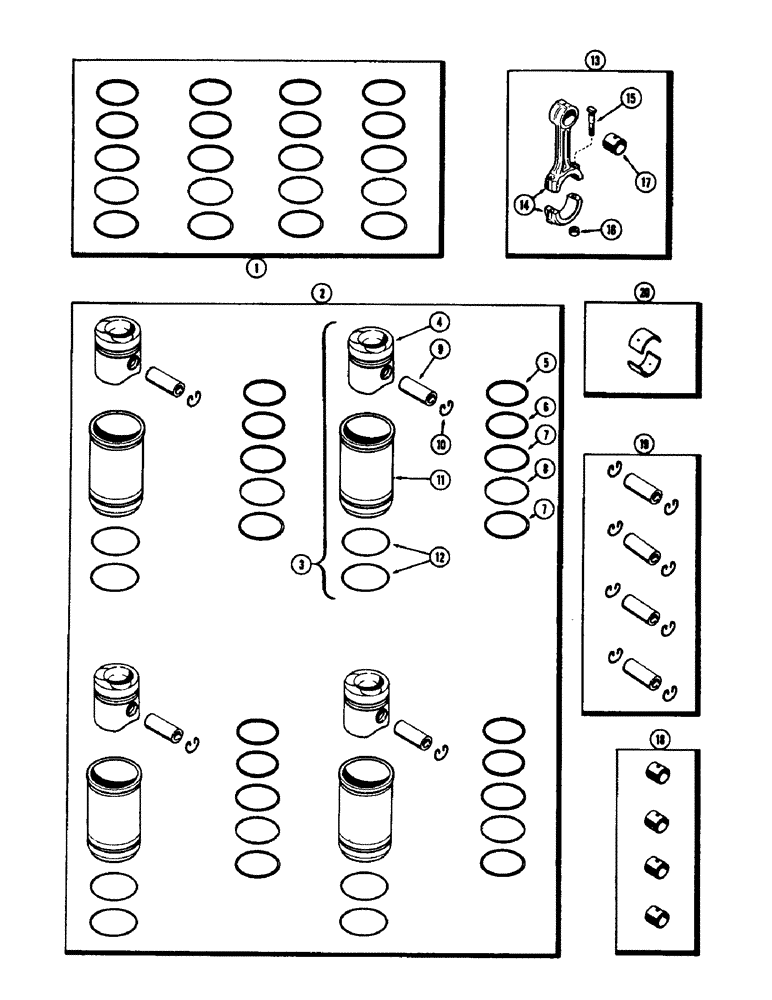

Запчасти Case 310G (016) - PISTON ASSEMBLY AND CONNECTING RODS, (188) DIESEL ENGINE (01) - ENGINE

1

G37075

RING

SET - replacement, 4 pistons

1шт.

2

A37764

PISTON & SLEEVE SET (4 cylinders)

1шт.

3

A37769

X

PISTON & SLEEVE SET (1 cylinder)

4шт.

4

G2137

X

PISTON

1шт.

5

G4819

RING

- top, piston (See ref. 1)

1шт.

6

G4817

RING

- compression (See ref. 1)

1шт.

7

G47155

RAIL

- oil (See ref. 1)

2шт.

8

G47174

SPRING

RAIL - oil (See ref. 1)

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - wrist (Order ref. 19)

1шт.

10

G46702

RING, LOCKING

RING - retaining (See ref. 19)

2шт.

11

A37763

X

SLEEVE - cylinder

1шт.

12

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

13

G11847

ROD

ASSY - connecting

4шт.

14

NSS

NOT SOLD SEPARAT

ROD & CAP

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rod (Order ref. 18)

1шт.

18

G11953

BUSHING

- set of 4, connecting rod

1шт.

19

A35771

KIT

PIN SET - piston (Set of 4 includes 8 rings)

1шт.

20

A36500

SEAL

LINERS - brg., conn. rod (Std.)

4шт.

20

A36501

BEARING LINER

LINERS - brg., conn. rod (-.002")

4шт.

20

A36502

LINING

LINERS - brg., conn. rod (-.010")

4шт.

20

A36503

BEARING LINER

LINERS - brg., conn. rod (-.020")

4шт.

20

A36504

KIT

LINERS - brg., conn. rod (-.030")

4шт.
