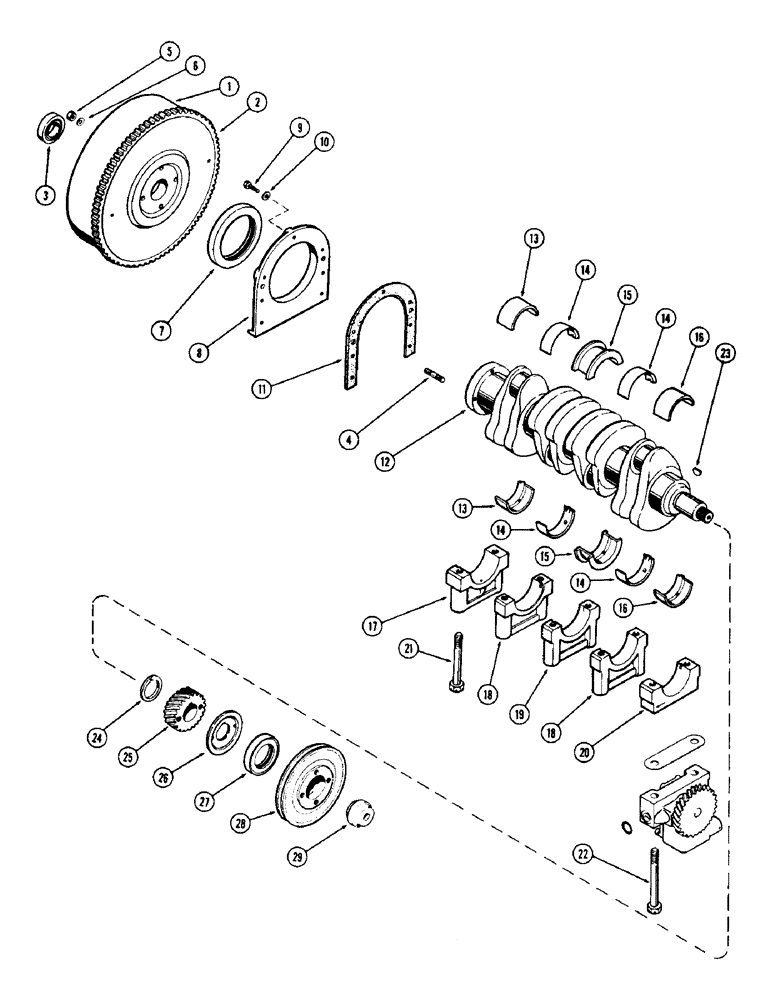

Запчасти Case 310G (014) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (01) - ENGINE

1

G37091

FLYWHEEL ASSY

1шт.

2

G11710

GEAR

- ring

1шт.

3

A30128

BEARING ASSY

BEARING - pilot

1шт.

4

A29434

STUD

- flywheel, 7/16" N.F. x 1-3/4"

4шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

4шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

A36610

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

8

G2017

RETAINER

- oil seal, rear

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

11

G46802

GASKET

- retainer, rear oil seal

1шт.

12

A37211

CRANKSHAFT

1шт.

13

A36945

LINERS - rear bearing (Std.)

1шт.

13

A36496

LINING

LINERS - rear bearing (-.002")

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (-.010")

1шт.

13

A36498

KIT

LINERS - rear bearing (-.020")

1шт.

13

A36499

BEARING LINER

LINERS - rear bearing (-.030")

1шт.

14

A36485

LINING

LINERS - intermediate bearing (Std.)

2шт.

14

A36486

LINING

LINERS - intermediate bearing (-.002")

2шт.

14

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (-.010")

2шт.

14

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate bearing (-.020")

2шт.

14

A36489

LINING

LINERS - intermediate bearing (-.030")

2шт.

15

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Std.)

1шт.

15

A36491

LINING

LINERS - center bearing (-.002")

1шт.

15

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (-.010")

1шт.

15

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (-.020")

1шт.

15

A36494

LINING

LINERS - center bearing (-.030")

1шт.

16

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.)

1шт.

16

A36481

LINING

LINERS - front bearing (-.002")

1шт.

16

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (-.010")

1шт.

16

A36483

LINING

LINERS - front bearing (-.020")

1шт.

16

A36484

LINING

LINERS - front bearing (-.030")

1шт.

17

G2129

CAP

- rear bearing liner

1шт.

18

G2128

CAP

- intermediate bearing liner

2шт.

19

G2127

CAP

- center bearing liner

1шт.

20

G2126

CAP

- front bearing liner

1шт.

21

G49078

BOLT - bearing cap, 1/2 x 4-1/2" N.C. spec.

8шт.

22

G49077

BOLT

- oil pump & brg. cap, 1/2 x 5-1/8" N.C. spec.

2шт.

23

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

1шт.

24

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

25

A29263

GEAR

- crankshaft

1шт.

26

A29259

SLINGER

- oil

1шт.

27

A36609

OIL SEAL

OIL SEAL - front, crankshaft

1шт.

28

G11342

X

PULLEY - fan & generator drive

1шт.

29

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.
