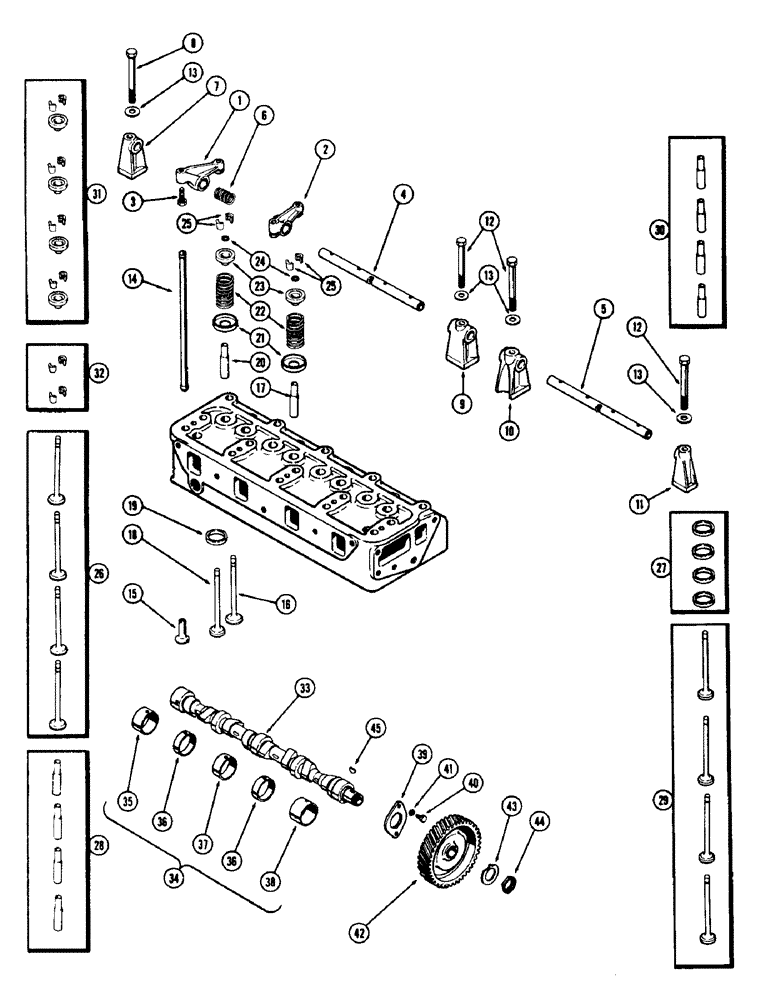

Запчасти Case 310G (012) - VALVE MECHANISM AND CAMSHAFT, (188) DIESEL ENGINE (01) - ENGINE

1

G45771

ARM

ASSY. - rocker, L.H. (Incl. item 3)

4шт.

2

G45770

ARM

ASSY. - rocker, R.H. (Incl. item 3)

4шт.

3

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- arm adjusting

1шт.

4

G11747

X

SHAFT - rear, rocker arm

1шт.

5

G11743

SHAFT

- front, rocker arm

1шт.

6

G48501

SPRING

- rocker arm shaft

4шт.

7

A36615

BRACKET

- rear, rocker arm shaft

1шт.

8

G49067

BOLT

- drilled, rear bracket

1шт.

9

G2101

BRACKET

- center, rocker arm shaft

1шт.

10

G2102

BRACKET

- intermediate, rocker arm shaft

2шт.

11

G2100

BRACKET

- front, rocker arm shaft

1шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

4шт.

13

A30058

WASHER

- bracket bolt

5шт.

14

G47079

ROD

- push

8шт.

15

G47077

TAPPET

LIFTER - push rod

8шт.

16

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 29)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 30)

4шт.

18

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 26)

4шт.

19

NSS

NOT SOLD SEPARAT

INSERT - valve seat (Order ref. 27)

4шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 28)

4шт.

21

G49065

SEAT

- valve spring

8шт.

22

A30025

SPRING

- valve

8шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Order ref. 31)

8шт.

24

G46851

SEAL

- rubber, valve stem

8шт.

25

NSS

NOT SOLD SEPARAT

LOCK - retainer (Order ref. 32)

16шт.

26

G11948

KIT

VALVES - exhaust (Set of 4)

1шт.

27

G11986

KIT

INSERTS - valve seat (Set of 4)

1шт.

28

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

29

G11947

VALVE

S - intake (Set of 4)

1шт.

30

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

31

G11927

RETAINER

S - valve spring (Set of 4 w/locks)

2шт.

32

G11929

LOCK

- retainer (Set of 4)

4шт.

33

A36853

X

CAMSHAFT

1шт.

34

A41232

KIT

BUSHING SET - camshaft

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - rear, camshaft (1.220" wide)

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, camshaft (.50" wide)

2шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - center, camshaft (.720" wide)

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - front, camshaft (1.220" wide)

1шт.

39

A29290

PLATE

- thrust, camshaft

1шт.

40

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

41

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

42

G2066

X

GEAR - camshaft

1шт.

43

A29438

LOCK NUT

WASHER - lock, gear nut

1шт.

44

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

45

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
