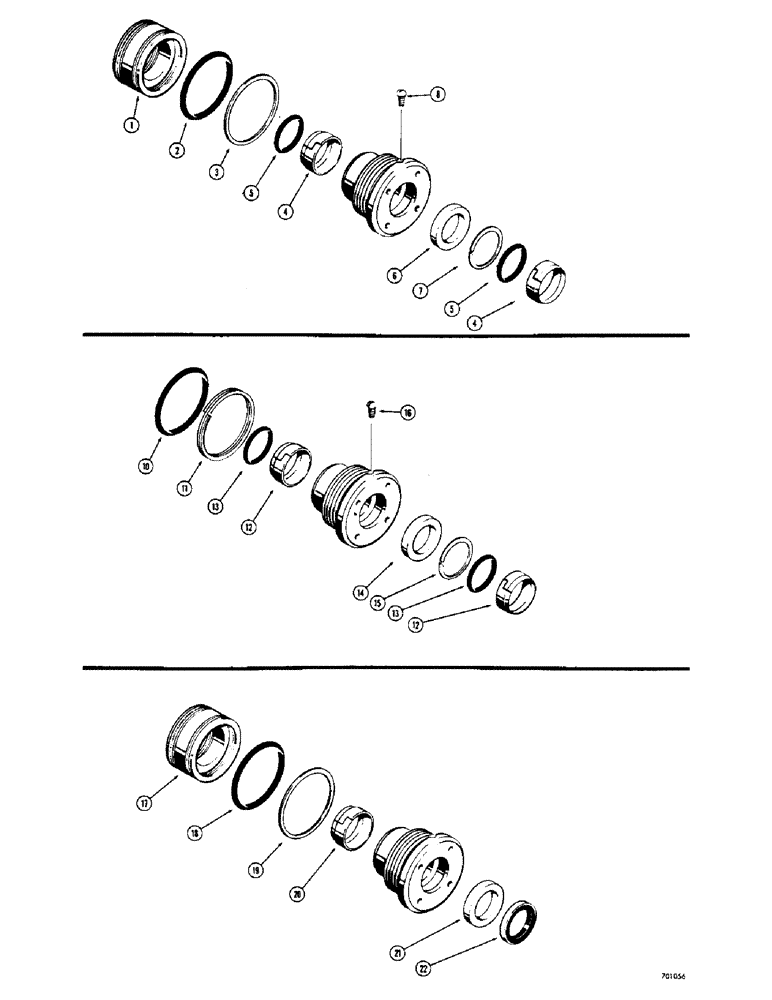

Запчасти Case 310G (284) - CYL. PACKING KITS, USED IN DOZER ANGLING CYLS. W/ 3-1/2" CYL TUBE I.D. X 1-3/4" PISTON ROD (07) - HYDRAULIC SYSTEM

D37356

GLAND

KIT - cylinder packing (When stock is exhausted, order D42873 kit for service)

1шт.

1

D36963

PACKING

- piston

1шт.

2

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

3

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

4

D27432

SHIM

- rod

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

6

D36970

CUP

SEAL - rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF) Not shown

1шт.

D42873

GASKET KIT

KIT - gland packing

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, D42873 gland packing kit

1шт.

11

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D42873 gland packing

1шт.

12

D27432

SHIM

- rod, D42873 gland packing

2шт.

13

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used), D42873 gland packing

2шт.

14

D36970

CUP

SEAL - rod, D42873 gland packing

1шт.

15

D28499

RING

- backup, rod seal, D42873 gland packing

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42873 gland packing

1шт.

G32291

CYLINDER

KIT - cylinder packing

1шт.

17

D36963

PACKING

- piston, chevron, G32291 cylinder packing kit

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32291 cylinder packing kit

1шт.

19

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, G32291 cylinder packing kit

1шт.

20

D27432

SHIM

- rod, inner, G32291 cylinder packing kit

1шт.

21

D36970

CUP

SEAL - rod, G32291 cylinder packing kit

1шт.

22

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32291 cylinder packing kit

1шт.
