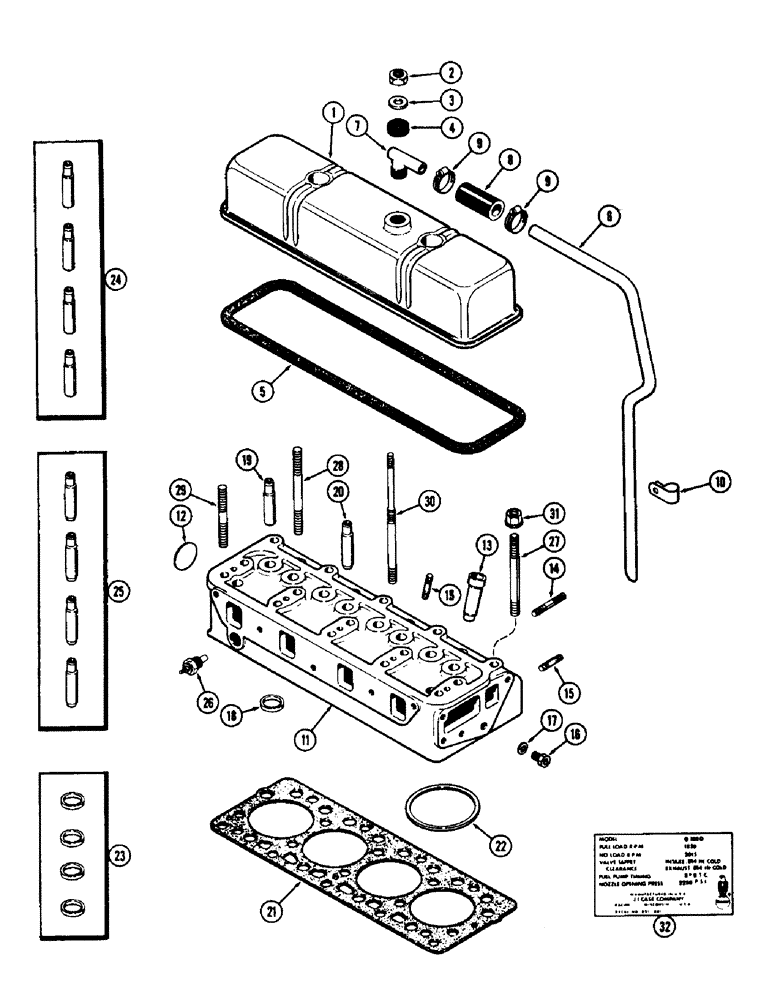

Запчасти Case 310G (010) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ENGINE, USED PRIOR TO ENG. SN 2627377 (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
- valve & head
1шт.
2
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
2шт.
3
G49400
WASHER
- cover nut
2шт.
4
G46867
GROMMET
- rubber
2шт.
5
G46866
GASKET
-, Serial Range: cover-head
1шт.
6
D35014
TUBE
- breather
1шт.
8
A21234
HOSE,0.75" ID x 3.50", SAE 20R4 Class SC
- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC
1шт.
9
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose
2шт.
10
49858
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
-, Serial Range: tube-engine
1шт.
11
A36880
HEAD ASSY. - cylinder
1шт.
12
A30036
PLUG
- expansion, 1-3/4" dia.
1шт.
13
G11724
LINER
- fuel injector
4шт.
14
A35175
STUD
- manifold, 3/8" N.C. x 2-7/16"
6шт.
15
A29431
STUD
- manifold & injector, 3/8" N.C. x 1-3/4"
12шт.
16
G49083
BOLT
- drilled, gear cover
1шт.
17
193-77
LOCK WASHER,Int Tooth, 1/2"
WASHER - Shakeproof, 1/2" ext.
1шт.
18
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve seat (Order ref. 23)
4шт.
19
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve stem (Order ref. 24)
4шт.
20
NSS
NOT SOLD SEPARAT
GUIDE - intake valve stem (Order ref. 25)
4шт.
21
A36877
GASKET
-, Serial Range: head-block
1шт.
22
A36900
RING, PISTON
RING - fire, cylinder (Std. w/orange mark)
4шт.
22
A37031
RING
- fire, cylinder (Oversize coated black)
4шт.
23
G11986
KIT
INSERTS - exhaust valve seat (Set of 4)
1шт.
24
G11946
GUIDE
S - exhaust valve stem (Set of 4)
1шт.
25
G11945
GUIDE
S - intake valve stem (Set of 4)
1шт.
26
A21462
SENDER UNIT
SENDER - engine temperature
1шт.
27
A36902
STUD
- head to block, 1/2" N.C. x 5-5/8"
11шт.
28
A36905
STUD
- head to block, 1/2" N.C. x 6-1/8"
2шт.
29
A36904
STUD
- head to block, 1/2" N.C. x 4"
4шт.
30
A36903
STUD
- head and cover
2шт.
31
A37030
FLANGE NUT
- flanged, head stud
19шт.
32
321-881
DECAL - engine data
1шт.
Выбрано товаров: 33
