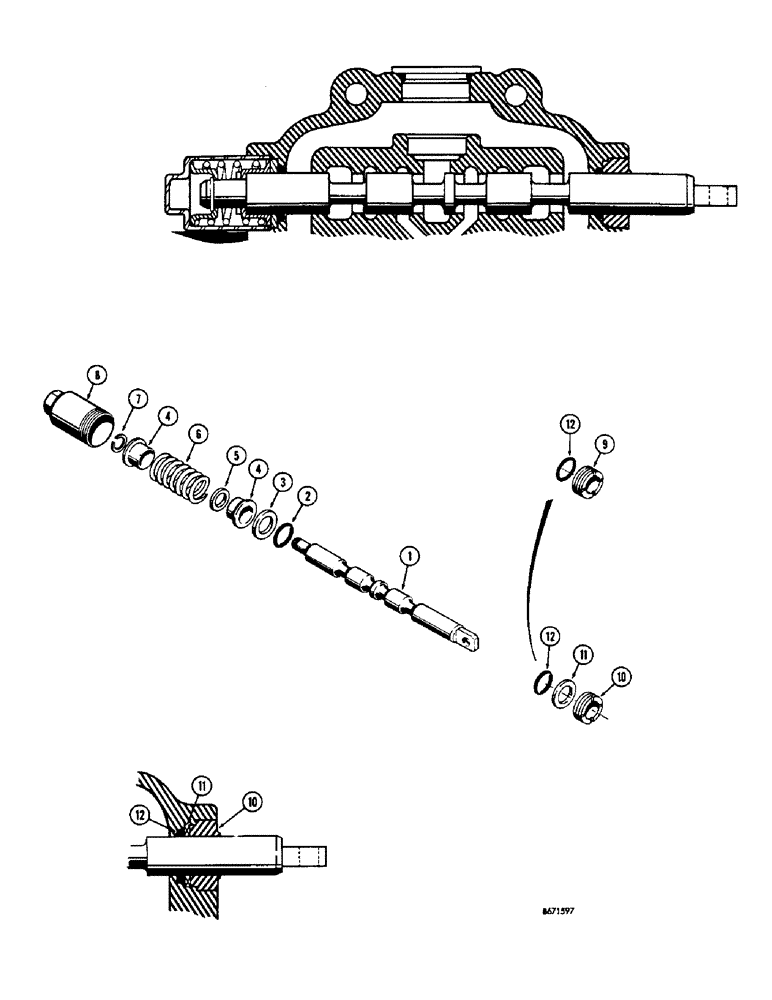

Запчасти Case 310G (270) - THREE POSITION SPOOLS (07) - HYDRAULIC SYSTEM

D37050

SPOOL

ASSEMBLY - three position (Color code - black or lettter code - W), Serial Range: .73700"-.73709"

1шт.

D37051

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X), Serial Range: .73710"-.73719"

1шт.

D37052

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y), Serial Range: .73720"-.73729"

1шт.

D37053

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z), Serial Range: .73730"-.73740"

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

3

A14535

RETAINER

- seal

1шт.

4

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

5

A25286

WASHER

- special

1шт.

6

A14534

SPRING

- spool return

1шт.

7

A27020

RING

SNAP RING - spring retainer

1шт.

8

A14529

CAP

- spool

1шт.

9

A25281

X

GLAND AND WIPER - complete (For service, use 1 - L30744 wiper and 1 - A14535 retainer)

1шт.

10

L30744

GLAND

WIPER - self-retaining

1шт.

11

A14535

RETAINER

- wiper

1шт.

12

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.
