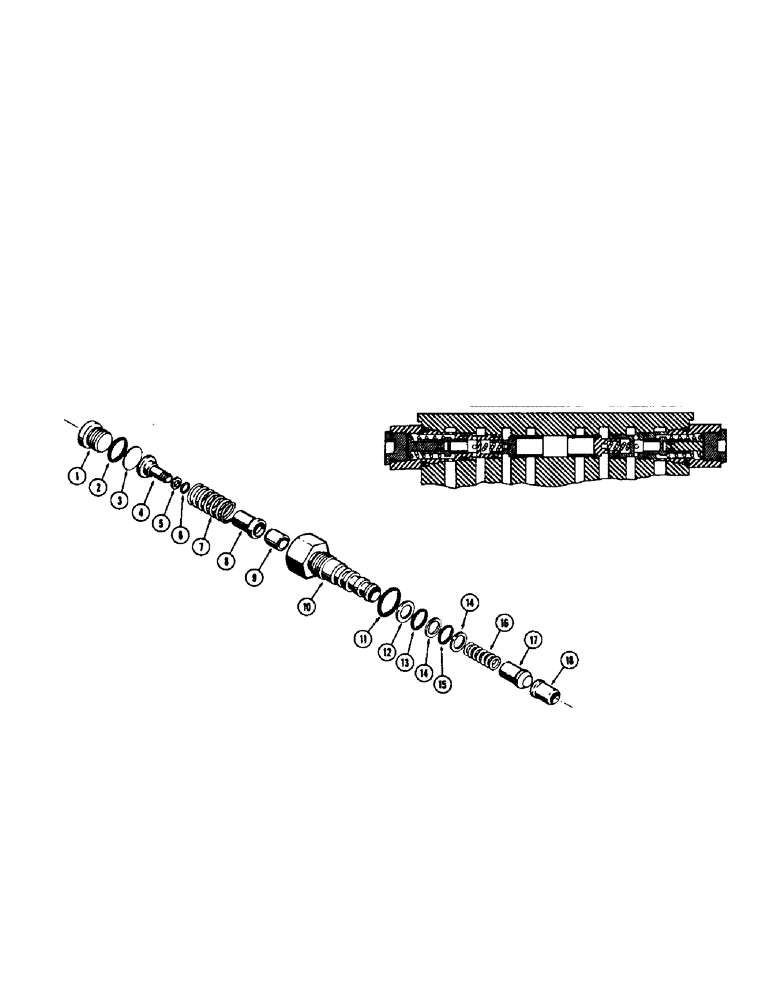

Запчасти Case 310G (268[1]) - SECONDARY RELIEF VALVE 2500 P.S.I. AND BELOW (07) - HYDRAULIC SYSTEM

1

D40354

PLUG

- secondary relief

1шт.

3

16917

SHIM

- spring guide (.0105") See D40355

1шт.

D40355

SHIM,.005" Thk

Spring guide, See 16917 .005" Thk

1шт.

4

D37073

GUIDE

- spring

1шт.

5

D40357

RING

- backup, spring guide

1шт.

6

D40356

O-RING

SEAL - "O" ring, spring guide

1шт.

7

D37178

NUT

SPRING - plunger

1шт.

8

D37074

PLUNGER

- relief valve

1шт.

9

D37075

SEAT

- plunger

1шт.

10

D37072

CAP

BODY - secondary relief

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Relief body (Large)

1шт.

12

D37071

RING

- backup, center "O" ring

1шт.

13

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief body (Center)

1шт.

14

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring

2шт.

15

D37149

O-RING,104 mm ID

SEAL - "O" ring, relief body (Small)

1шт.

16

D37067

SPRING

- poppet

1шт.

17

D37068

VALVE POPPET

POPPET - check valve

1шт.

18

D37069

SLEEVE

SEAT - poppet

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
