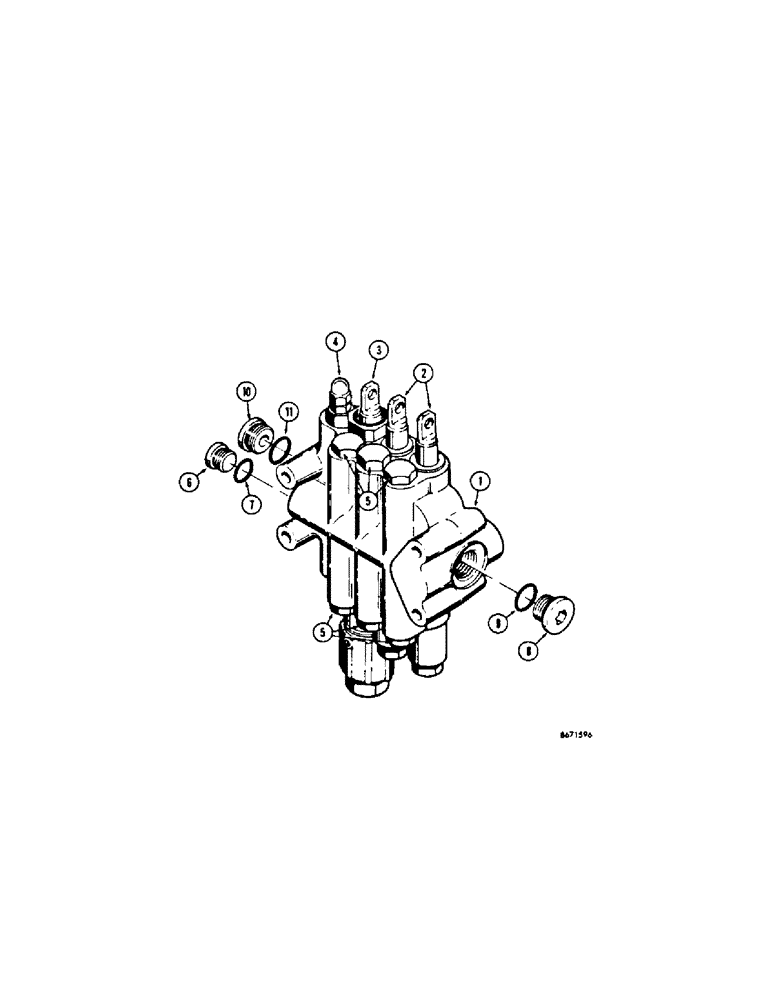

Запчасти Case 310G (258[1]) - D38116 EQUIPMENT CONTROL VALVE (THREE SPOOL) (07) - HYDRAULIC SYSTEM

1

D38116

VALVE - equipment control (Three spool) Parker VDP 22

1шт.

2

D37050

SPOOL

- three position (Parts list figure 270)

2шт.

D37051

SPOOL

- three position (Parts list figure 270)

2шт.

D37052

SPOOL

- three position (Parts list figure 270)

2шт.

D37053

SPOOL

- three position (Parts list figure 270)

2шт.

3

D41787

SPOOL - four position (Parts list figure 272)

1шт.

D41788

SPOOL - four position (Parts list figure 272)

1шт.

D41789

SPOOL - four position (Parts list figure 272)

1шт.

D41790

SPOOL

- four position (Parts list figure272)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief (Part list figure 268)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 268)

6шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

(If used) Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
