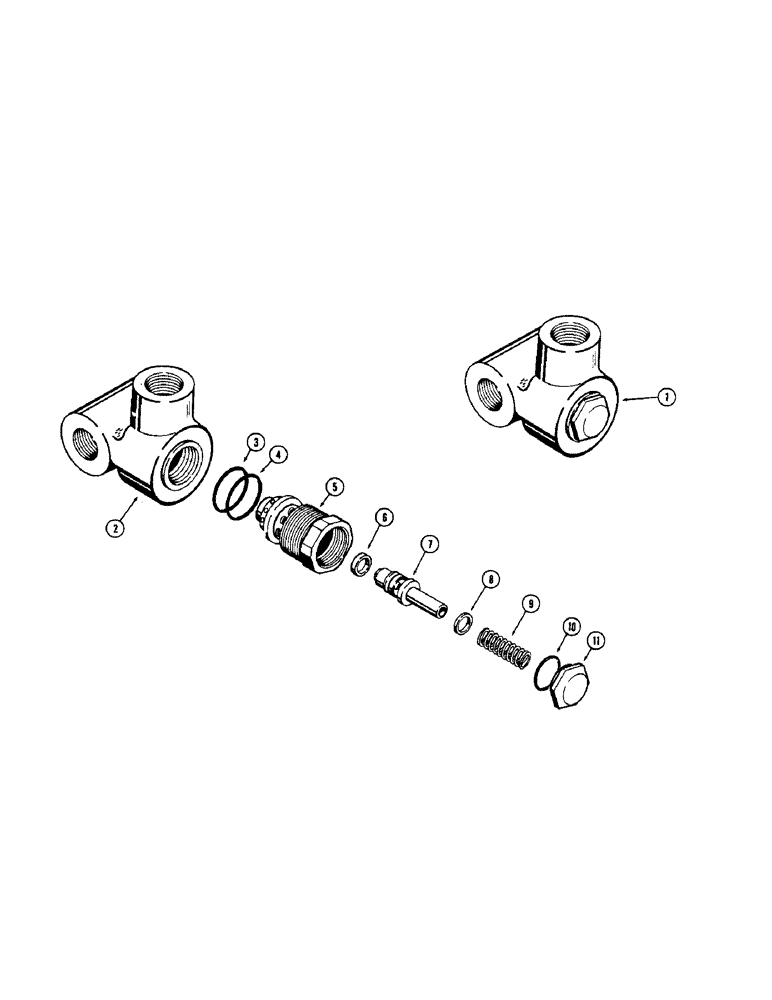

Запчасти Case 310G (236) - D39719 AND D40200 RELIEF VALVES (07) - HYDRAULIC SYSTEM

1

D39719

VALVE - relief (Early production models only) 3/8" ports (See D40200 relief valve)

1шт.

D40200

VALVE - relief (Late production models only) 1/2" ports (See D39719 relief valve)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve, relief

1шт.

3

D39718

O-RING,0.989" ID x 1.129" OD

SEAL - "O" ring (Inner)

1шт.

4

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O" ring

1шт.

5

D39715

BODY - relief

1шт.

6

D39714

RING

- piston

1шт.

7

D39713

VALVE POPPET

POPPET - relief

1шт.

8

D39712

SHIM

- poppet (.010")

1шт.

A55894

SHIM,.0209" Thk

Poppet .0209" Thk

1шт.

A55893

SHIM,.0418" Thk

Poppet .0418" Thk

1шт.

9

D39709

SPRING

1шт.

10

D39708

SEAL - "O" ring, cap

1шт.

11

D39716

PLUG

CAP - valve

1шт.
