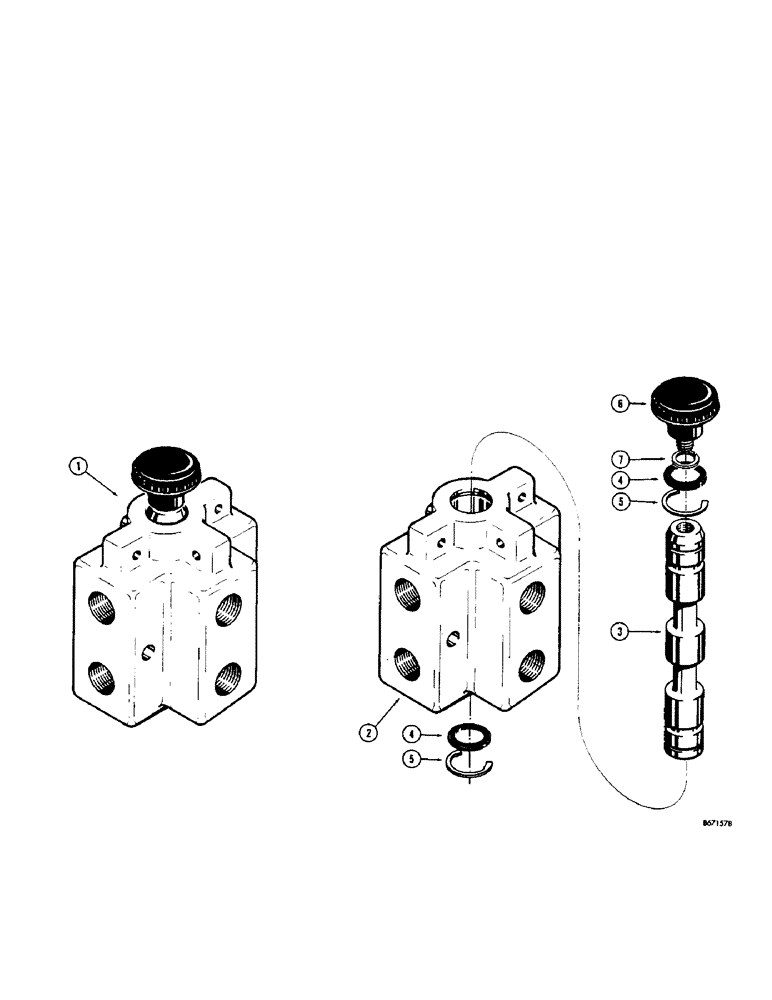

Запчасти Case 310G (236[1]) - D34424 DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

D34424

VALVE

- diversion, complete

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

4

D23691

O-RING

SEAL - quad ring, spool

2шт.

5

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

6

D34457

KNOB

contol

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
