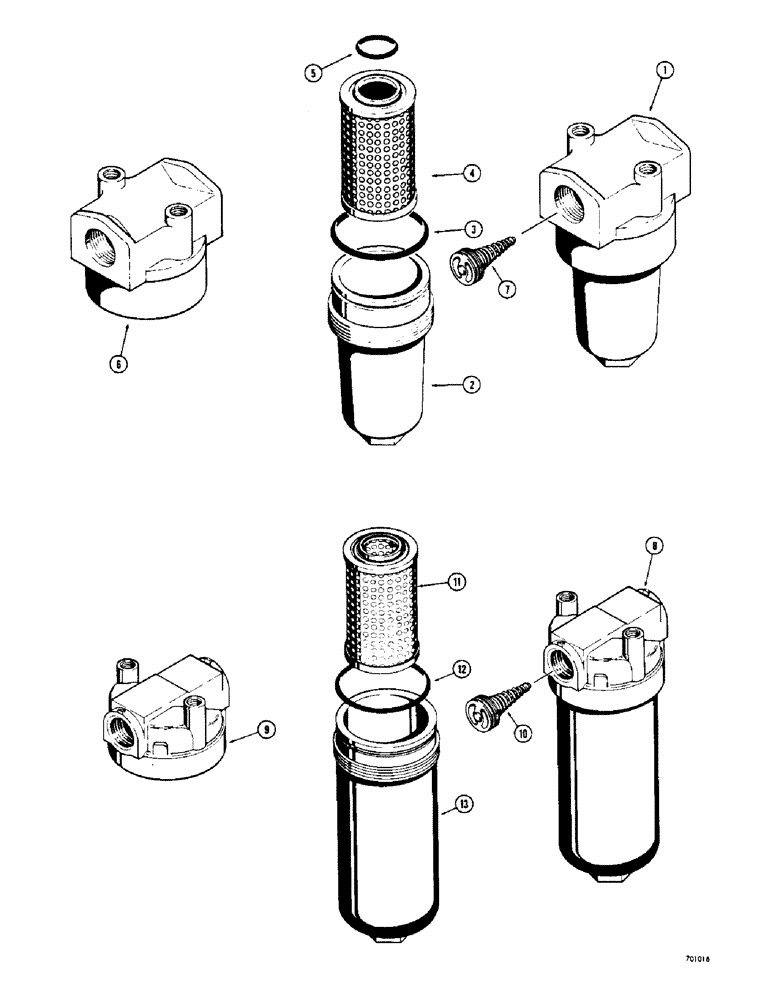

Запчасти Case 310G (234) - D32254 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

1

D32254

FILTER ASSY

- hydraulic oil

1шт.

2

R20645

HOUSING

- filter

1шт.

D32212

FILTER, ELEMENT

ELEMENT KIT - filter

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

D31874

HEAD

ASSEMBLY - filter

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

L13790

LOCK VALVE

VALVE - oil bypass (25 P.S.I)

1шт.

8

D43567

FILTER ASSY

- hydraulic oil

1шт.

D42440

FILTER HEAD

HEAD ASSEMBLY - filter, D43567 hydraulic

1шт.

9

NSS

NOT SOLD SEPARAT

HEAD - D43568 hydraulic oil filter

1шт.

10

D49377

LOCK VALVE

VALVE - oil, bypass (25 P.S.I), D43568 hydraulic oil filter

1шт.

D43800

FILTER, ELEMENT

ELEMENT KIT - D43568 hydraulic oil filter

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - D43568 hydraulic oil filter

1шт.

12

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43568 hydraulic oil filter

1шт.

13

D42439

HOUSING

- D43568 hydraulic oil filter

1шт.
