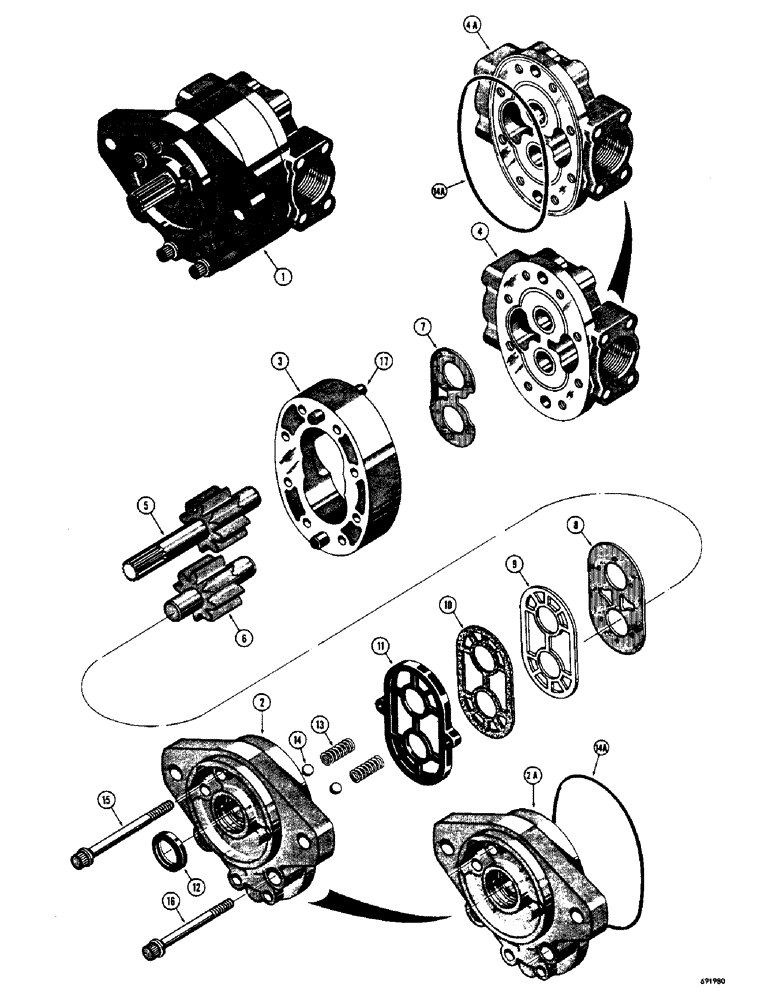

Запчасти Case 310G (232) - D41390 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

- hydraulic, Cessna no. 24527-1AAC (21 G.P.M. at 2000 R.P.M. and 2000 P.S.I)

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

1

87644746R

REMAN-HYD PUMP

310G, (S/N 3032301 TO 3039619), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

D31395

PLATE ASSY.

COVER - driveshaft end (When stock is exhausted, order D48879 cover and D48887 seal for service)

1шт.

2a

D48879

COVER

- drive shaft end

1шт.

3

D49371

HOUSING

BODY - center

1шт.

4

D31407

PLATE ASSY.

COVER - port end (When stock is exhausted, order D48883 cover and D48887 seal for service)

1шт.

4a

D48883

COVER

- port end

1шт.

D41421

GEAR-SET

GEAR SET - drive and idler (When stock is exhausted, use D49380 gear set)

1шт.

D49380

GEAR

SET - drive and idler

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR ASSEMBLY - idler

1шт.

D41318

KIT

- pump rebuild (When stock is exhausted, use D49374 kit)

1шт.

D49374

SERVICE KIT

KIT - pump rebuild

1шт.

7

D41322

PLATE

- thrust

1шт.

8

D41321

DIAPHRAGM

1шт.

9

A42305

GASKET

- protector

1шт.

10

A41244

GASKET

- backup

1шт.

11

D31397

SEAL

- diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

13

D31403

SPRING

- ball retaining

2шт.

14

D31404

BALL

- steel (13/32")

2шт.

14a

D48887

O-RING

SEAL - "O" ring (D49374 kit only)

2шт.

15

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - Ferry cap (3/8" - 16 NC x 3-1/4")

4шт.

16

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - Ferry cap (3/8" - 16 NC x 3-1/2")

4шт.

17

D49373

DOWEL

- body

2шт.
