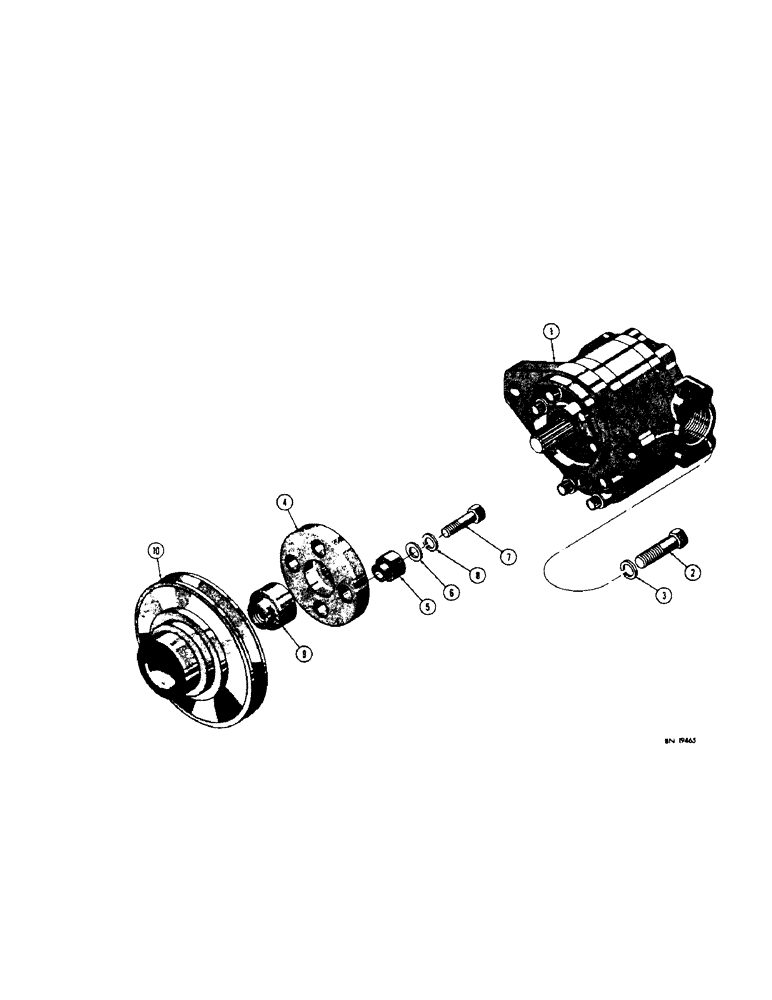

Запчасти Case 310G (230[1]) - PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

- hydraulic (Parts list page 232)

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

1

87644746R

REMAN-HYD PUMP

310G, (S/N 3032301 TO 3039619), Reman For New P/N D41390 & 87644746

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible

1шт.

5

G36905

BLOCK

AND BUSHING - flex coupling

4шт.

6

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- coupling bolt, special

4шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

8

92-7

LOCK WASHER,7/16"

4шт.

9

A35673

NUT

- fan drive pulley

1шт.

10

G11342

X

PULLEY - fan and generator drive

1шт.
