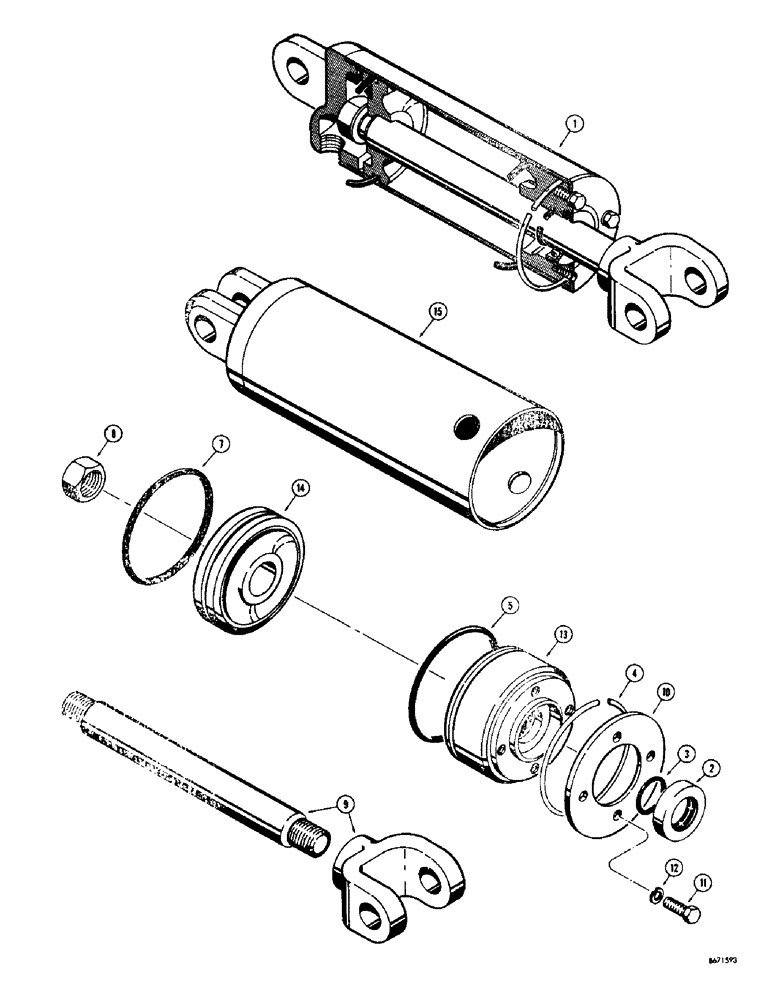

Запчасти Case 310G (228) - A11231 THREE POINT HITCH CYLINDER (07) - HYDRAULIC SYSTEM

1

A11231

CYLINDER

- three point hitch (4" I.D. x 6" stroke)

1шт.

A40760

KIT

- cylinder

1шт.

2

A26758

OIL SEAL

SEAL - wiper, piston rod

1шт.

3

A11251

SEALING RING

- "O" ring, piston rod

1шт.

4

A30896

RING

SNAP RING - cylinder head

1шт.

5

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

SEAL - "O" ring, cylinder head

1шт.

6

A30894

COPPER WASHER

GASKET - piston rod

1шт.

7

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

8

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, hex. (7/8" - 14 NF)

1шт.

9

4416AA

ROD AND YOKE - piston (1-1/8" dia.)

1шт.

10

A11249

PLATE - cylinder head

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

A11248

HEAD

- cylinder

1шт.

14

A8968

PISTON

- cylinder (Use A23534 piston, A30895 "O" ring and 2-A23535 rings for service)

1шт.

14

A23534

PISTON - cylinder

1шт.

15

A11247

TUBE - cylinder

1шт.
