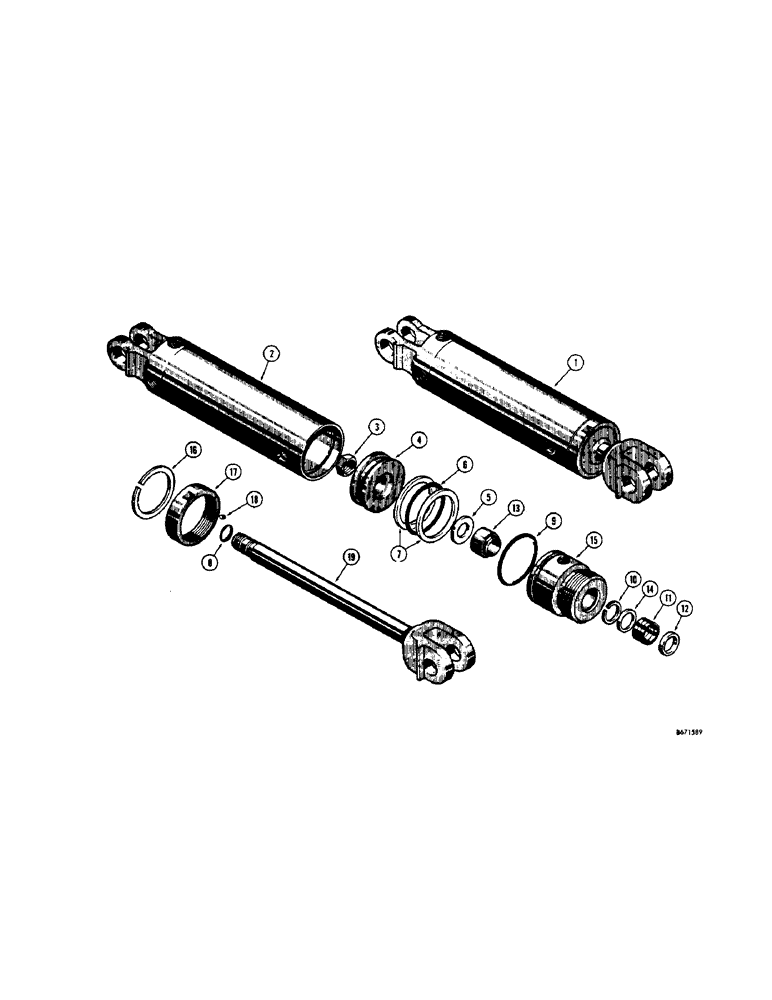

Запчасти Case 310G (226) - D38726 DOZER ANGLING CYLINDER (07) - HYDRAULIC SYSTEM

1

D38726

CYLINDER - angling (3" dia. x 8" stroke)

2шт.

2

D38753

TUBE - cylinder

1шт.

3

131-17

LOCK NUT

NUT - lock, hex. (7/8" - 14 NF)

1шт.

4

D38757

PISTON - 3" dia.

1шт.

5

D38758

WASHER

- piston

1шт.

D38807

SEAL PACKAGE

KIT - cylinder packing

1шт.

6

O7060AB

X

SEAL - "O" ring piston (Outer)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

8

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston (Inner)

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

D38748

SNAP RING,#162, 1.701, Int, Spiral

RING - retaining

1шт.

11

NSS

NOT SOLD SEPARAT

PACKING - rod

3шт.

12

NSS

NOT SOLD SEPARAT

ADAPTER - packing

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

14

D38761

WASHER

- packing

1шт.

15

D38762

GLAND - packing

1шт.

16

D38743

SNAP RING,3.00", Int, #300

gland 3.00", Int, #300

1шт.

17

D38746

CAP

- gland

1шт.

18

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, hex. socket head (#8 - 32 NC x 1/2")

1шт.

19

D38754

ROD

- piston, 1-1/8" dia.

1шт.
