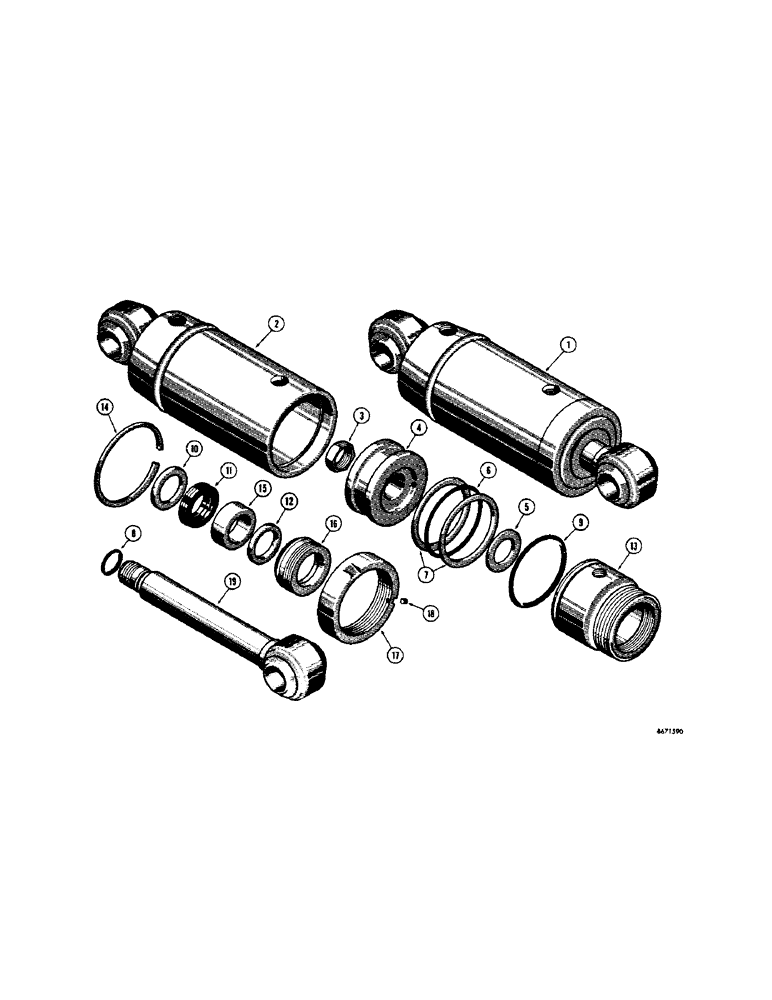

Запчасти Case 310G (226[1]) - D38727 DOZER TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

D38727

CYLINDER - tilt (3-1/2" dia. x 2-9/16" stroke)

1шт.

2

D38763

TUBE - cylinder

1шт.

3

131-19

LOCK NUT,1"-14, GB

NUT - lock, hex. (1" - 14 NF)

1шт.

4

D38765

PISTON - 3-1/2" dia.

1шт.

5

D38766

WASHER - piston

1шт.

D38809

SEAL PACKAGE

KIT - cylinder packing

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston (Outer)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, piston "O" ring

2шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O" ring, piston (Inner)

1шт.

9

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, rod packing

1шт.

11

NSS

NOT SOLD SEPARAT

PACKING - piston rod

3шт.

12

D38772

WIPER - piston rod

1шт.

13

D38768

GLAND - packing

1шт.

14

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , gland 3.50", Int, #350

1шт.

15

D38771

BEARING - packing

1шт.

16

D38773

RING - compression

1шт.

17

D38775

CAP - gland

1шт.

18

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, hex. socket head (#8 - 32 NC x 1/2")

1шт.

19

D38764

ROD

- piston, 1-1/4" dia.

1шт.
