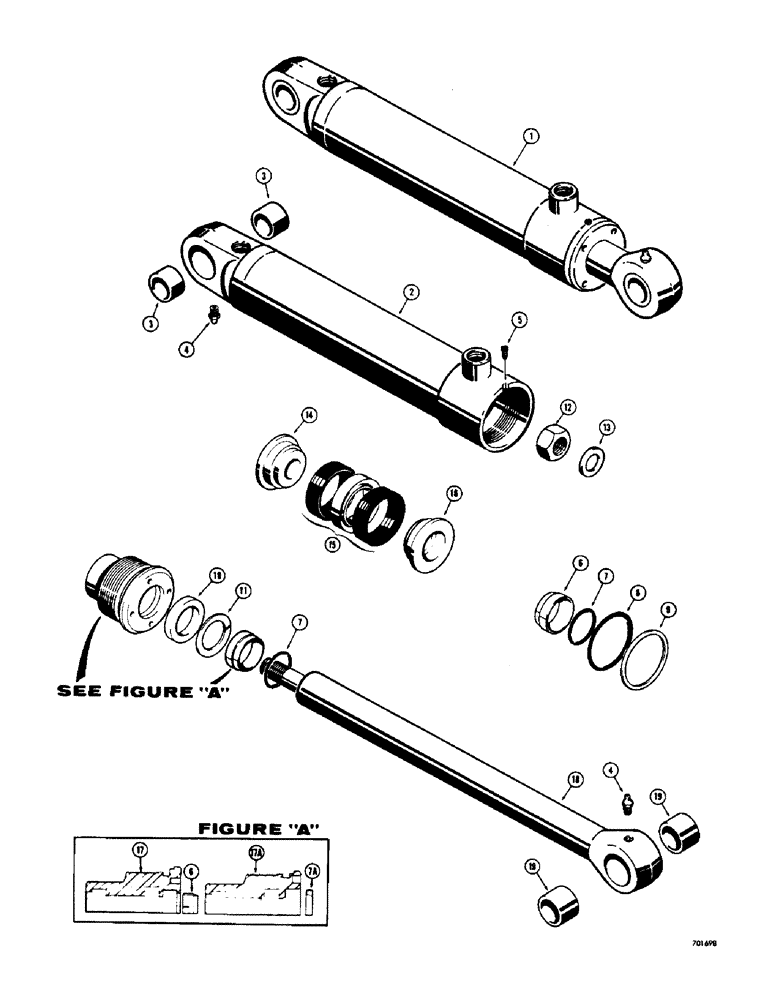

Запчасти Case 310G (222) - ANGLING CYLINDERS (POWER ANGLING DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D28163
CYLINDER - angling, L.H. (3-1/2" I.D. x 9-5/8" stroke) uses split snap in outer rod wiper
1шт.
These cylinders use D37356 and D42873 gland packing kits. For kit components, see Figure 284.
1шт.
D29919
CYLINDER
- angling, R.H. (3-1/2" I.D. x 9-5/8" stroke) uses split snap in outer rod wiper
1шт.
These cylinders use D37356 and D42873 gland packing kits. For kit components, see Figure 284.
1шт.
2
D28385
TUBE - cylinder, D28163 cylinder
1шт.
D29925
TUBE - cylinder, D29919 cylinder
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube (D28385 and D29925 tubes)
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NF x 1/4"
1шт.
6
D27432
SHIM
- rod
2шт.
7
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O" ring, wiper (Use with D27431 gland)
2шт.
8
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
9
D27434
BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk
- backup, gland seal
1шт.
10
D36970
CUP
SEAL - rod
1шт.
11
D28499
RING
- backup, rod seal
1шт.
12
131-19
LOCK NUT,1"-14, GB
NUT - hex. lock (1/4" - 14 NF)
1шт.
13
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- special
1шт.
14
D28367
PISTON
- split, nut end
1шт.
15
D36963
PACKING
- piston
1шт.
16
D28369
PISTON
- split, rod end
1шт.
17
D45069
GLAND
- packing
1шт.
18
D28167
ROD ASSY.
ROD - piston (1-3/4" dia.)
1шт.
19
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- rod
2шт.
1
G32582
CYLINDER
- angling, R.H. (3-1/2" I.D. x 9-5/8" stroke) uses press in outer rod wiper
1шт.
These cylinders use G32291 cylinder packing kits. For kit components, see Figure 284.
1шт.
1
G32581
CYLINDER
- angling, L.H. (3-1/2" I.D. x 9-5/8" stroke) uses press in outer rod wiper
1шт.
These cylinders use G32291 cylinder packing kits. For kit components, see Figure 284.
1шт.
2
D29925
TUBE - cylinder, R.H., uses press in outer rod wiper
1шт.
2
D28385
TUBE - cylinder, L.H., uses press in outer rod wiper
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube (R.H. and L.H.), uses press in outer rod wiper
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT), uses press in outer rod wiper
2шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper
1шт.
6
D27432
SHIM
- rod, inner, uses press in outer
1шт.
Part of Gland Assembly P/N G32743
1шт.
7
NOT REQUIRED
1шт.
7a
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER rod , outer, uses press in outer
1шт.
Part of Gland Assembly P/N G32743
1шт.
8
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
SEAL - "O" ring, gland, uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32743
1шт.
9
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- backup, gland seal, uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32743
1шт.
10
D36970
CUP
SEAL - uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32743
1шт.
11
NOT REQUIRED
1шт.
12
131-19
LOCK NUT,1"-14, GB
NUT - hex. lock (1/4" - 14 NF), uses press in outer rod wiper
1шт.
13
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- special, uses press in outer rod wiper
1шт.
14
D28367
PISTON
- split, nut end, uses press in outer rod wiper
1шт.
15
D36963
PACKING
- piston, uses press in outer rod wiper
1шт.
16
D28369
PISTON
- split, rod end, uses press in outer rod wiper
1шт.
17a
NSS
NOT SOLD SEPARAT
GLAND - packing (Use G32743 gland assembly), uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32743
1шт.
18
D28167
ROD ASSY.
ROD - piston (1-3/4" dia.), uses press in outer wiper
1шт.
19
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- rod, uses press in outer wiper
2шт.
Выбрано товаров: 53
