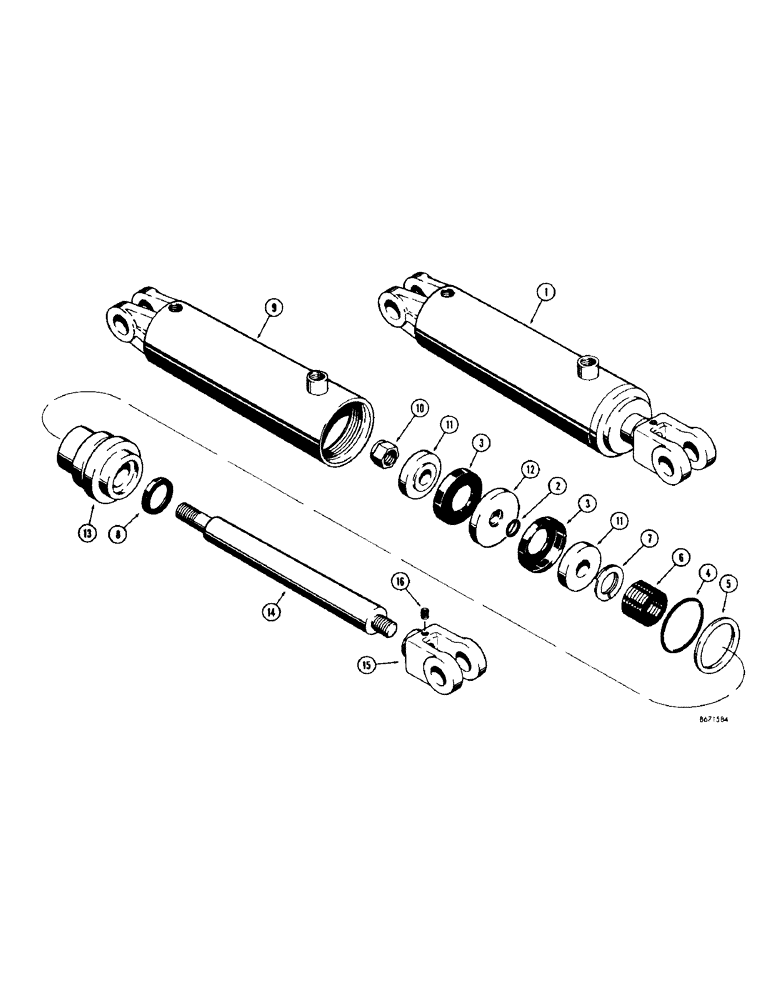

Запчасти Case 310G (218) - D39720 GRAPPLE CYLINDER (07) - HYDRAULIC SYSTEM

1

D39720

CYLINDER - grapple (3" I.D. x 8" stroke)

1шт.

D39721

KIT

- cylinder

1шт.

2

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring

1шт.

3

D39728

SEAL - piston

2шт.

4

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

D39729

WASHER - backup

1шт.

6

D39730

PACKING - rod, set of seven

1шт.

7

D40170

RING - Spirolox

1шт.

8

D40171

SEAL - rod wiper

1шт.

9

D39722

TUBE - cylinder

1шт.

10

131-17

LOCK NUT

NUT - lock, hex. (7/8" - 14 NF)

1шт.

11

D39726

RING - retaining, piston

2шт.

12

D39725

PISTON

1шт.

13

D39723

GLAND - cylinder

1шт.

14

D39724

ROD - piston (1-1/4" dia.)

1шт.

15

D39727

YOKE - rod, piston

1шт.

16

D40172

SCREW - set (5/16" - 18 NC x 1/2")

1шт.
