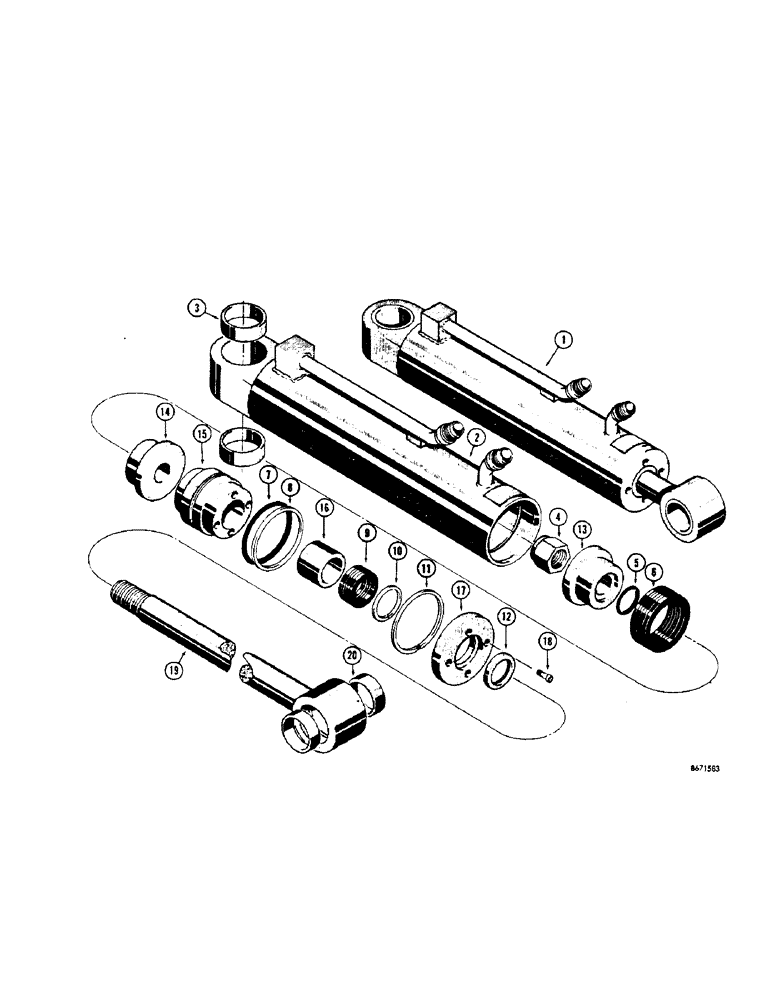

Запчасти Case 310G (216[1]) - D39096 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

1

D39096

CYLINDER - clam (3" I.D. x 7-3/4" stroke)

1шт.

2

D39102

TUBE - cylinder

1шт.

3

D39101

BUSHING - tube eye

2шт.

D39113

KIT

- cylinder

1шт.

4

131-39

NUT,1"-14

NUT - lock, hex. (1" - 14 NF)

1шт.

5

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D39106

MISC PACKAGING

PACKING - piston

1шт.

7

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

D39108

WASHER

RING - backup

1шт.

9

D39104

MISC PACKAGING

PACKING - rod

1шт.

10

D39099

SHIM,.030" Thk

1шт.

11

D39111

SNAP RING,#300, 3.188", Int, Spiral

RING - retaining

1шт.

12

D39107

SEAL

- rod wiper

1шт.

13

D39110

PISTON - half, nut end

1шт.

14

D39109

PISTON - half, eye end

1шт.

15

D39103

GLAND - cylinder

1шт.

16

D39098

BUSHING

1шт.

17

D39097

CAP - cylinder tube

1шт.

18

D39105

HHCS - special

4шт.

D39100

ROD ASSEMBLY - piston (When stock is exhausted, use D42424 rod for service)

1шт.

D42424

ROD ASSEMBLY - piston

1шт.

19

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

20

D39101

BUSHING - split type (Used in D39100 rod only)

2шт.

20

D42423

BUSHING

- non-split type (Used in D42424 rod only)

2шт.
