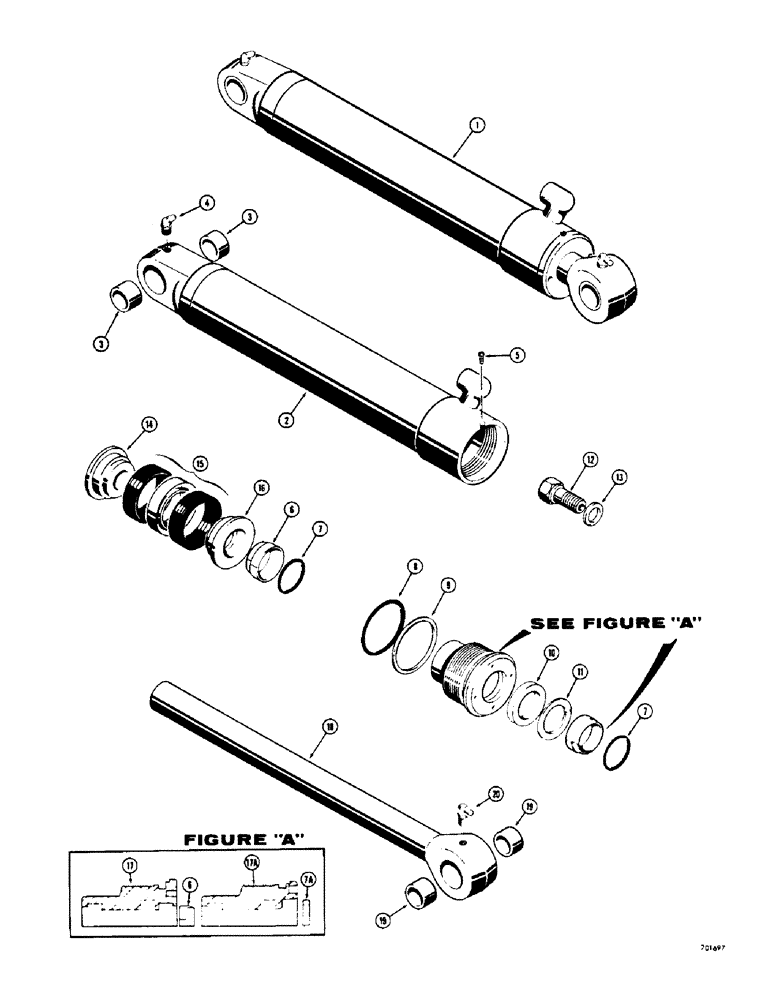

Запчасти Case 310G (210) - LOADER LIFT CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D33121
CYLINDER
- lift, R.H. (3" I.D. x 31" stroke) uses split snap in outer rod wiper
1шт.
These cylinders use D37355 and D42872 gland packing kits. For kit components, see Figure 280.
1шт.
D33122
CYLINDER
- lift. L.H. (3" I.D. x 31" stroke) uses split snap in outer rod wiper
1шт.
These cylinders use D37355 and D42872 gland packing kits. For kit components, see Figure 280.
1шт.
2
D33272
TUBE
- cylinder, R.H.
1шт.
D33273
TUBE
- cylinder, L.H.
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tube (D33272 tube and D33273 tube)
2шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 45 degrees (1/8" NPT)
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4"
1шт.
6
D27432
SHIM
- rod
2шт.
7
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O" ring, wiper (If used)
2шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland
1шт.
9
D28049
RING
- backup, gland seal
1шт.
10
D36970
CUP
SEAL - rod
1шт.
11
D28499
RING
- backup, rod seal
1шт.
12
D32861
BOLT
- special
1шт.
13
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- special
1шт.
14
D28896
PISTON
- split, bolt end
1шт.
15
D28374
PACKAGE,SERVICE
PACKING - piston
1шт.
16
D28897
PISTON
- split, rod end
1шт.
17
D45068
GLAND
- packing
1шт.
18
D33267
ROD
- piston (1-3/4" dia.)
1шт.
19
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- rod eye
2шт.
20
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
1
G32573
CYLINDER ASSY.
CYLINDER - lift, R.H. (3" I.D. x 31" stroke) uses press in outer rod wiper
1шт.
These cylinders use G32289 cylinder packing kits. For kit components, see Figure 280.
1шт.
1
G32574
CYLINDER
- lift, L.H. (3" I.D. x 31" stroke) uses press in outer rod wiper
1шт.
These cylinders use G32289 cylinder packing kits. For kit components, see Figure 280.
1шт.
2
D33272
TUBE
- cylinder, R.H., uses press in outer rod wiper
1шт.
2
D33273
TUBE
- cylinder, L.H., uses press in outer rod wiper
1шт.
3
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
- tubes (R.H. & L.H.), uses press in outer rod wiper
2шт.
4
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 45 degrees (1/8" NPT), uses press in outer rod wiper
1шт.
5
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper
1шт.
6
D27432
SHIM
- inner, uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32735
1шт.
7
NOT REQUIRED
1шт.
7a
D95143
WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk
WIPER - rod, outer, uses press in outer r
1шт.
Part of Gland Assembly P/N G32735
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
SEAL - "O" ring, gland, uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32735
1шт.
9
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
- backup, uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32735
1шт.
10
D36970
CUP
SEAL - uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32735
1шт.
11
NOT REQUIRED
1шт.
12
D32861
BOLT
- special, uses press in outer rod wiper
1шт.
13
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- special, uses press in outer rod wiper
1шт.
14
D28896
PISTON
- split, bolt end, uses press in outer rod wiper
1шт.
15
D28374
PACKAGE,SERVICE
PACKING - piston, uses press in outer rod wiper
1шт.
16
D28897
PISTON
- split, rod end, uses press in outer wiper
1шт.
17a
NSS
NOT SOLD SEPARAT
GLAND - packing (Use G32735 gland assembly), uses press in outer rod wiper
1шт.
Part of Gland Assembly P/N G32735
1шт.
18
D33267
ROD
- piston (1-3/4" dia.), uses press in outer wiper
1шт.
19
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- rod eye, uses press in outer wiper
2шт.
20
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Uses press in outer rod wiper 90º, 1/8" NPT x .84" lg
1шт.
