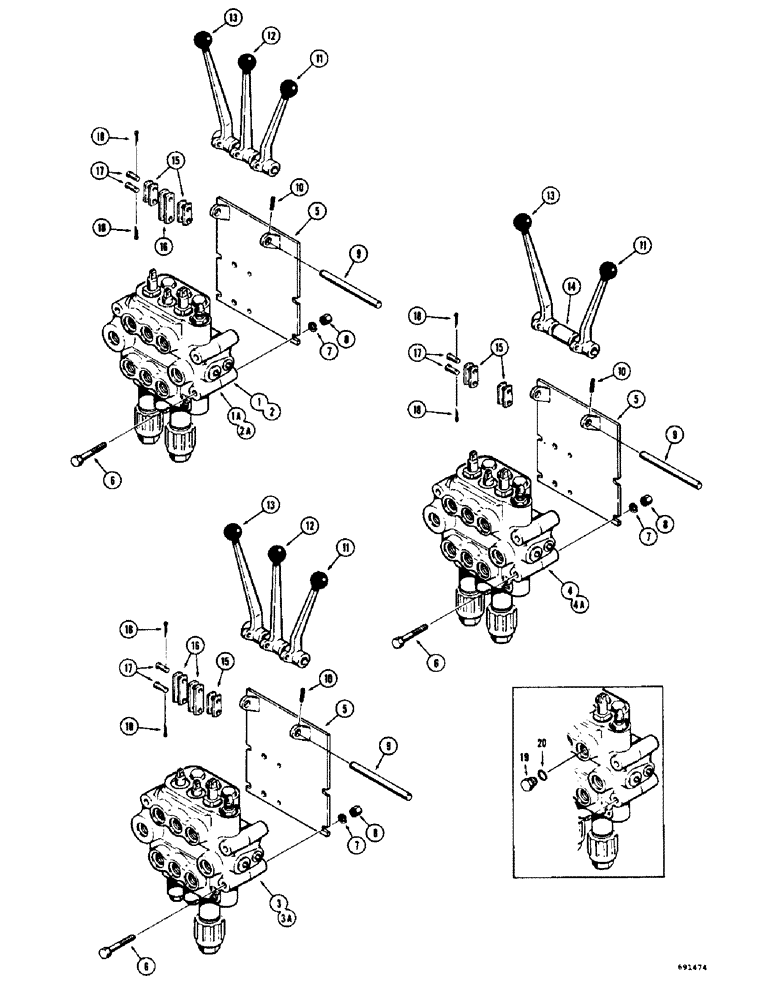

Запчасти Case 310G (208) - EQUIPMENT CONTROL VALVES AND LEVERS (THREE SPOOL) (07) - HYDRAULIC SYSTEM

1

D38115

VALVE - three spool (Power angle or power tilt dozers with three point hitch, ripper or pull behind hydraulics) Parts list figure 256 (For service use D45477 valve)

1шт.

1a

D45477

VALVE - three spool (Power angle or power tilt dozers with three point hitch, ripper or pull behind hydraulics) Parts list figure264

1шт.

2

D35213

VALVE - three spool (Loader with ripper, three point hitch or pull behind hydraulics, clam type bucket or logging attachment) Parts list figure258 (For service use D45041 service)

1шт.

2a

D45041

LOCK VALVE

VALVE - three spool (Loader with ripper, three point hitch, or pull behind hydraulics, clam type bucket or logging attachment and diversion valve) Parts list figure262

1шт.

3

D38116

VALVE - three spool, power angle-tilt dozer with or without diversion valve (Parts list figure 258) For service use D45044 valve

1шт.

3a

D45044

VALVE

- three spool, power angle-tilt dozer with or without diversion valve (Parts list figure 266)

1шт.

4

D38115

VALVE - three spool (Mechanical angling dozer with three point hitch, ripper or pull behind hydraulics) Parts list figure 256 (For service use D45587 valve)

1шт.

4a

D45587

VALVE - three spool (Mechanical angling dozer with three point hitch, ripper or pull behind hydraulics) Parts list figure 264

1шт.

5

D38088

BRACKET - lever mounting

1шт.

6

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- hex. (3/8")

4шт.

9

D33251

SHAFT

- lever mounting

1шт.

10

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

11

D33256

LEVER - valve control, L.H.

1шт.

12

D33254

LEVER - valve control, center (Loader without anti-rollback and dozer models)

1шт.

D43788

LEVER - valve control, center (Loader with anti-rollback)

1шт.

13

D33255

LEVER

- valve control, R.H.

1шт.

14

D33252

SPACER - lever

1шт.

15

D25483

LINK

- lever to valve (Short)

1шт.

16

D38089

LINK

- lever to valve (Long)

1шт.

17

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Valve port (If used) Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
