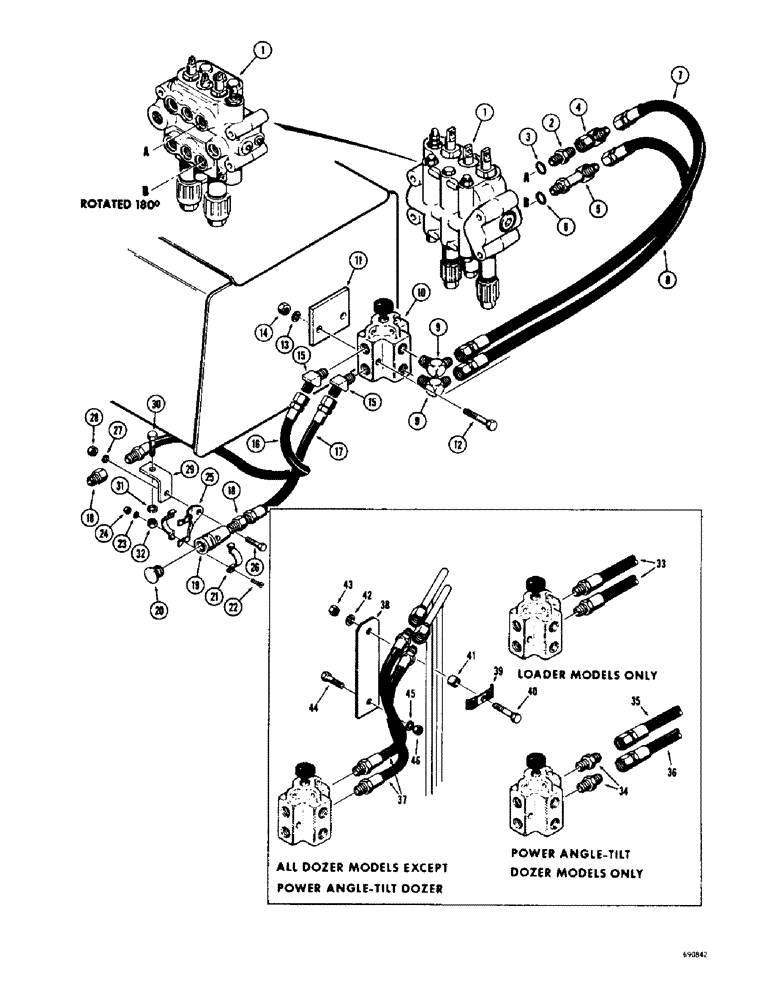

Запчасти Case 310G (204) - PULL BEHIND HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figures 206 and 208 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

50003

ELBOW

Special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D39222

SPARE PART Control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

Control valve to diversion valve (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

Diversion (Parts list figure 236)

1шт.

11

D34426

SPARE PART Mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

2шт.

16

D28106

SPARE PART Diversion valve to pull behind coupling (19-1/2" long)

1шт.

17

D39223

SPARE PART Diversion valve to pull behind coupling (13-3/4" long)

1шт.

18

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

Special

2шт.

19

A28542

COUPLING, QUICK, FEM

Pull behind, female (Parts list figure 238)

2шт.

A28541

COUPLING, BREAK AWAY

Pull behind, male (Parts list figure 238)

2шт.

20

A22768

PLUG

Dust

2шт.

21

A27423

CLAMP

Pull behind coupling

4шт.

22

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

4шт.

23

192-6

LOCK WASHER,#8

4шт.

24

129-6

NUT,#8-32

4шт.

25

A27360

BRACKET

Mounting

2шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

25-106

NUT,3/8"-16, G5

1шт.

29

D39226

SPARE PART Mounting, pull behind coupling

1шт.

30

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

31

92-7

LOCK WASHER,7/16"

1шт.

32

25-107

NUT,7/16"-14, G5

1шт.

33

D20193

SPARE PART Diversion valve to lift cylinder crossover tubes (26" long) Use on standard loader models only

2шт.

34

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

2шт.

35

D39221

SPARE PART Upper diversion valve port to lift cylinder - closed end (47-1/2" long) Use on power angle-tilt dozer only

1шт.

36

D39220

HOSE ASSY.

Lower diversion valve port to lift cylinder - rod end (43" long) Use on power angle-tilt dozer only

1шт.

37

D39224

SPARE PART Diversion valve to lift cylinder tubes (12-1/2" long) Use on all models except power angle-tilt dozer

2шт.

38

D39225

SPARE PART Mounting, tube clamp

1шт.

39

R17319

CLAMP

PLATE - clamp, tube

1шт.

40

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

41

D33552

BUSHING

SPACER - tube clamp

1шт.

42

195-21

WASHER,5/16"

Flat

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

1шт.
