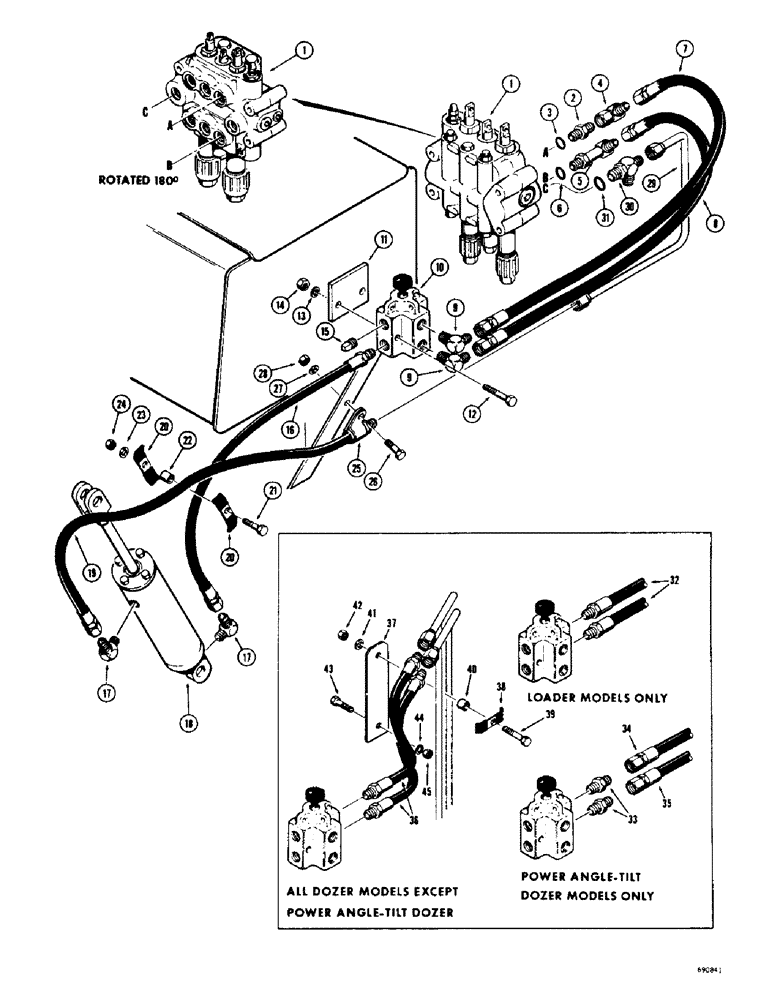

Запчасти Case 310G (200) - THREE POINT HITCH HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figures 206 and 208 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Straight

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

50003

ELBOW

Special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D39222

SPARE PART Control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

Control valve to diversion port (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

Diversion (Parts list figure 236)

1шт.

11

D34426

SPARE PART Mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

15

221-15

PLUG,Sq Hd, 3/4"-14

1шт.

16

D34462

HOSE

Diversion valve to hydraulic cylinder, closed end (43-3/4" long)

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

18

A11231

CYLINDER

Hydraulic, three point hitch (Parts list figure 228)

1шт.

19

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

Hydraulic cylinder, rod end to control valve (40" long)

1шт.

20

D33316

CLAMP

PLATE - clamp hose

2шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

22

D33829

BUSHING

SPACER - hose clamp

1шт.

23

195-21

WASHER,5/16"

Flat

1шт.

24

131-4

LOCK NUT,5/16"-18, GB

1шт.

25

R11405

CLAMP

Hose

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

27

195-21

WASHER,5/16"

Flat

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

1шт.

29

D33934

SPARE PART Hydraulic cylinder, rod end to control valve

1шт.

30

D33933

X

TEE - sepcial

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

32

D20193

SPARE PART Diversion valve to lift cylinder crossover tubes (26" long) Use on standard loader models only

2шт.

33

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

Straight

2шт.

34

D39221

SPARE PART Upper diversion valve port to lift cylinder - closed end (47-1/2" long) Use on power angle-tilt dozer models only

1шт.

35

D39220

HOSE ASSY.

Lower diversion valve port to lift cylinder - rod end (43" long) Use on power angle-tilt dozer models only

1шт.

36

D39224

SPARE PART Diversion valve to lift cylinder tubes (12-1/2" long) Use on all dozer models except power angle-tilt dozer

2шт.

37

D39225

SPARE PART Mounting, tube clamp

1шт.

38

R17319

CLAMP

PLATE - clamp, tube

1шт.

39

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

40

D33552

BUSHING

SPACER - tube clamp

1шт.

41

195-21

WASHER,5/16"

Flat

1шт.

42

131-4

LOCK NUT,5/16"-18, GB

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

1шт.
