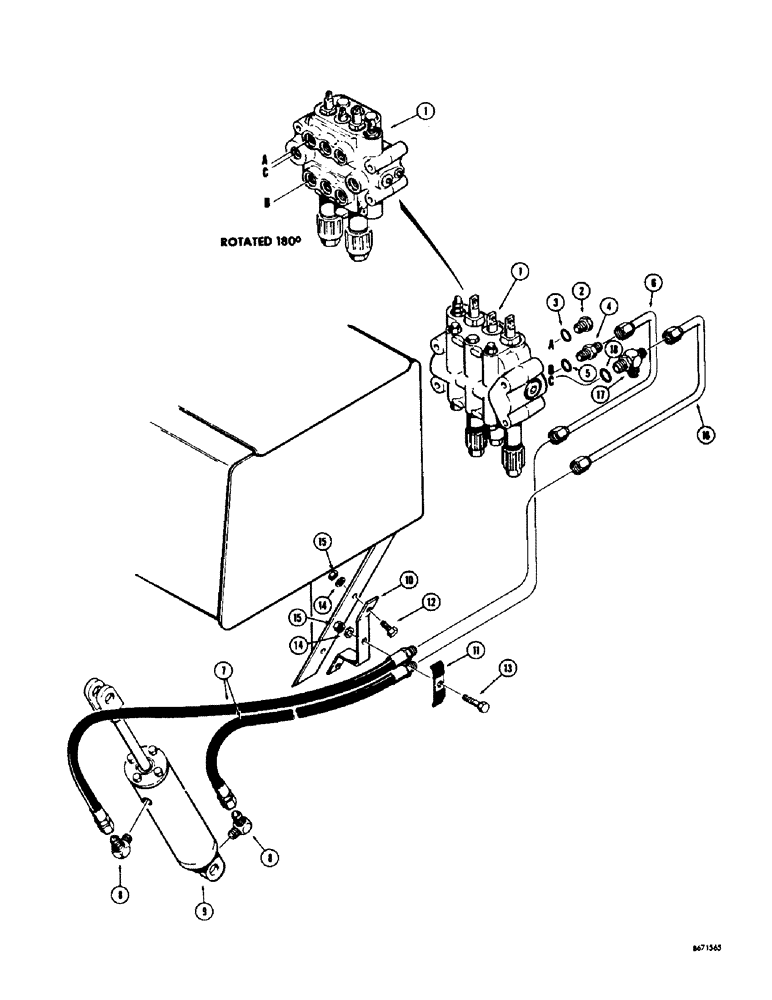

Запчасти Case 310G (198) - THREE POINT HITCH HYDS., (MODELS W/OUT DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figures 206 and 208 for proper valve

1шт.

2

86512512

PLUG,7/8" - 14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

D38147

SPARE PART Lower control valve port to hydraulic cylinder - closed end

1шт.

7

D21955

HOSE - control valve to hydraulic cylinder (28" long)

2шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

9

A11231

CYLINDER

Hyd., three point hitch (Parts list figure 228)

1шт.

10

D38331

SPARE PART Mounting, hose clamp

1шт.

11

D33316

CLAMP

PLATE - clamp, hose

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

195-21

WASHER,5/16"

Flat

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

3шт.

16

D38153

SPARE PART Hydraulic cylinder - rod end to control valve - return port

1шт.

17

D33933

X

TEE - adjustable

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
