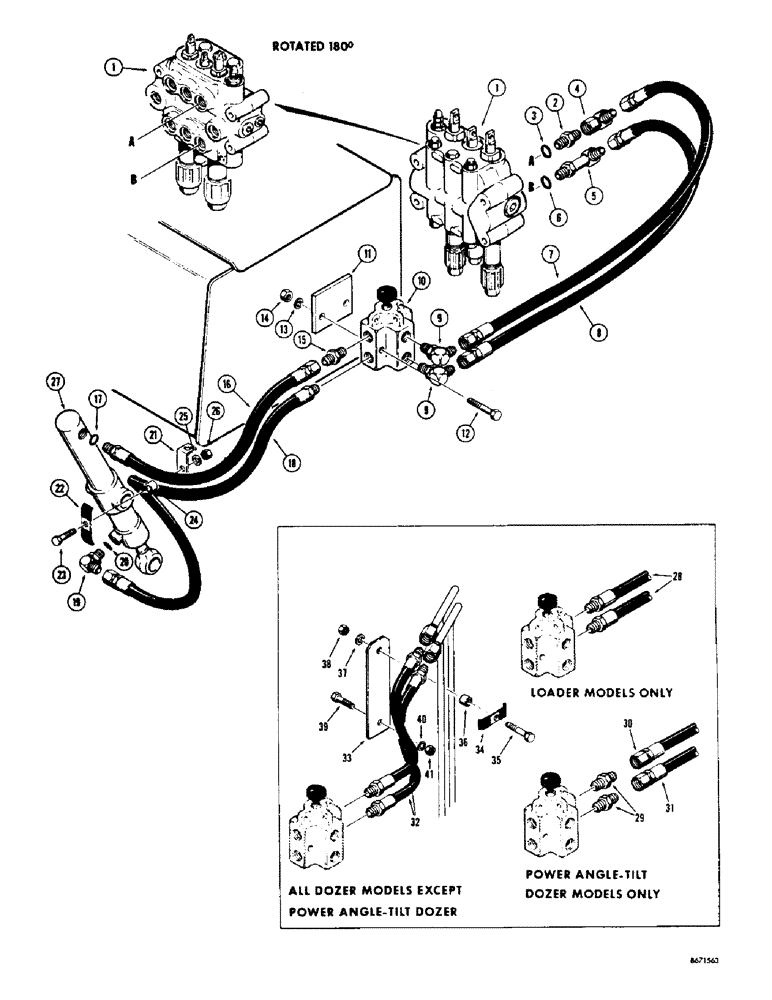

Запчасти Case 310G (192) - RIPPER HYDRAULICS, (MODELS WITH DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figures 206 and 208 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

50003

ELBOW

Special, 90 degrees

1шт.

5

D23143

FITTING

ELBOW - special, 90 degrees

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D39222

SPARE PART Control valve to diversion valve (17-1/2" long)

1шт.

8

19209

HOSE ASSY.

Control valve to diversion valve (24" long)

1шт.

9

D29569

X

ELBOW - special, 90 degrees

2шт.

10

D34424

VALVE

Diversion (Parts list figure 236)

1шт.

11

D34426

SPARE PART Mounting, diversion valve

1шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

2шт.

15

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

1шт.

16

D34427

SPARE PART Upper diversion valve port to ripper cylinder - closed end (37-1/2" long)

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

D34462

HOSE

Lower diversion valve port to ripper cylinder - rod end (43-3/4" long)

1шт.

19

R20839

FITTING

ELBOW - special

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

D34425

SPARE PART Mounting, hose clamp

1шт.

22

D33316

CLAMP

PLATE, hose

1шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

24

D33829

BUSHING

SPACER - clamp

1шт.

25

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

1шт.

26

131-4

LOCK NUT,5/16"-18, GB

1шт.

27

REF

INSTRUCTION

CYLINDER - ripper (See figure 230 and 231A for cylinders)

1шт.

28

D20193

SPARE PART Diversion valve to lift cylinder crossover tubes (26" long) Use on standard loader models only

2шт.

29

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

2шт.

30

D39221

SPARE PART Upper diversion valve port to lift cylinder - closed end (47-1/2" long) Use on power angle-tilt dozer only

1шт.

31

D39220

HOSE ASSY.

Lower diversion valve port to lift cylinder - rod end (43" long) Use on power angle-tilt dozer only

1шт.

32

D39224

SPARE PART Diversion valve to lift cylinder tubes (12-1/2" long) Use on all dozer models except power angle-tilt dozer

2шт.

33

D39225

SPARE PART Mounting, tube clamp

1шт.

34

R17319

CLAMP

PLATE, tube

1шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

36

D33552

BUSHING

SPACER - tube clamp

1шт.

37

195-21

WASHER,5/16"

Flat

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

25-106

NUT,3/8"-16, G5

1шт.
