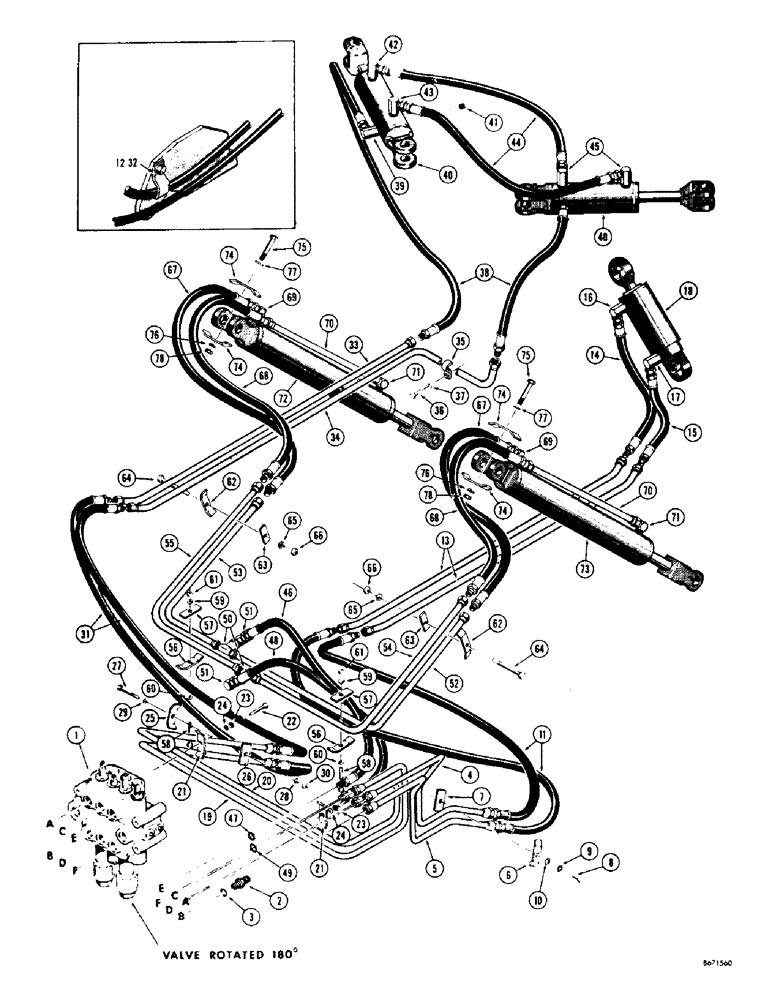

Запчасти Case 310G (184) - POWER ANGLE - TILT DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figure 206 and 208 for proper vlave

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Angle and tilt cylinder ports

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D40150

TUBE - upper valve port to lower tilt cylinder port

1шт.

5

D40149

SPARE PART Lower valve port to upper tilt cylinder port

1шт.

6

D38732

SPARE PART Tilt cylinder tubes, at valve

1шт.

7

D38733

SPARE PART Tube clamp

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

2шт.

11

D38801

HOSE ASSY.

To tilt cylinder (36" long)

2шт.

12

D38731

CLAMP - tilt cylinder hoses

1шт.

13

D38782

SPARE PART To tilt cylinder

2шт.

14

D38788

HOSE ASSY.

Tilt cylinder upper port (18" long)

1шт.

15

D38790

SPARE PART Tilt cylinder lower port (12-1/2" long)

1шт.

16

218-960

PIVOT ASSY.

ELBOW - tilt cylinder upper port

1шт.

17

218-935

45 ELBOW,45 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

Tilt cylinder lower port

1шт.

18

D38727

SPARE PART Tilt, 3-1/2" dia. x 2-9/16" stroke (Parts list figure 226)

1шт.

19

D40152

SPARE PART Upper valve port to rear port of LH angle cylinder

1шт.

20

D40151

SPARE PART Lower valve port to rear port of RH angle cylinder

1шт.

21

D38732

SPARE PART Angle cylinder tubes to heel plate

2шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

2шт.

25

D38732

SPARE PART Angle cylinder tubes at LH side of crawler

1шт.

26

D38733

SPARE PART Tube clamp

1шт.

27

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

31

D38802

SPARE PART To angle cylinders (43" long)

2шт.

32

D38731

CLAMP - angle cylinder hoses

1шт.

33

D38780

SPARE PART To LH angle cylinder

1шт.

34

D38781

SPARE PART To RH angle cylinder

1шт.

35

D38722

CLAMP - tube to RH angle cylinder at front "C" frame

1шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

D38789

HOSE

To rear port of angle cylinders (20" long)

2шт.

39

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

LH angle cylinder, rear inlet

1шт.

40

D38726

SPARE PART Angle, 3" dia. x 8" stroke (Parts list figure 226)

2шт.

41

221-843

PLUG,Hex Soc, 3/8"-18

Allen head, countersunk

2шт.

42

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

LH angle cylinder, front

1шт.

43

D38756

SPARE PART ELBOW - LH angle cylinder, rear crossover

1шт.

44

D38793

SPARE PART Angle cylinder crossover (22" long)

2шт.

45

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

RH angle cylinder (Front and rear ports)

2шт.

46

D40153

SPARE PART Upper valve port to lift cylinder manifold (Extend)

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

D38804

SPARE PART Lower valve port to lift cylinder manifold (Ret.) 35" long

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

50

218-574

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

Lift cylinder manifold tubes

2шт.

51

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

Lift cylinder manifold tubes

2шт.

52

D38778

SPARE PART Lift cylinder manifold, RH (Extend)

1шт.

53

D38779

SPARE PART Lift cylinder manifold, LH (Extend)

1шт.

54

D38776

SPARE PART Lift cylinder manifold, RH (Retract)

1шт.

55

D38777

SPARE PART Lift cylinder manifold, LH (Retract)

1шт.

56

D38732

SPARE PART Lift cylinder manifold tubes

2шт.

57

D38733

SPARE PART Lift cylinder manifold tubes

2шт.

58

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

59

92-5

LOCK WASHER,5/16"

2шт.

60

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

62

D38732

SPARE PART Lift cylinder manifold tubes

2шт.

63

D38733

SPARE PART Tube clamp

1шт.

64

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

2шт.

65

92-7

LOCK WASHER,7/16"

2шт.

66

25-107

NUT,7/16"-14, G5

Hex

2шт.

67

D38792

SPARE PART To lift cylinder rear port (22" long)

2шт.

68

D38791

SPARE PART To lift cylinder front port (22" long)

2шт.

69

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

Lift cylinder rear port

2шт.

70

D38783

SPARE PART To lift cylinder front port

2шт.

71

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

Lift cylinder front port

2шт.

72

D38724

SPARE PART Lift, LH (3" dia. x 17-3/4" stroke) Parts list figure 218

1шт.

73

D38725

SPARE PART Lift, RH (3" dia. x 17-3/4" stroke) Parts list figure 218

1шт.

74

D38732

SPARE PART Lift cylinder hose

4шт.

75

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

76

92-5

LOCK WASHER,5/16"

2шт.

77

95-5

WASHER,3/8" x 7/8" x .083"

Std. wrot (5/16")

4шт.

78

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.
