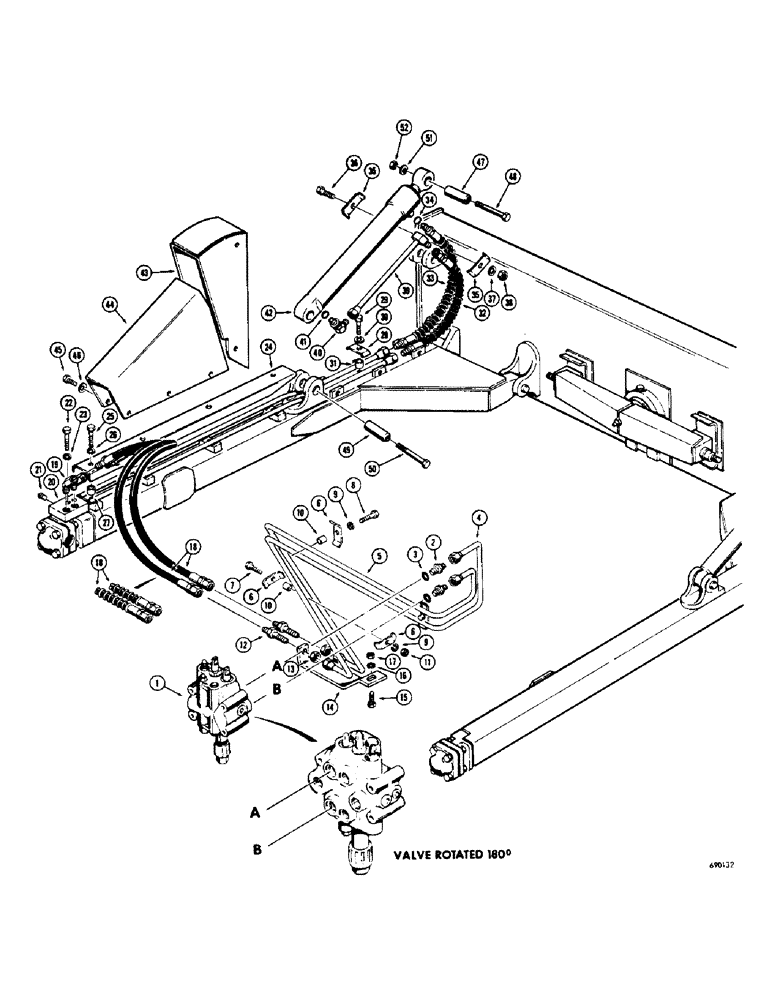

Запчасти Case 310G (178) - POWER TILT DOZER HYDRAULICS (TILT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figures 206 and 208 for proper valves

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D38162

SPARE PART Upper control valve port to tilt cylinder - rod end

1шт.

5

D38160

COMPRESSION SPRING

TUBE - lower control valve port to tilt cylinder - closed end

1шт.

6

32978

PLATE ASSY.

CLAMP - tube

4шт.

7

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

8

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

3шт.

10

D33551

BUSHING

SPACER - tube clamp

3шт.

11

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

12

50883

SPARE PART Special bulkhead

2шт.

13

25-1112

NUT,3/4"-16, G5

Hex

2шт.

14

D30602

SPARE PART Tubing

1шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

25-108

NUT,1/2"-13, G5

Hex

1шт.

18

D30603

HOSE

Bulkhead union to junction block and tube assy (21-1/4" long)

2шт.

19

D23906

ELBOW

Special, 45 degrees

2шт.

20

D28040

STEM

JUNCTION BLOCK AND TUBE ASSY

1шт.

21

221-12

PLUG,Sq Hd, 1/4"-18

Pipe

1шт.

22

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

37966

GUARD - tubing

1шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

D34003

SPARE PART Tubing guard

4шт.

28

36801

GEAR

SPARE PART CLAMP - tube

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

30

92-8

LOCK WASHER,1/2"

1шт.

31

D34003

SPARE PART Tube clamp

1шт.

32

37965

SPARE PART Inside tube of junction block and tube assy to tilt cylinder - closed end (19" long)

1шт.

33

D28212

SPARE PART Outside tube of junction block and tube assy to tilt cylinder - rod end (19" long)

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

D28020

CLAMP - tube

2шт.

36

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

Hex

1шт.

39

D28211

TUBE

Hose to tilt cylinder - closed end

1шт.

40

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

REF

INSTRUCTION

CYLINDER - tilt (See figure 224 for cylinders)

1шт.

43

39631

FLEXIBLE HOSE

GUARD - tilt cylinder, front

1шт.

44

39634

HOSE

HOSE, Guard, Tilt Cylinder, Rear

1шт.

45

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

6шт.

46

92-8

LOCK WASHER,1/2"

6шт.

47

D20188

SPARE PART Mounting, Serial Range: cylinder-blade

1шт.

48

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1шт.

49

D20149

PIN - mounting, blade to push beam

1шт.

50

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

51

92-8

LOCK WASHER,1/2"

2шт.

52

25-108

NUT,1/2"-13, G5

2шт.
