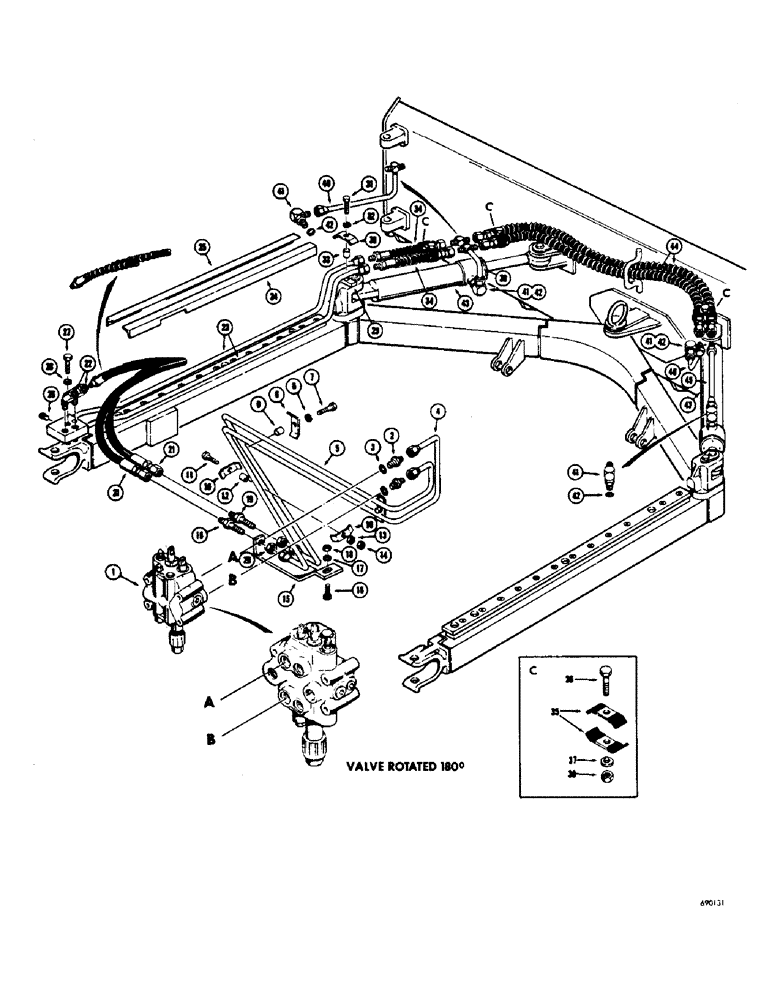

Запчасти Case 310G (172) - POWER ANGLING DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 22) See figure 206 and 208 for proper valves

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D38162

SPARE PART Upper control valve port to angling cylinder

1шт.

5

D38160

COMPRESSION SPRING

TUBE - lower control valve port to angling cylinder

1шт.

6

32978

PLATE ASSY.

CLAMP - tube

2шт.

7

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

D33551

BUSHING

SPACER - tube clamp

2шт.

10

32978

PLATE ASSY.

CLAMP - tube

2шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

12

D33551

BUSHING

SPACER - tube clamp

1шт.

13

195-21

WASHER,5/16"

Flat

1шт.

14

131-4

LOCK NUT,5/16"-18, GB

1шт.

15

D30602

SPARE PART Tubing

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

25-108

NUT,1/2"-13, G5

Hex

1шт.

19

50883

SPARE PART Special bulkhead

2шт.

20

26-1112

NUT - hex. (3/4" - 16 NF)

2шт.

21

D30603

HOSE

Tube to junction block (21-1/4" long)

2шт.

22

D23906

ELBOW

Special, 45 degrees

2шт.

23

D28039

BLOCK

JUNCTION AND TUBE ASSY

1шт.

24

39610

SPARE PART Tubing, inside

1шт.

25

39611

FINGER

GUARD - tubing, outside

1шт.

26

221-12

PLUG,Sq Hd, 1/4"-18

Pipe

1шт.

27

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

39607

SPACER - tube

1шт.

30

36801

GEAR

SPARE PART PLATE - clamp, tube

1шт.

31

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

1шт.

32

92-8

LOCK WASHER,1/2"

1шт.

33

D34003

SPARE PART Tube clamp

1шт.

34

38614

CLIP

Tube assy to LH angling cylinder (12-5/8" long)

2шт.

35

D33316

CLAMP

PLATE - hose

6шт.

36

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

3шт.

37

195-21

WASHER,5/16"

Flat

3шт.

38

131-4

LOCK NUT,5/16"-18, GB

3шт.

39

D28201

SPARE PART LH angling cylinder, rod end

1шт.

40

D28203

TUBE ASSY.

SPARE PART LH angling cylinder, closed end

1шт.

41

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male

4шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

43

REF

INSTRUCTION

CYLINDER - angling, LH (See figure 222 for cylinders)

1шт.

44

D29915

SPARE PART LH angling cylinder to RH angling cylinder (48" long)

2шт.

45

D28207

SPARE PART RH angling cylinder, rod end

1шт.

46

D28205

PIPE

TUBE - RH angling cylinder, closed end

1шт.

47

REF

INSTRUCTION

CYLINDER - angling, RH (See figure 222 for cylinders)

1шт.
