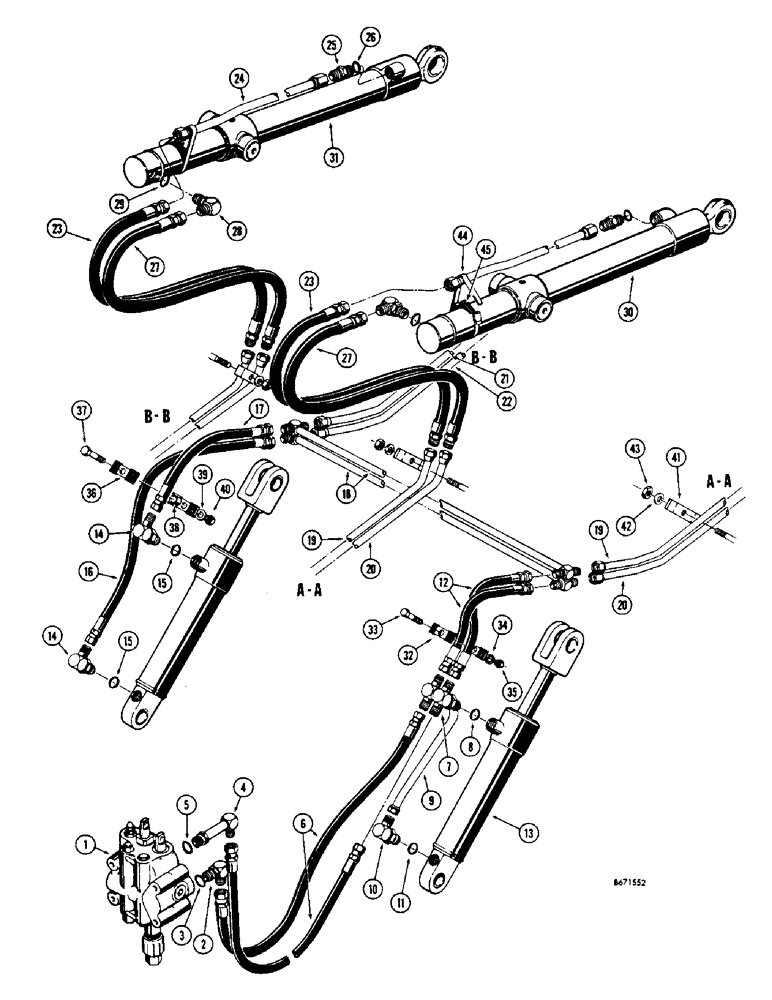

Запчасти Case 310G (152) - LOADER HYDRAULICS (HYDRA-LEVELING AND DUMP CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker series VDP 22) See figures 206 and 208

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D25136

FITTING

ELBOW - special, 90 degrees

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

D27478

HOSE ASSY.

Control valve to hydra-leveling cylinder (22" long)

2шт.

7

D28551

TEE

Male (Rod end of cylinder)

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

D35688

TUBE

Control valve to RH hydra-leveling cylinder (Closed end)

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D33346

HOSE

RH hydra-leveling cylinder to dump cylinder corssover tubes (25" long)

2шт.

13

REF

INSTRUCTION

CYLINDER - hydra-leveling (See figure 212 for cylinders)

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D37186

SPARE PART LH hydra-leveling cylinder to lower dump cylinder crossover tube (37-1/2" long)

1шт.

17

D37187

SPARE PART LH hydra-leveling cylinder to upper dump cylinder crossover tube (25" long)

1шт.

18

D36843

SPARE PART Crossover, dump cylinder

2шт.

18a

221-11

PLUG,Sq Hd, 1/8"-27

1шт.

19

D33334

TUBE ASSY.

Crossover to dump cylinder (RH upper)

1шт.

20

D33336

TUBE

Crossover to dump cylinder (RH lower)

1шт.

21

D33338

SPARE PART Crossover to dump cylinder (LH upper)

1шт.

22

D33340

SPARE PART Crossover to dump cylinder (LH lower)

1шт.

23

D33342

HYDRAULIC HOSE

Crossover to dump cylinder (Rod end) 29-1/2" long

2шт.

24

D33328

TUBE ASSY.

Crossover to dump cylinder (Rod end)

2шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

D24571

HOSE

Crossover to dump cyl. (Closed end) 30-3/4" long

2шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

CYLINDER - dump, RH (See figure 214 for cylinders)

1шт.

31

REF

INSTRUCTION

CYLINDER - dump, LH (See figure 214 for cylinders)

1шт.

32

D33316

CLAMP

PLATE, hose

2шт.

33

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

195-21

WASHER,5/16"

Flat

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

1шт.

36

D33316

CLAMP

PLATE, hose

2шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

38

D36524

BUSHING

SPACER - clamp

1шт.

39

195-21

WASHER,5/16"

Flat

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

1шт.

41

R17319

CLAMP

PLATE, tube

4шт.

42

195-21

WASHER,5/16"

Lock, hex. ( - 18 NC) 5/16"

4шт.

43

131-4

LOCK NUT,5/16"-18, GB

4шт.

44

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Tube, adjustable

2шт.

45

D38648

BLOCK

SADDLE - rubber

2шт.
